64

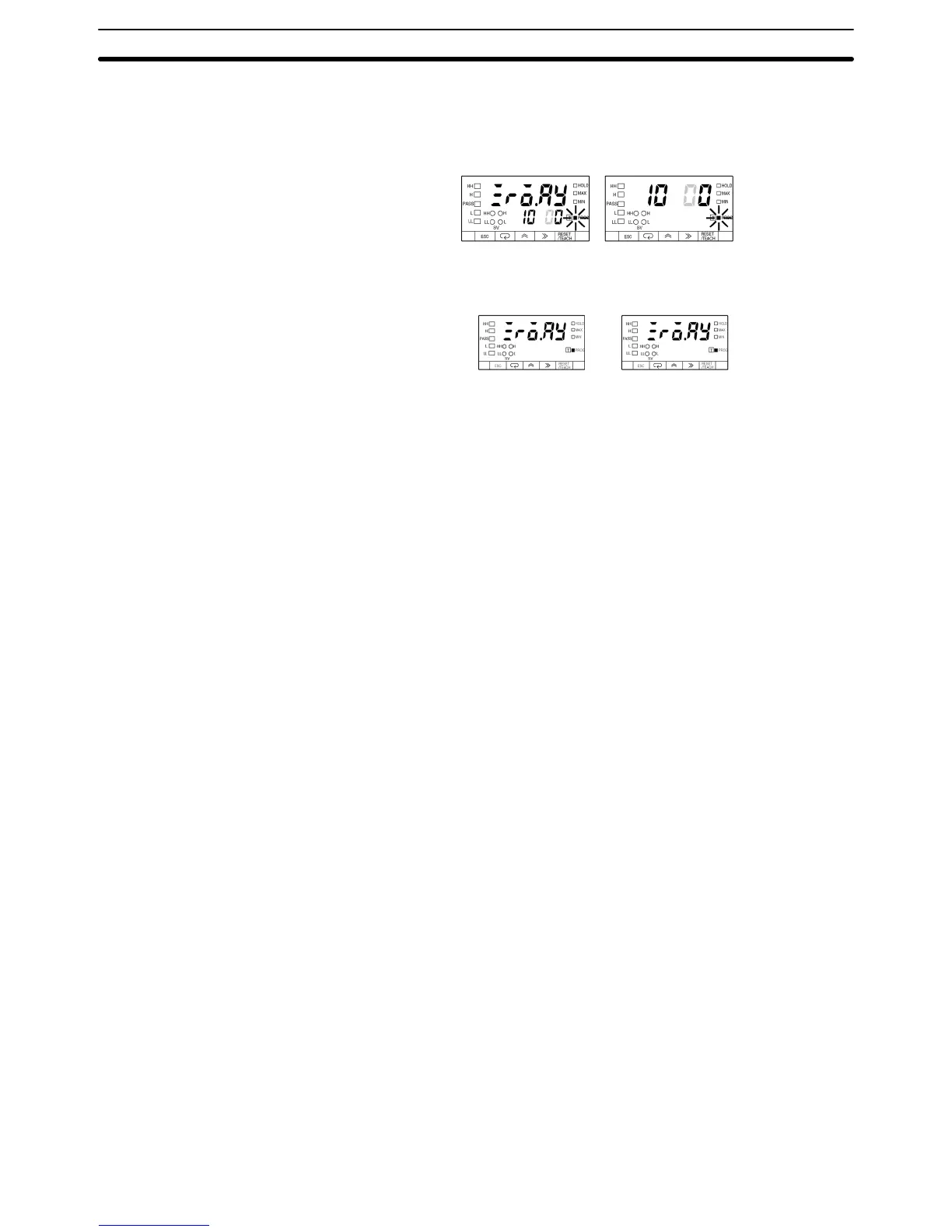

Note
Press
the Mode Key to enter the set value immediately
. The auto zero
time of input B X (mantissa) setting will be displayed for setting the
next parameter
.
Set V
alue LED Display Model
Basic Model
8.
Press the Escape Key to display the
setup
setup menu.
Set V
alue LED Display Model
Basic Model
Setting Mode
Section 4-2
71
73
