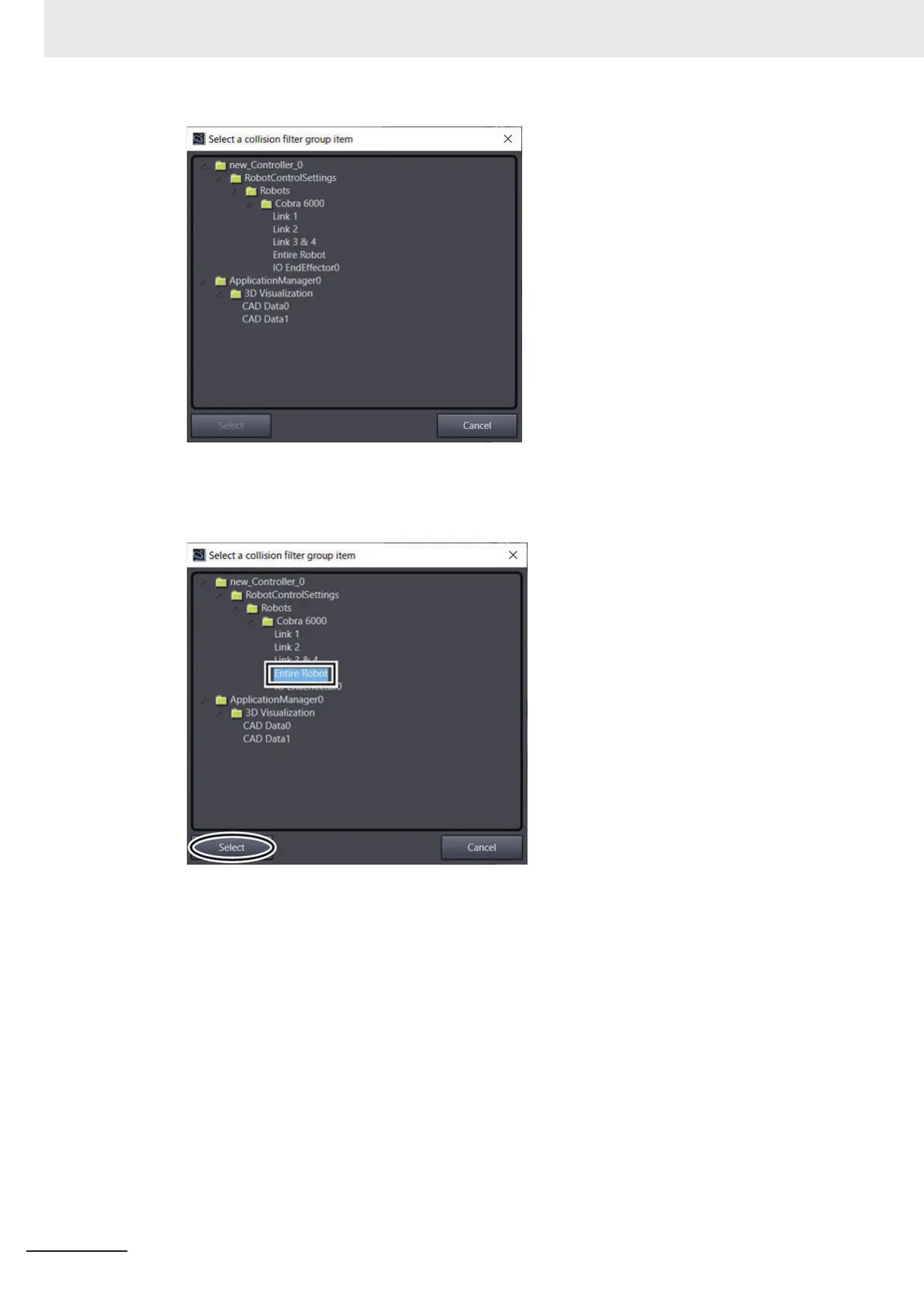

7 Select new_Controller_0 - RobotControlSettings - Robots - Cobra 6000 - Entire Robot in
the tree, and then click the Select button.
The Select a collision filter group item dialog box closes and the Scene Graph dialog box is
displayed again. * Entire Robot is registered as the Collision Filter Group Items for Group0
- [0].
3 Implementation Example of Static Pick-and-place Equipment
3-52
NJ-series Robot Integrated System Startup Guide (O049)
