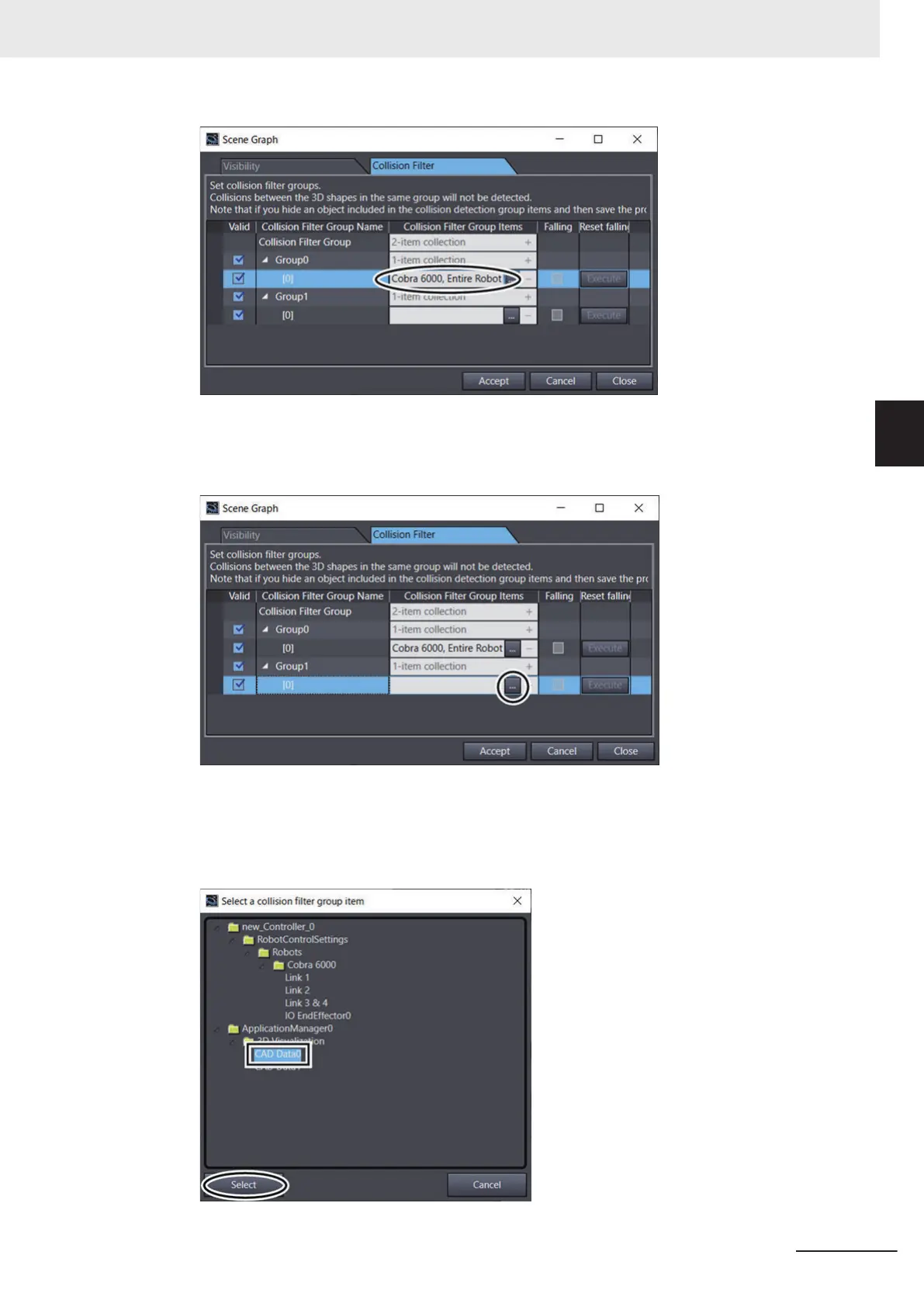

8 Click the ... button in the Collision Filter Group Items column whose Collision Filter Group
Name is Group1 - [0].
The Select a collision filter group item dialog box is displayed.
9 Select ApplicationManager0 - 3D Visualization
- CAD Data0 from the tree, and then click the
Select button.
3 Implementation Example of Static Pick-and-place Equipment
3-53
NJ-series Robot Integrated System Startup Guide (O049)
3-3 Programming and Simulation Procedures
3
3-3-5 Placing 3D Shape Data
