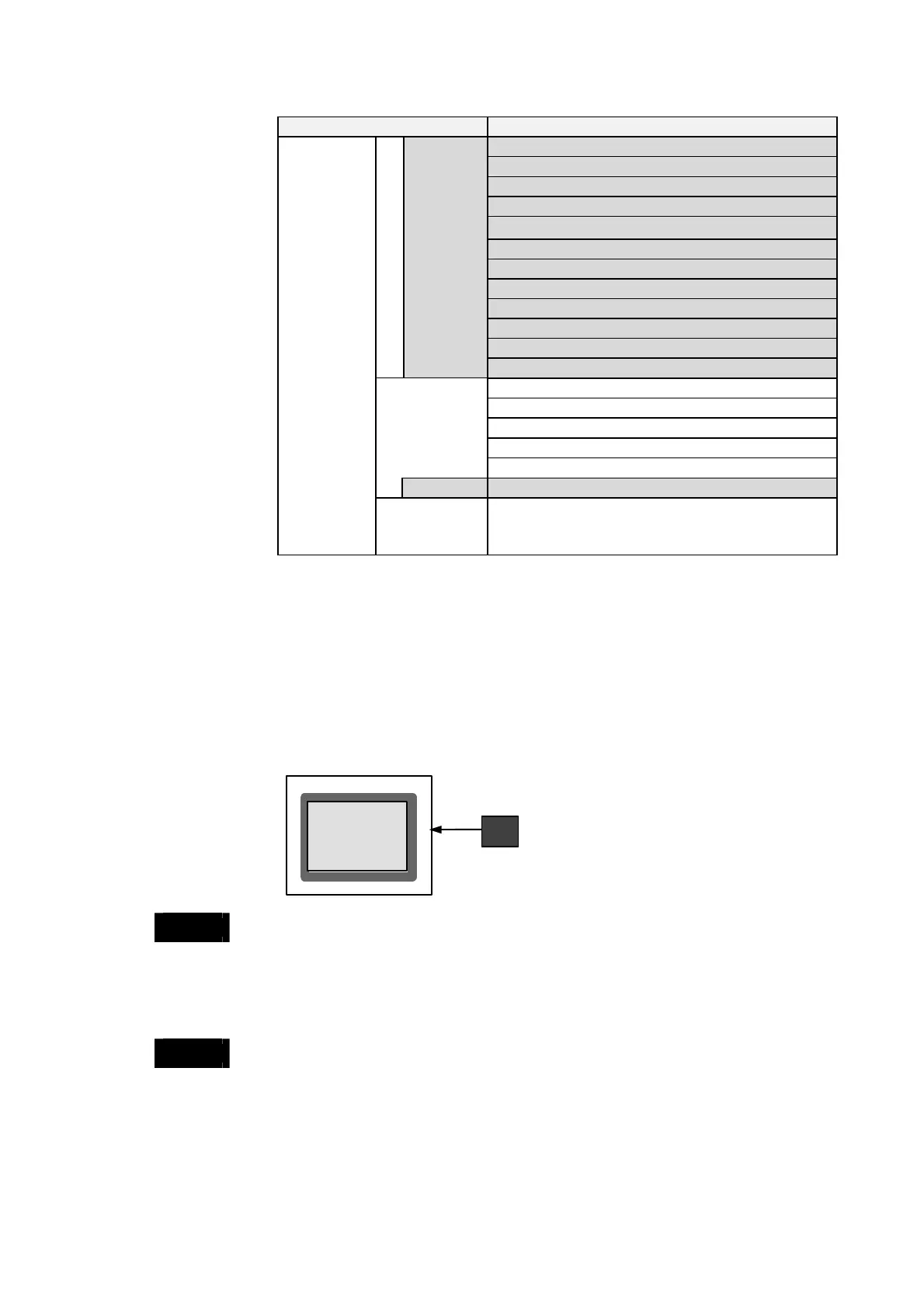

2-1 Starting the Ladder Monitor
31
Folder name File name
Aptvmod
Attr
Checklist
Dir
FONTS
Grep
Plcmon
Procs
Winmgr
Plcmon_E
Plcmon_J
\ldrmt_v1
Spydidmn
Procon
Pbtc_4832_0101
Pbts_4832_0101
Plcd_1616_0102
\procon
Plcd_1616_0202
\procon_v1 Procon
F:
\ldrdata
This folder is empty by default. Store the I/O comment file
(G-
@
.ioc and L-
@
.ioc) created using the I/O Comment
Extracting Tool in this folder.
Note 1: There must be 6.2 MB or more of free space in addition to the space required for the I/O
comment file in the Memory Card to use the Ladder Monitor.
Note 2: The following are supported: Pre-version-1 NS-series PTs, version-1 NS-series PTs,
version-2 NS-series PTs, and NSJ Controllers.
Note 3: When using pre-version-1 NS-series PTs, shaded folders and files in the table do not need
to be copied to the Memory Card.
2. Turn OFF the power to the PT and place the Memory Card in the connector at the back
of the PT.
NS-series PT
Memory Card
Note
• Before inserting or removing the Memory Card, make sure that the PT is turned OFF.
• Confirm system safety before turning the power ON/OFF or resetting. Otherwise, the
system may operate unpredictably.
• Do not turn OFF the power supply and do not remove the Memory Card when the
Memory Card is being read or written.
Note
The Ladder Monitor has been built into the system program for version-2 NS-series
PTs and NSJ Controllers with system version 6.6 or higher (except for the NS5-V2 and
NSJ5), and a Memory Card is thus not required.
To Next Page
