3-3 Displaying the Desired Program Section
3-3-11 Jumping from a PT User Screen to Where an Alarm Occurs
59
search will be performed for
the address set for the
selected alarm/event.
•
Starting the Ladder Monitor from the Alarm/Event Summary and History
Setting Procedure
1. Open the PT System Menu and press the PT Settings Tab to display the PT Settings
Tab Page.
2. Set Start up Ladder Monitor from Alarm/Event Summary & History to ON.
3. Press the Write Button, and then exit the System Menu.
Operations on the PT Screen
1. From the Alarm/Event Summary and History, select the alarm/event that is to be
searched for.
2. A message will be displayed to confirm that the Ladder Monitor is to be started.
Select the button for starting the Ladder Monitor. (The content of the message will
depend on the Alarm/Event Summary and History settings.)

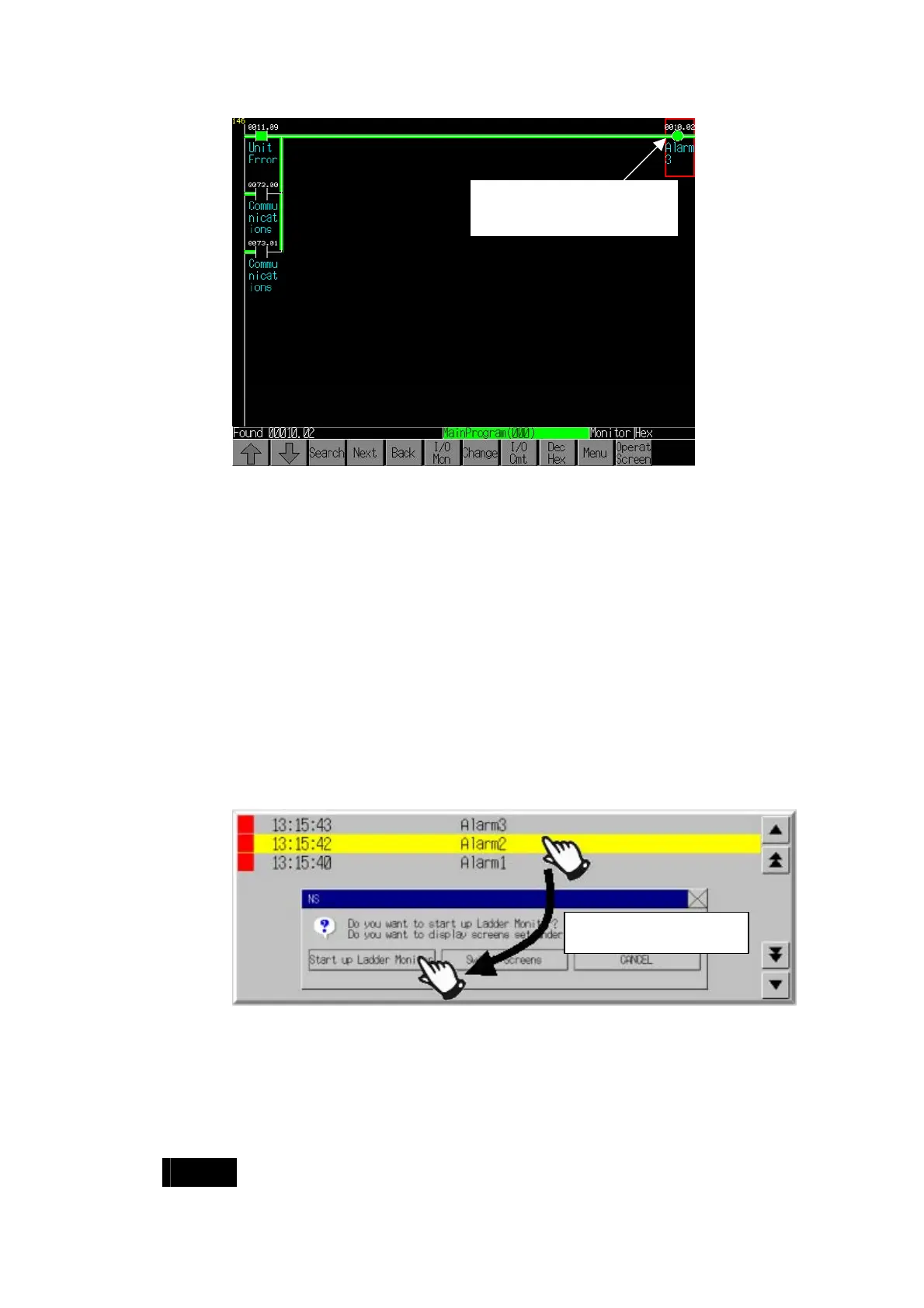

Select an alarm and start
the Ladder Monitor.
3. The Ladder Monitor will start, and a search will be automatically performed for the
program section using the address output set for the alarm/event.
For details on System Menu settings and message contents, refer to Starting the Ladder
Monitor from the Starting from the Alarm/Event Summary and History on page 34.
Note
• When jumping to where an alarm occurred, place the Alarm/Event
Summary and History on the base screen and the popup screen.
To Next Page
