172
Transmitting the Screen Data
Section 6-6

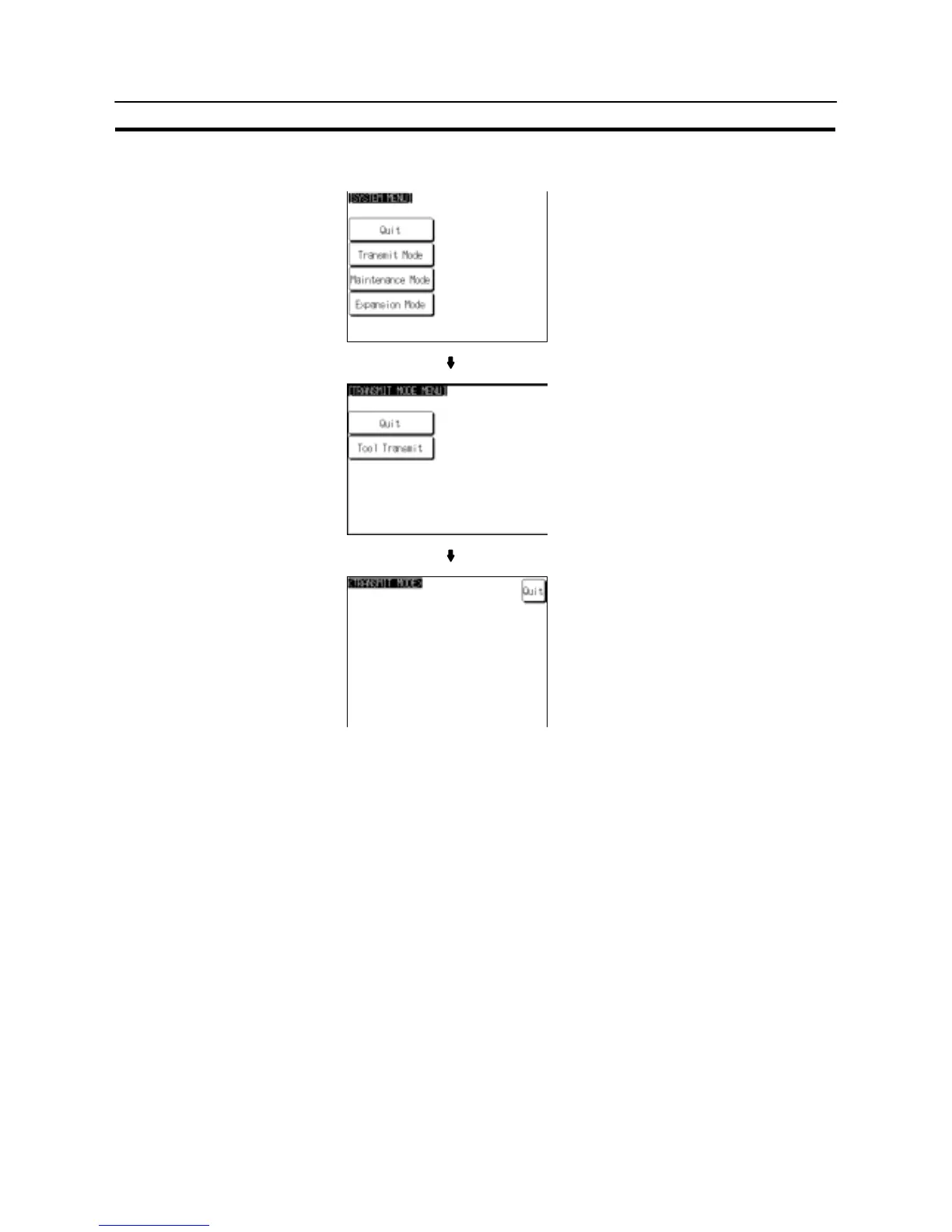

3 Establish the Transmit mode by following the menu operation from the System
Menu shown below at the NT31/NT31C.
Select “Transmit Mode”.
Select “Tool Transmit”.
4 Open the screen data to be transmitted at the Support Tool, then select “Down-
load (NTST → PT)” in the Support Tool’s “Connect” menu and specify the data
to be transmitted.
5 During screen data transmission, the transmission status is displayed.
6 On completion of screen data transmission, press the “Quit” touch switch. The
NT31/NT31C returns to the Transmit mode.
If the screen data cannot be successfully transmitted from the Support Tool, use
the communication check functions of the NT31/NT31C to check if communica-
tion between the NT31/NT31C is normal or not (page 236).
