303
Fixed Displays
Section 7-4
- Display attribute and drawing result

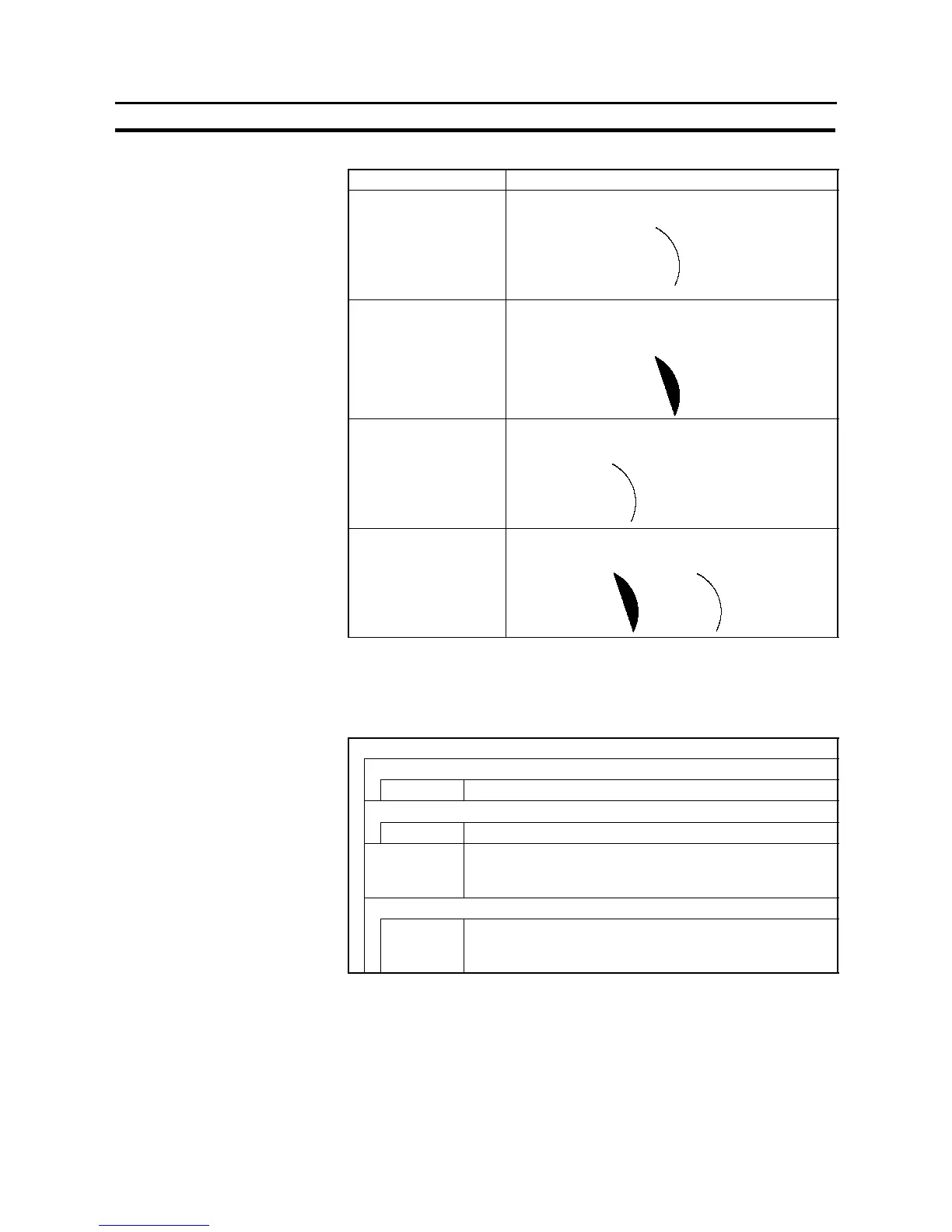

Attribute Drawing Result
Standard Only the line of the arc is drawn in the foreground color.
Inverse The area enclosed by the arc and a straight line drawn
between its start and end points is displayed in the
foreground color.
Flash Repeated alternation between “standard” display and
no display.
!
No display
Inverse Flash Repeated alternation between “inverse” and “standard”
display.
!
S Circle
The relationship between the properties of a circleand the displayed graphicare
indicated below.
- Properties
General
Position
Center point Coordinates of the center of the circle
Size
Radius Radius of the circle (dot units)
Attribute Display mode for the circle (“Display attribute and drawing
result”, page 304).
Standard/Inverse/Flash/Inverse Flash
Color
Foreground Display color of the circle (colors other than black and white
featured with NT31C only)
Black/Blue/Red/Magenta/Green/Cyan/Yellow/White
