304
Fixed Displays
Section 7-4
The line style is fixed as “solid line” and thickness is fixed as one dot.

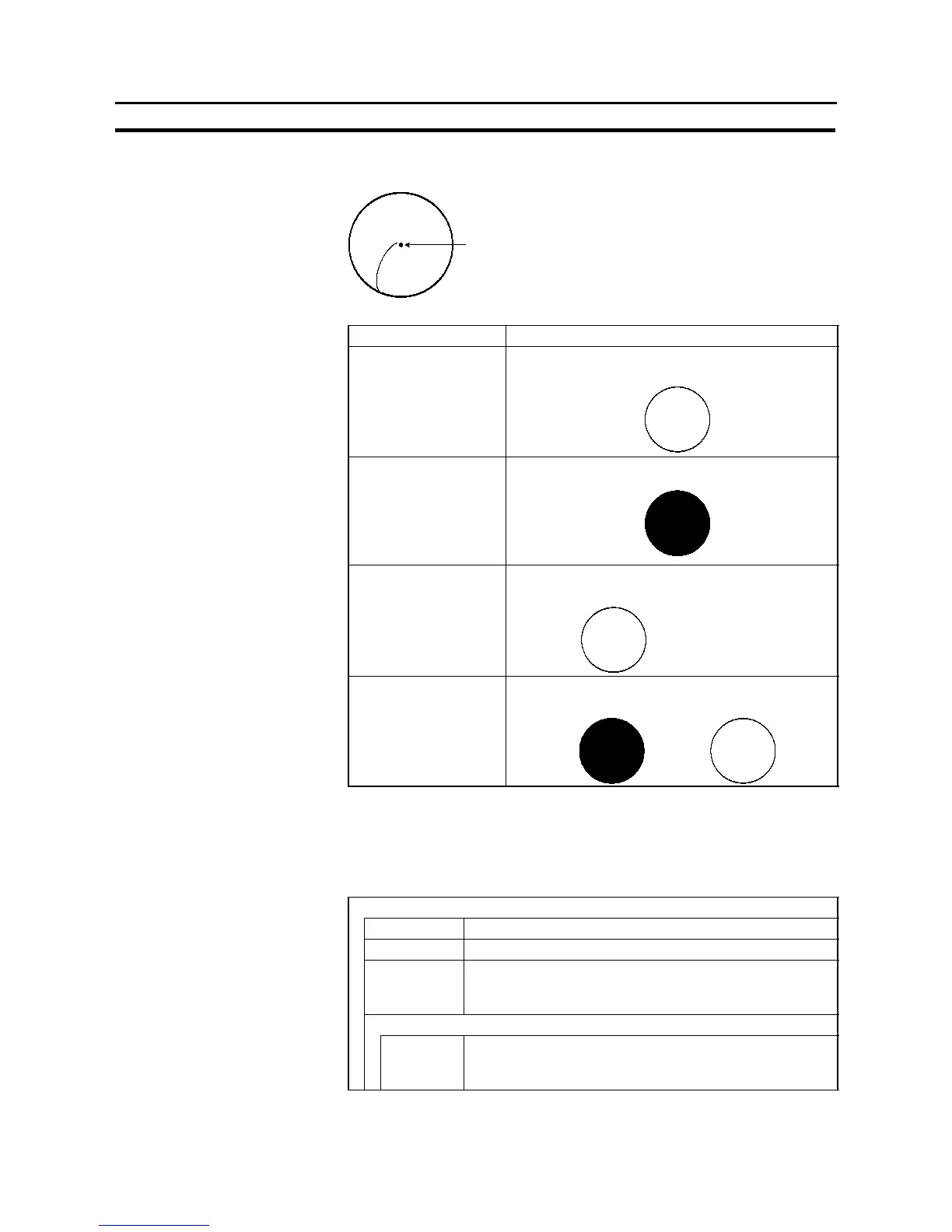

At the Support Tool, the center point and radius are specified as shown below.
Center point
Radius
- Display attribute and drawing result
Attribute Drawing Result
Standard Only the line of the circle periphery is drawn in the
foreground color.
Inverse The entire circle is displayed in the foreground color.
Flash Repeated alternation between “standard” display and
no display.
!
No display
Inverse Flash Repeated alternation between “inverse” and “standard”
display.
!
S Rectangle
The relationship between the properties of a rectangle and the displayed graphic
are indicated below.
- Properties
General
Position Coordinates of the top left vertex of the rectangle
Size Width and height of the rectangle (dot units)
Attribute Display mode for the rectangle (“Display attribute and drawing
result”, page 305).
Standard/Inverse/Flash/Inverse Flash
Color
Foreground Display color of the rectangle (colors other than black and
white featured with NT31C only)
Black/Blue/Red/Magenta/Green/Cyan/Yellow/White
The line style is fixed as “solid line” and thickness is fixed as one dot.
To Next Page
