309
Fixed Displays
Section 7-4

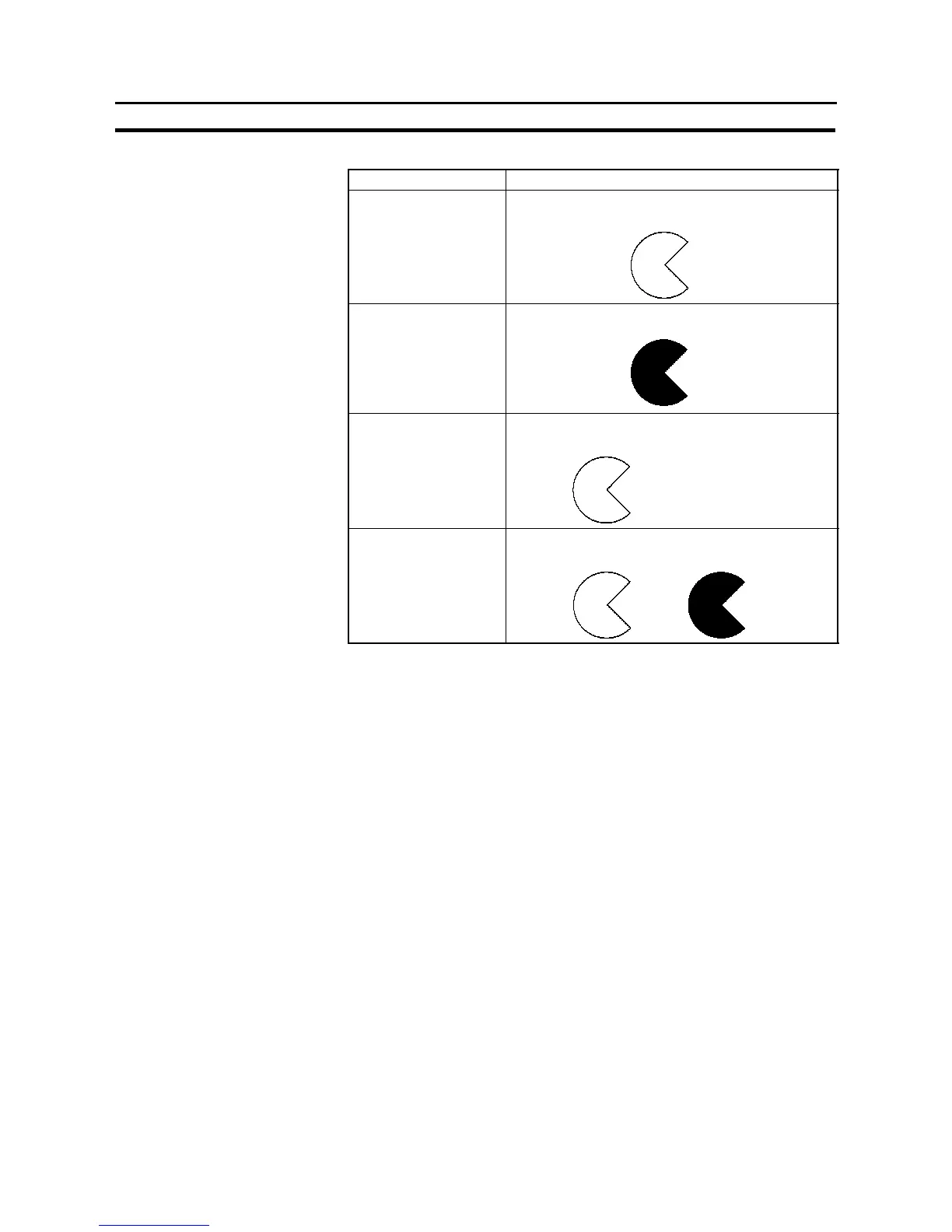

- Display attribute and drawing result
Attribute Drawing Result
Standard
Only the boundary line of the sector is drawn in the
foreground color.
Inverse The entire sector is displayed in the foreground color.
Flash Repeated alternation between “standard” display and
no display.
!
No display
Inverse Flash Repeated alternation between “inverse” and “standard”
display.
!
[Input Functions]
There are no input functions for circles, arcs, sectors, polylines, polygons, or rec-
tangles.
[Output Functions]
There are no output functions for circles, arcs, sectors, polylines,polygons, or rec-
tangles.
[Processing Functions]
There are no data processing functions for circles, arcs, sectors, polylines, poly-
gons, or rectangles.
[Relationship with Other Elements]
S When tiling is used, an area enclosed by a continuous solid line can be tiled with
the specified pattern (page313). However,if the line is broken at any point, or if it
flashes or is deleted, the tiling pattern will cover the area outside the line as well.
Tiling will also spread outside the intended boundaryline, inaccordance with the
display order, if it is displayed before the boundary line.
S It is possible to make a single library data display by combining multiple fixed
display elements. If the display attribute for any of the elements insuch a display
is “Flash” or “Inverse Flash”, the display flashes in accordance with this setting.
S The timing of the flashing is the same for all elements.
S Both text (page 310) and mark (page 315) fixed displays will overlap each other
in accordance with the order in which they were created. However, the way in
which they overlap can be changed with the Support Tool.
To Next Page
