308
Fixed Displays
Section 7-4

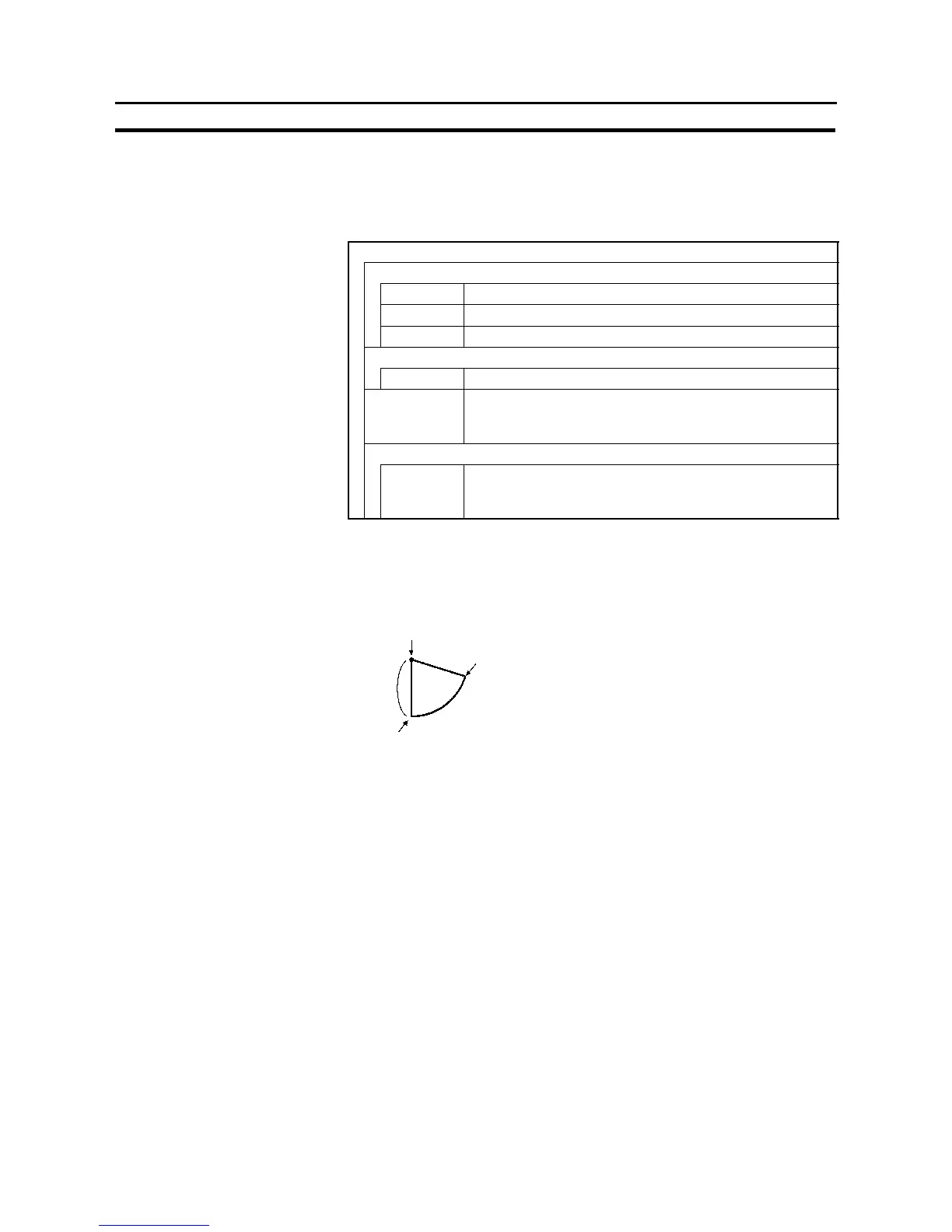

S Sector
The relationship between the properties of a sector and the displayed graphic
are indicated below.
- Properties
General
Position
Center point Coordinates of the circle that includes the sector.
Start point Coordinates of the start point of the sector
End point Coordinates of the end point of the sector
Size
Radius Radius of the circle including the sector (dot units)
Attribute Display mode for the sector (“Display attribute and drawing
result”, page 309).
Standard/Inverse/Flash/Inverse Flash
Color
Foreground Display color of the sector (colors other than black and white
featured with NT31C only)
Black/Blue/Red/Magenta/Green/Cyan/Yellow/White
The line style is fixed as “solid line” and thickness is fixed as one dot.
At the Support Tool, specify the center point, start point, and end point, as
shown in the figure below. The radius is automatically set in accordance with
the start point setting.
End point
Center point
Start point
Radius
