Image and Library Data
Section 7-5
[Display Functions]

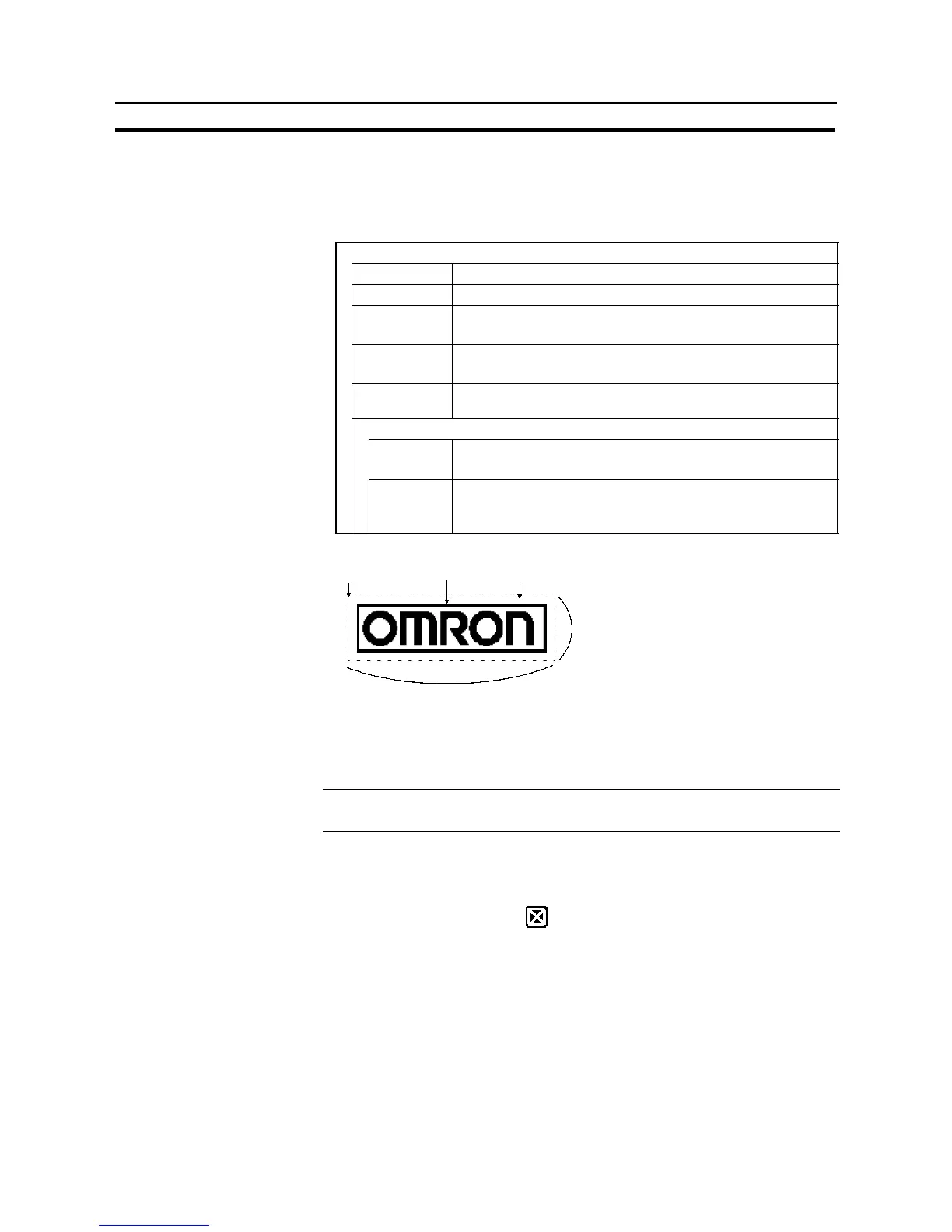

The properties of image data and their relationship with the method of display are
indicated below.
S Properties
General
Position Coordinates of the top left corner of the image data
Size Size of the image data
Code Image/library code of the image data
0001 to 0FFF
H
Mode Color mode of the image data (specified with the image editor)
2 Colors/8 Colors
Comment Comment assigned to the image data
(specified with the image data)
Color (for NT31C, only valid when “2 Colors” is set for “Mode”.
Foreground Display color of the image data
Black/Blue/Red/Magenta/Green/Cyan/Yellow/White
Background Background color of the image data
Black/Blue/Red/Magenta/Green/Cyan/Yellow/White/
Transparent
Position
(top left corner
of image data)
Foreground
color
Background
color
Size (Y direction)
Size (X direction)
The blank area specified during creation of
the image data is also included in the size.
If there is a blank area surrounding the image data, this is also included in the
image. Bear this in mind when specifying a background color in the “2 Colors”
mode.
Reference:
When color data is pasted to “2 Colors” mode image data, all the colors except
black become white.
S When an unregistered code is specified
When a code for which no image data is registered is specified, the symbol indi-
cating an unregistered code (
) is displayed on the Support Tool, but on the
NT31/NT31C nothing is displayed.
[Input Functions]
Image data have no input function.
[Output Functions]
Image data have no output function.
[Processing Functions]
Image data have no data processing function.
