Image and Library Data
Section 7-5
[Display Functions]

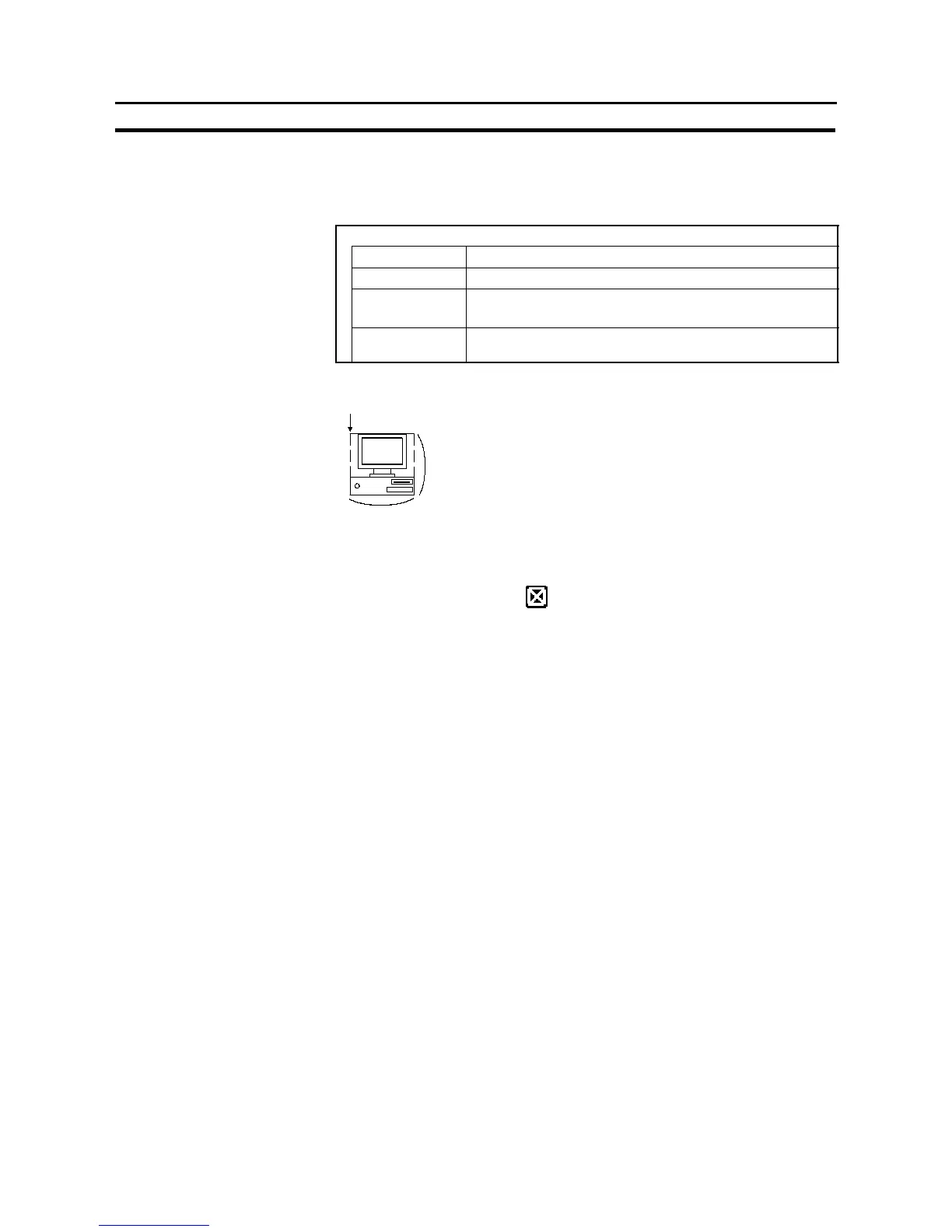

The properties of library data and their relationship with the method of display are
indicated below.
S Properties
General
Position Coordinates of the top left corner of the library data
Size Size of the library data
Code Image/library code of the library data
1000 to 3FFF
H
Comment Comment allocated to the library data
(specified with the library editor)
Size (X direction)
Position (top left corner of library data)
Size (Y direction)
S When an unregistered code is specified
When a code for which no library data is registered is specified, the symbol indi-
cating an unregistered code (
) is displayed on the Support Tool, but on the
NT31/NT31C nothing is displayed.
[Input Functions]
Library data have no input function.
[Output Functions]
Library data have no output function.
[Processing Functions]
Library data have no data processing function.
[Relationship with Other Elements]
S Difference between image data and library data
Image data can take any form for it is composed of dots, but library data can only
be created by assembling fixed display text and graphics.
Since only drawing information for characters and graphics is registered for li-
brary data, library data requires little memory area in comparison with image
data, which requires all the dots to be displayedon the screen to be registered as
data.
Another difference is that “flash” and “inverse” display are not possible for image
data, but library data can be displayed in these modes in accordance with the
display attributes of the registered elements. The timing of the flashing is the
same for all elements.
S It is possible to specify different image/library data for the graphic displayed
when a lamp (image/library lamp) is ON and OFF (page 326).
