Section 7-6
Whether a lamp lights continuously or flashes when the lamp bit is set to “1”
(ON) is determined by the “ON Type” attribute.
Note that the display when the lamp is ON or flashing also changes according
to the presence or absence of a frame.
When there is a frame: The frame is always displayed.
When there is no frame: The lamp may be invisible when it is OFF
depending on the OFF color.

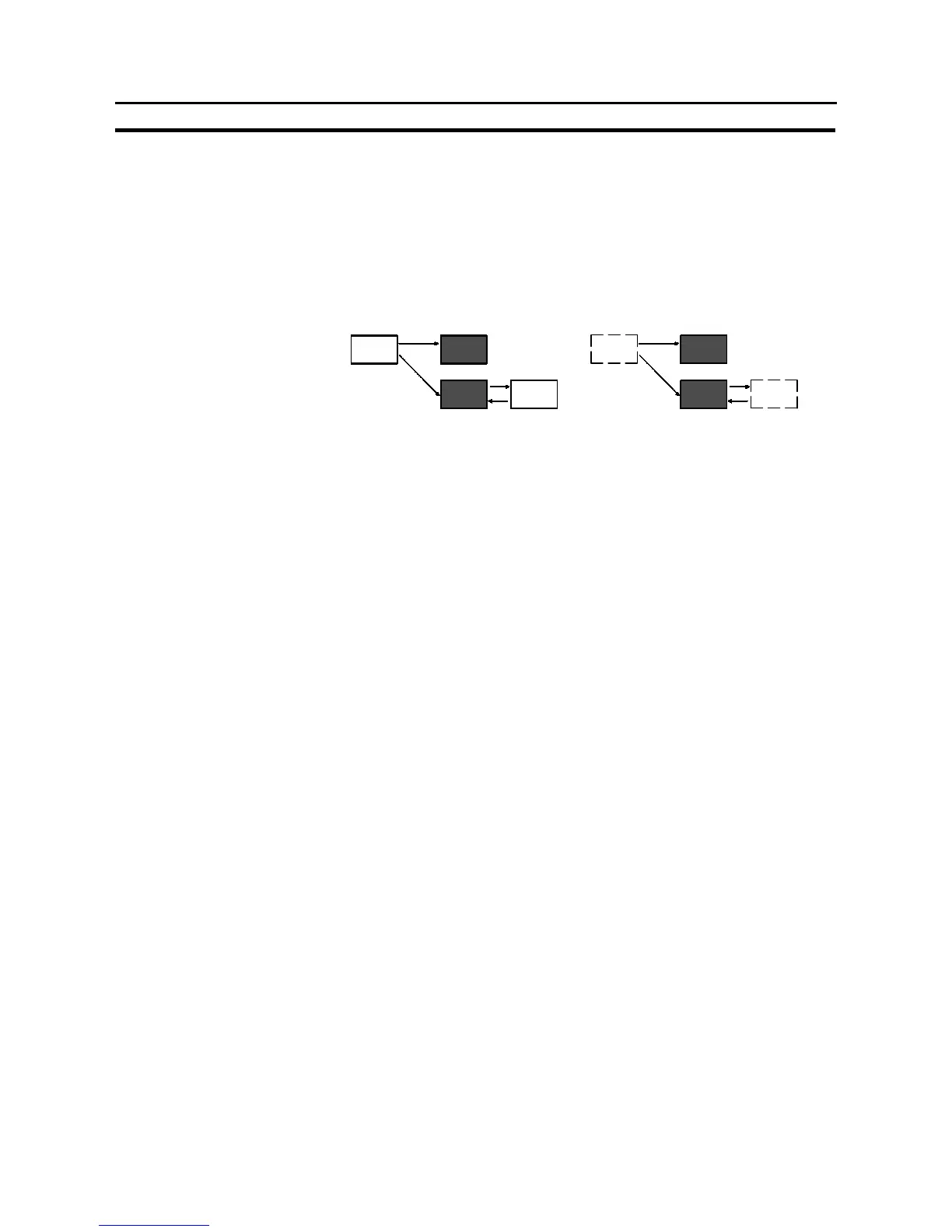

[When there is a frame display] [When there is no frame display]
(OFF)
Light
Flash
Onlytheareainside
the frame flashes.
(OFF)
Lamp alternates
between displayed and
not-displa
ed states.
Light
Flash
- To change labels
The labels of normal (standard) lamps are fixed display text. Tomake the label
change in accordance with the conditions, create an image/library lamp and
register different image/library data for its OFF and ON states.
S Image/library lamps
The relationship between the properties of an image/library lamp and the dis-
played graphic are indicated below.
- Properties
