375
Graphs
Section 7-10
S Incremental direction of bar graphs

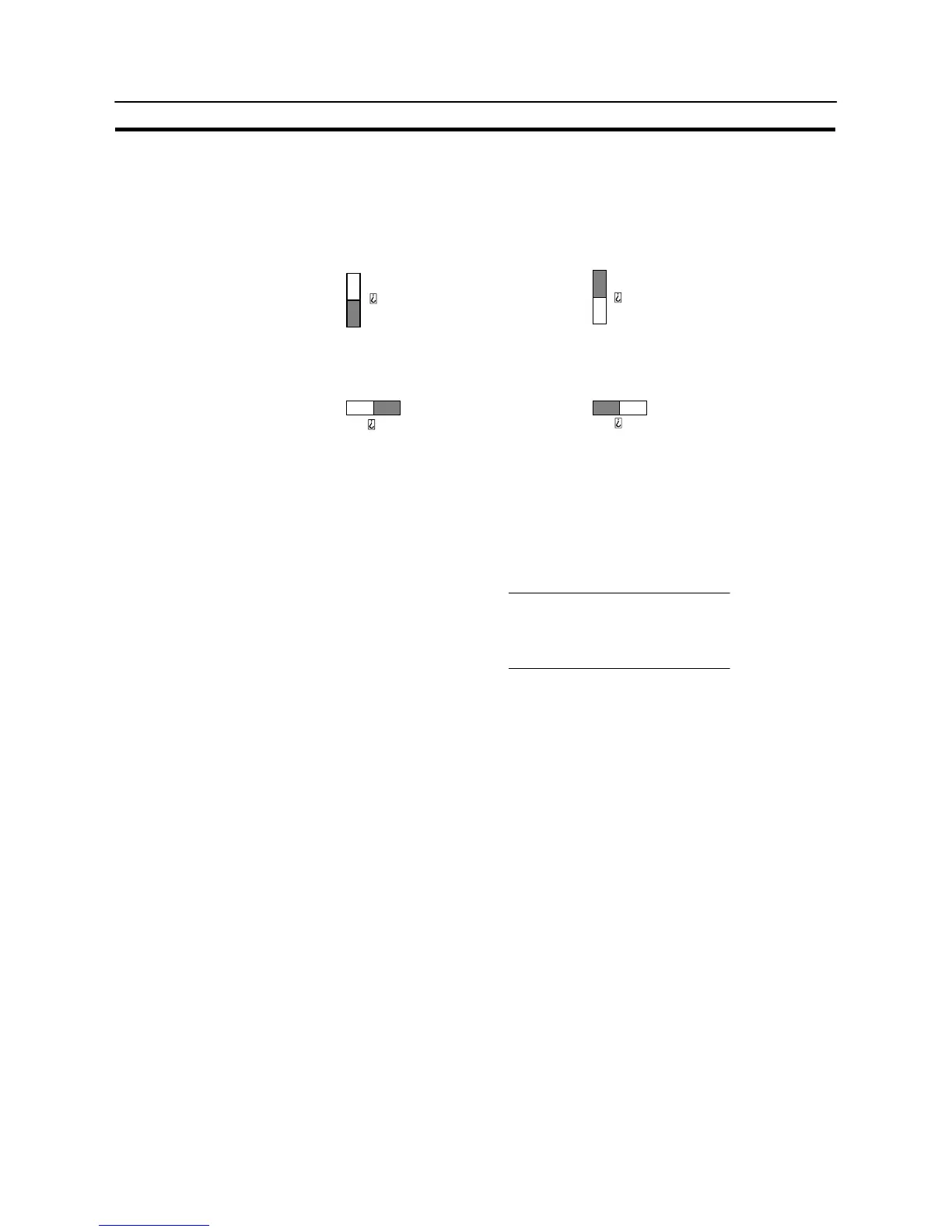

The incremental directions of the bar graph depending on the setting made for
“Direction” are shown below (applies only when no check mark is set for “Display
Sign”).
“Up”: “Down”:
The bar graph increments upward. The bar graph increments downward.
“Left”: “Right”:
The bar graph increments to the left. The bar graph increments to the right.
Direction Direction
Direction Direction
S Method for calculating the percentage value
The percentage value is calculated as follows, depending on whether it is larger
or smaller than the “0%” value.
- When displayed numeric value “0%”, and when no check mark is set for
“Display Sign”:
Percentage value =
[100%] − [0%]
Displayed numeric value − [0%]
100
- When displayed numeric value < “0%”:
Percentage value =
[0%] − [−100%]
Displayed numeric value − [0%]
100
To Next Page
