Graphs
Section 7-10
Even if the specified value was in an allowable range, it is discarded when an ana-
logue meter sticks out of the screen with the specified value.
Reference - It is not possible to specify a character attribute and transparent background for
a percentage display.
- It is possible to specify a double width font type for a percentage display.

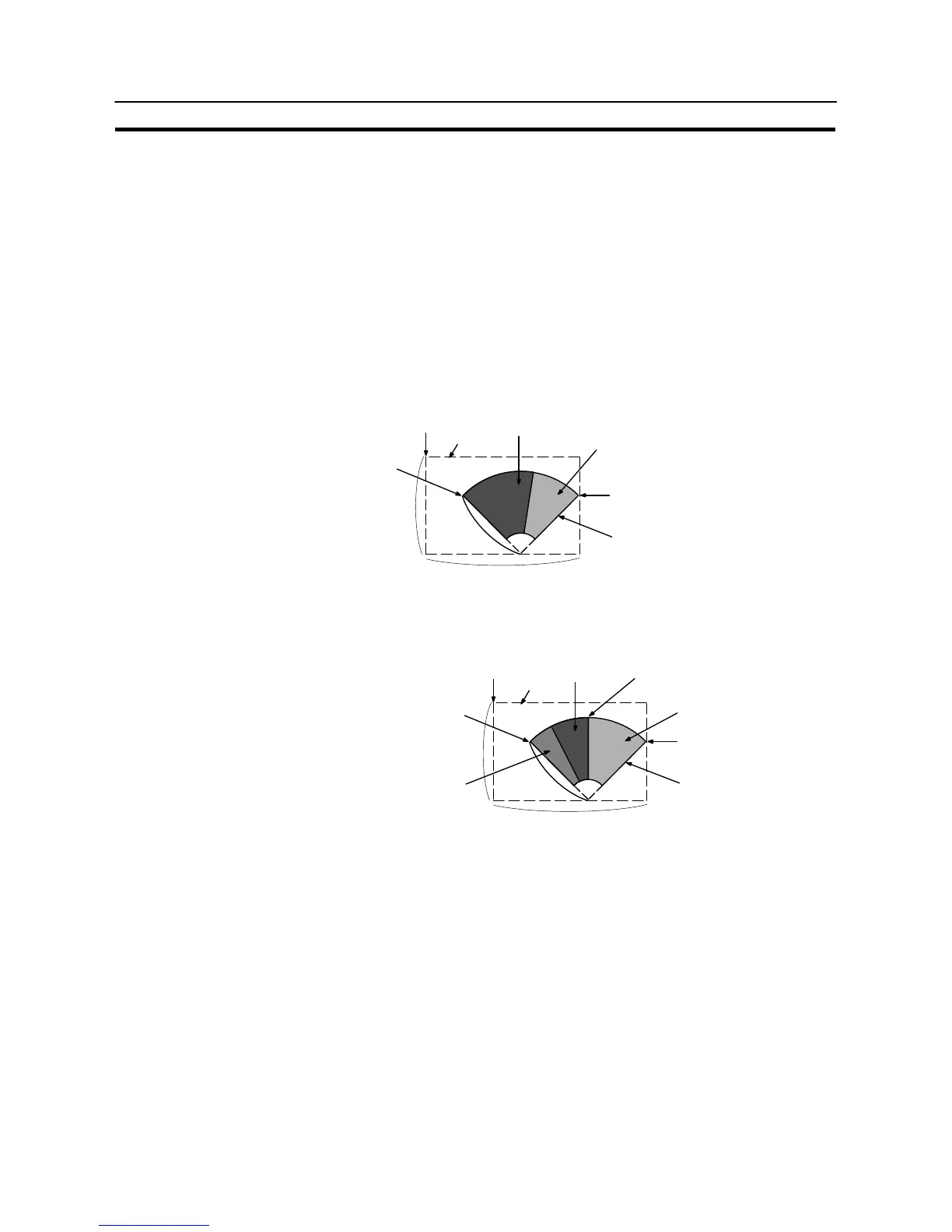

S Resulting display
<Example> Resulting display of quarter shape analogue meter
<When no check mark is set for “Display Sign”>
Position
(Upper left corner of the
rectangular display enclosing
a graph and percentage
Percentage
Meter display color
Area display color
100%
Border color
0%
Size
Radius
(Y-axis)
Size (X-axis)
60%
<When a check mark is set for “Display Sign”>
Position
rectangular display enclosing
a graph and percentage
Percentage
+Area display color
100%
Border color
0%
Size
Radius
(Y-axis)
Size (X-axis)
(Upper left corner of the
Meter display
color
- Area display color
S Incremental direction of analogue meters
The incremental directions of the analogue meter depending on the setting
made for “Meter Shape”, “Display Direction” and “Meter Direction” are shown
below.
