Omron NT31 User Manual

382
Graphs
Section 7-10

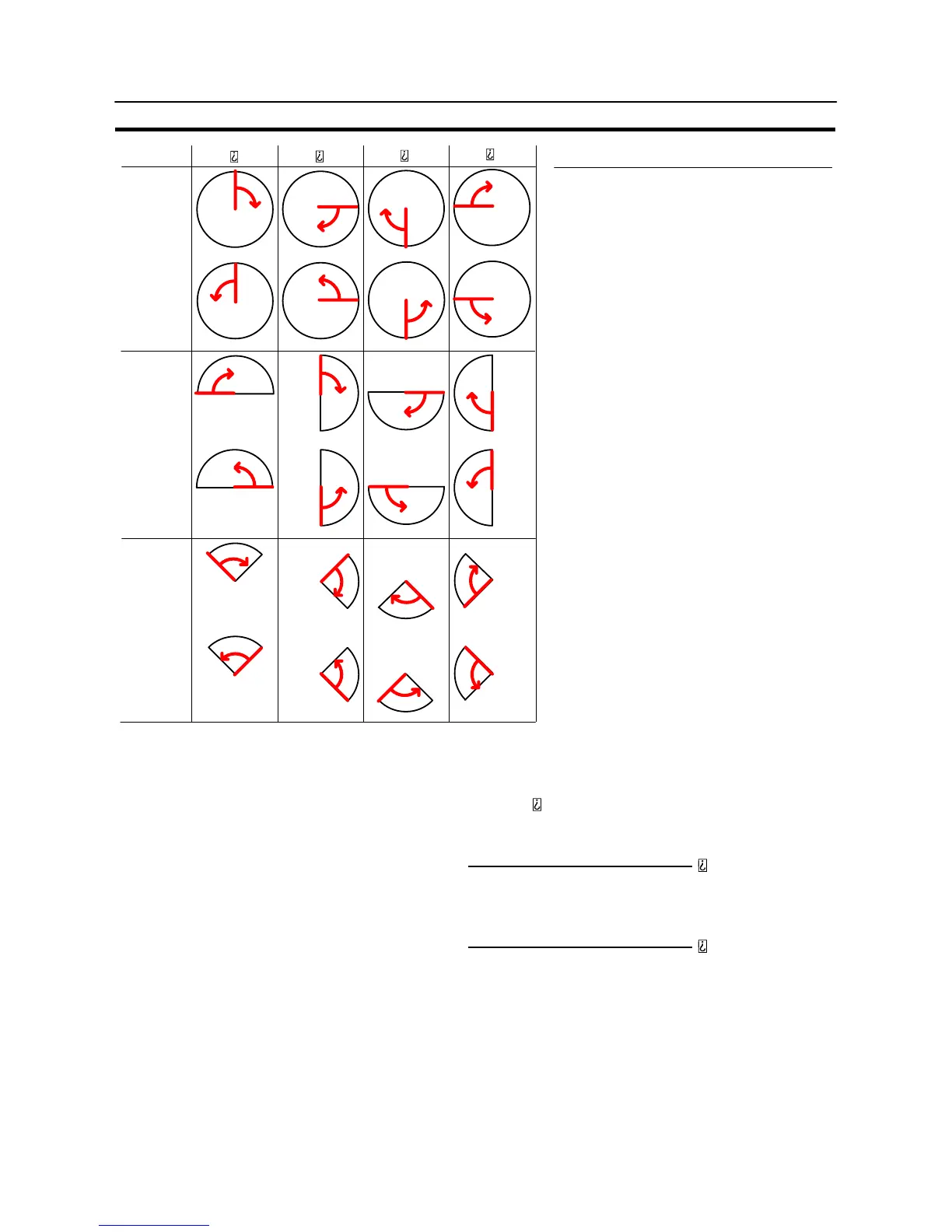

Clockwise
Anti–Clockwise
Semi-Circle
Quarter
Circle
Clockwise
Clockwise
Clockwise
Anti–Clockwise
Anti–Clockwise
Anti–Clockwise
Clockwise
Cloc-
kwise
Clockwise
Cloc-
kwise
Anti–Clockwise
Anti–
Clockwise
Anti–Clockwise
Anti–
Clockwise
Clockwise
Clockwise
Clockwise
Clockwise
Anti–Clockwise
Anti–
Clockwise
Anti–Clockwise
Anti–
Clockwise
0% position
0% position is determined by me-
ter direction. It is not influenced by
display direction.
With a display sign: 0% position comes at the
center of the meter.
(Dotted line position in the figure)
No display sign (positive value only):
Clockwise = 0% position comes at
the left side of the
meter.
Anti–Clockwise= 0% position comes at
the right side of the
meter.
(Bold line position in the figure)
With a display sign: 0% position comes at the
center of the meter
(Dotted line position in the figure)
No display sign (positive value only):
Clockwise= 0% position comes at
the left side of the meter
Anti–Clockwise= 0% position comes at
the right side of the
meter
(Bold line position in the figure)
S Method for calculating the percentage value
The percentage is calculated as follows, depending on whether it is larger or
smaller than the ”0%” value.
When displayed numeric value mark is set for “Dis-
play Sign”:
Displayed numeric value - [0%]
Percentage value =
[100%] - [0%]
When displayed numeric value<“0%”:
Displayed numeric value - [0%]
Percentage value =
[0%] - [-100%]
S Display Sign
Circle
When “Display Sign” is ON, center position of the meter (It depends on “Display
Sign”) will be 0%, and the each end side corresponds to 100% and –100%.
- When the value is more than 100%, it will be displayed same as 100%.
- When the value is less than –100%, it will be displayed same as –100%.
When “Display Sign” is OFF, 0% position and 100% position will be the same.
- When the value is less than 0%, it will be displayed same as 0%.
