Graphs
Section 7-10

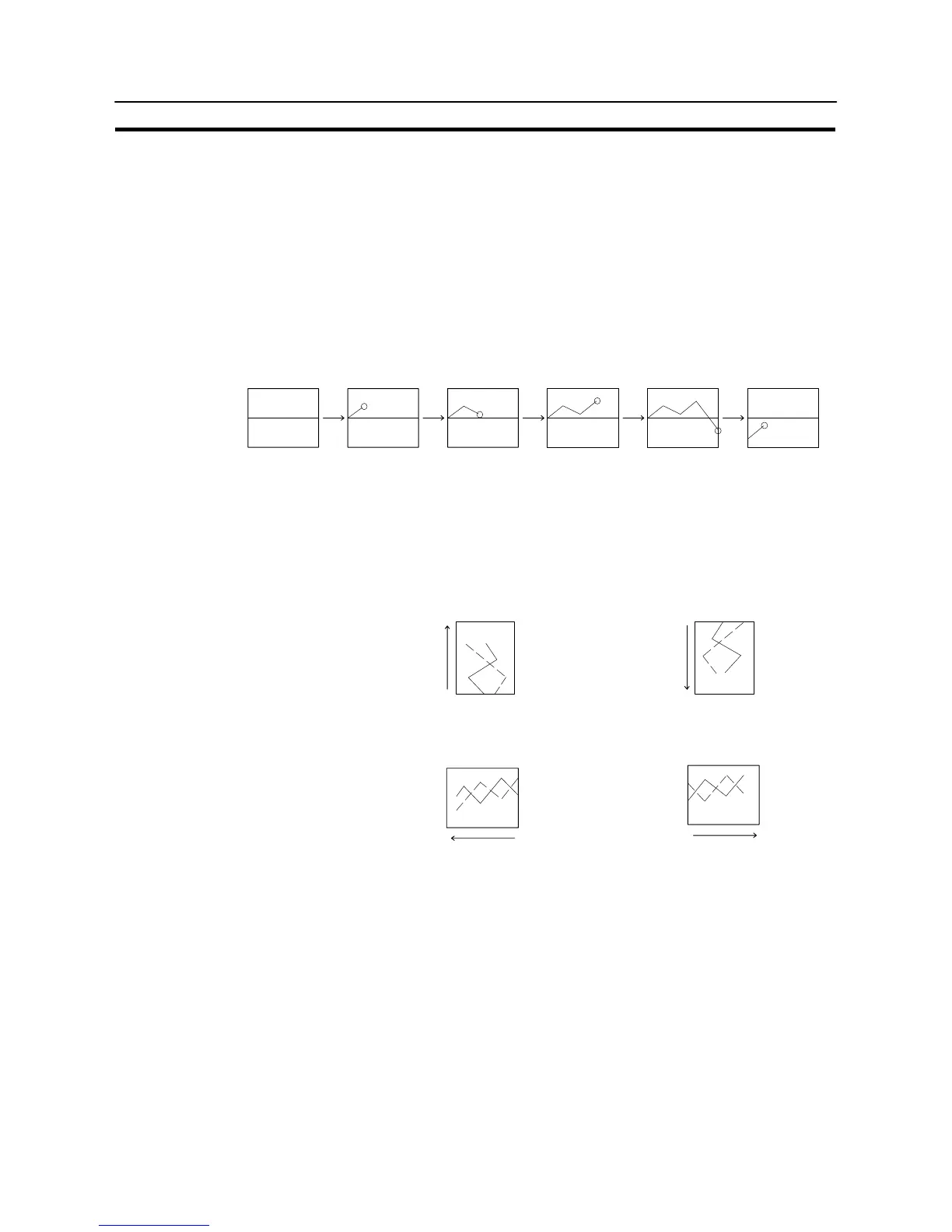

S Line drawing method
The graph is drawn as shown below depending on the settings made for “Type”
and “Direction”.
The 100% value is at the top of the frame when the “Direction” is a lateral one and
the right of the frame when the “Direction” is a longitudinal one.
<When “Standard” is set for “Type”>
With the standard type, the latest drawing position moves in the direction of mo-
tion specified by “Direction” with the passage of time. If the direction of motion is
“right”, the display changes as indicated below. When the line reaches the edge
of the graph area, the line is cleared and then displayed again from the begin-
ning.
Direction of
motion →
f: Latest data
To start, the
NT31/NT31C
draws a line
from 0 to the
latest data.
f: Latest data f: Latest data f: Latest data f: Latest data
Thereafter, the
NT31/NT31C
draws a line from
the last data to
the latest data.
The drawing results with each “Direction” setting are indicated below.
100% 100%
100%
100%
“Up”:
The drawing position
moves upward.
Direction of motion
“Down”:
The drawing position
moves downward.
Direction of motion
“Left”:
The drawing position
moves to the left.
“Right”:
The drawing position
moves to the right.
Direction of motion
Direction of motion
