Omron NX Series Reference Manual

A - 3
Appendices
NX-series Data Reference Manual (W525)
A-1 NX Unit Power Supply and I/O Power
Supply Capacity
A

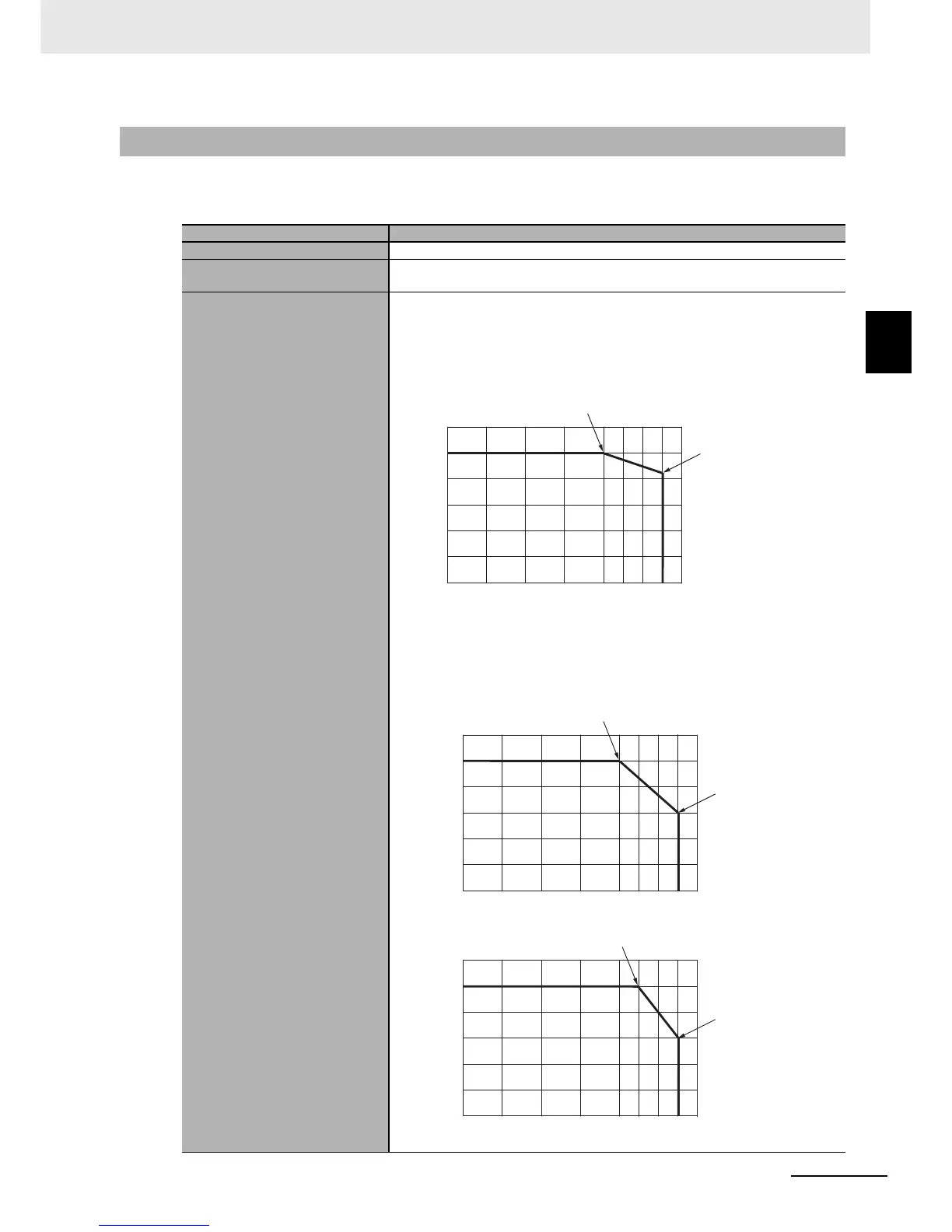

A-1-2 EtherNet/IP Coupler Unit
 NX-EIC202
A-1-2 EtherNet/IP Coupler Unit
Item Specification
NX Unit power supply capacity 10 W max. (Refer to Installation orientation and restrictions for details.)
Maximum current of I/O power sup-
ply
10 A (Refer to Installation orientation and restrictions for details.)
Installation orientation and restric-
tions
Installation orientation: Possible in 6 orientations.
Restrictions:
• For upright installation
The following restrictions apply to the NX Unit power supply.
• For any installation other than upright
The following restrictions apply respectively to the NX Unit power supply and I/O
power supply.
NX Unit
power supply (W)
For 10 W output, 40°C
Ambient operating temperature (°C)
60555045403020100
10
8
4
2
0
6
12
For 8.5 W output, 55°C
NX Unit
power supply (W)
For 10 W output, 40°C
Ambient operating temperature (°C)
60555045403020100
10
8
4
2
0
6
12
For 6.0 W output, 55°C
I/O power supply (A)
For 10 A current, 45°C
Ambient operating temperature (°C)
60555045403020100
10
8
4
2
0
6
12
For 6 A current, 55°C

Omron NX Series Specifications

General

Programming Languages	Ladder, Structured Text, Function Block Diagram, Sequential Function Chart
Communication Ports	Ethernet, USB, RS-232C, RS-485
Memory Capacity	Varies by model
Program Memory	Varies by model
Data Memory	Varies by model
Operating Temperature	0°C to 55°C
Power Supply	24 VDC
Ethernet Ports	1 or 2 ports (depending on model)
USB Ports	1 or 2 ports (depending on model)
Dimensions	Varies by model
Weight	Varies by model
