5 Installation and Wiring
NX-series NX1P2 CPU Unit Hardware User’s Manual (W578)
5-3 Mounting Units
5
5-3-8 Installing and Removing the SD Memory Card
1 Using a flat-blade screwdriver, open the memory card cover on the upper left corner of the CPU
Unit upward.
2 Insert the SD Memory Card with the label facing to the left.
Insert the SD Memory Card with the label facing the left side of the CPU Unit.
3 Push the SD Memory Card securely into the compartment.
4 Close the Memory Card cover.

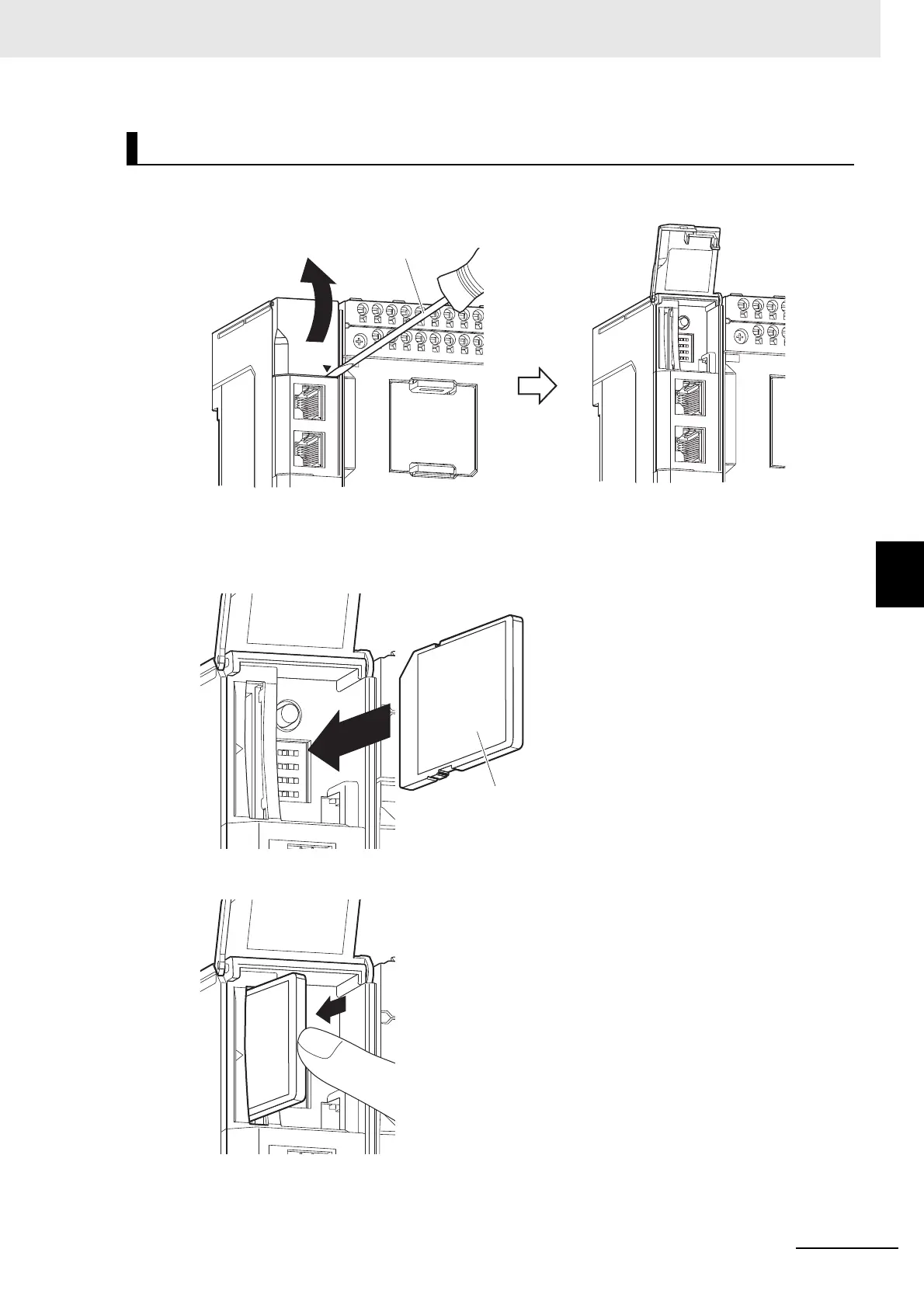

Installing the SD Memory Card
Flat-blade screwdriver
Model number label

Omron NX1P2 series Specifications

General

Model	NX1P2 Series
Manufacturer	Omron
Type	Controller
CPU Units	1
Program Capacity	5 MB
Data Memory Capacity	128 KB
Ethernet Ports	1
Serial Ports	1
Built-in EtherNet/IP Port	Yes
Built-in EtherCAT Port	Yes
Built-in USB Port	Yes
SD Memory Card Slot	Yes
USB Port	1
Power Supply Voltage	24 VDC
Programming Language	Ladder, Structured Text, Function Block Diagram
Communication Protocols	EtherNet/IP, EtherCAT, Serial (RS-232C)
