3 Configuration Units
NX-series NX1P2 CPU Unit Hardware User’s Manual (W578)
3-4 Analog I/O Option Board
3
3-4-1 Models and Specifications
3-4 Analog I/O Option Board
This section explains the specifications that are common to all types of Analog I/O Option Board.
Refer to 3-4-3 Part Names and Functions on page 3-27 for details.
3-4-1 Models and Specifications

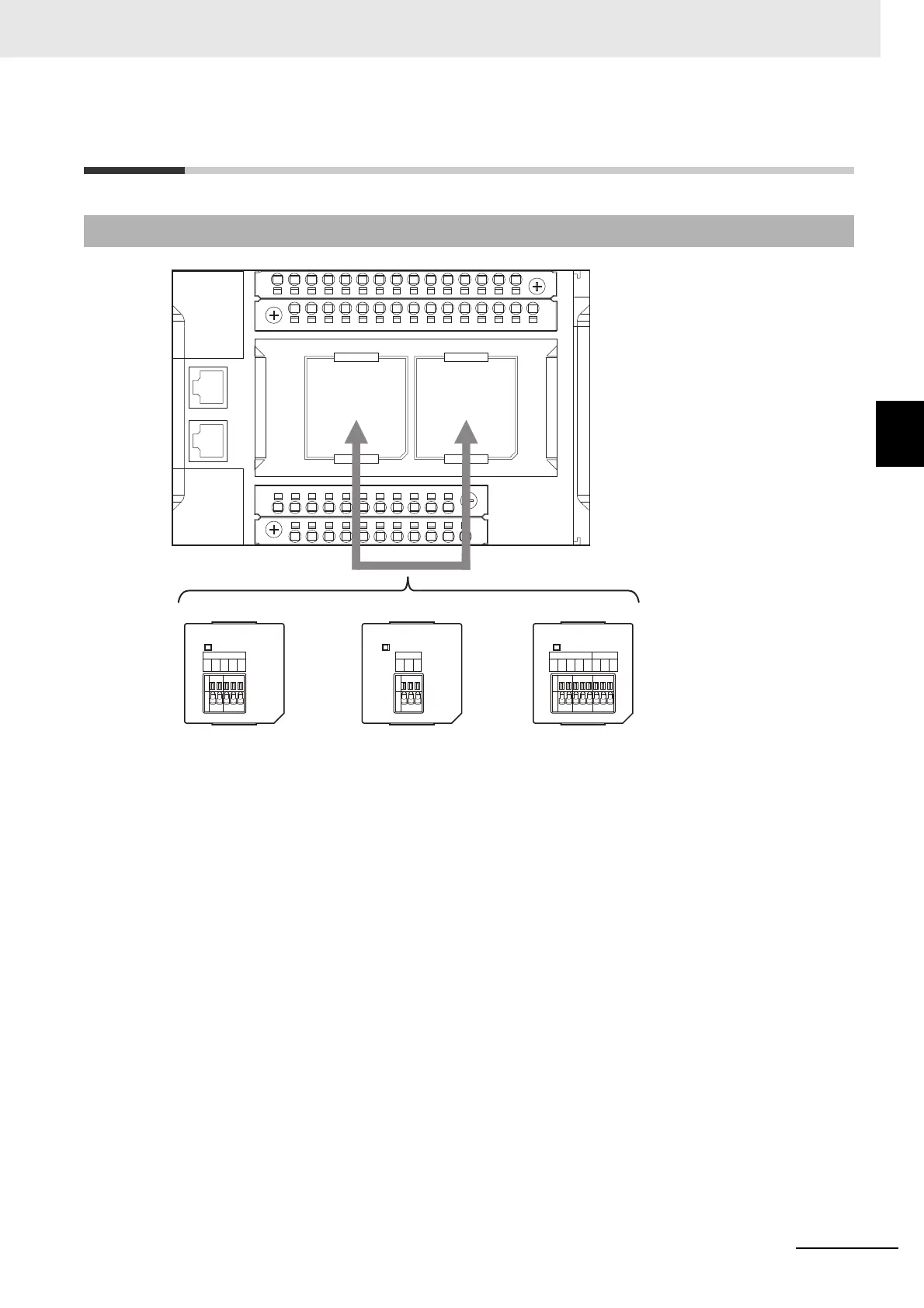

Analog Input
Option Board
(NX1W-ADB21)
Analog Output
Option Board
(NX1W-DAB21V)
Analog I/O
Option Board
(NX1W-MAB221)
ERR
IN
VI1
I I1
VI2
I I2
COM
ERR
OUT
VO1 VO2
COM
ERR
OUT
VO1 VO2
COM
IN
VI1
I I1
VI2
I I2
COM
NX-series NX1P2
CPU Unit

Omron NX1P2 series Specifications

General

Model	NX1P2 Series
Manufacturer	Omron
Type	Controller
CPU Units	1
Program Capacity	5 MB
Data Memory Capacity	128 KB
Ethernet Ports	1
Serial Ports	1
Built-in EtherNet/IP Port	Yes
Built-in EtherCAT Port	Yes
Built-in USB Port	Yes
SD Memory Card Slot	Yes
USB Port	1
Power Supply Voltage	24 VDC
Programming Language	Ladder, Structured Text, Function Block Diagram
Communication Protocols	EtherNet/IP, EtherCAT, Serial (RS-232C)
