Omron NX1P2 series User Manual

5 - 41
5 Installation and Wiring
NX-series NX1P2 CPU Unit Hardware User’s Manual (W578)
5-4 Wiring
5

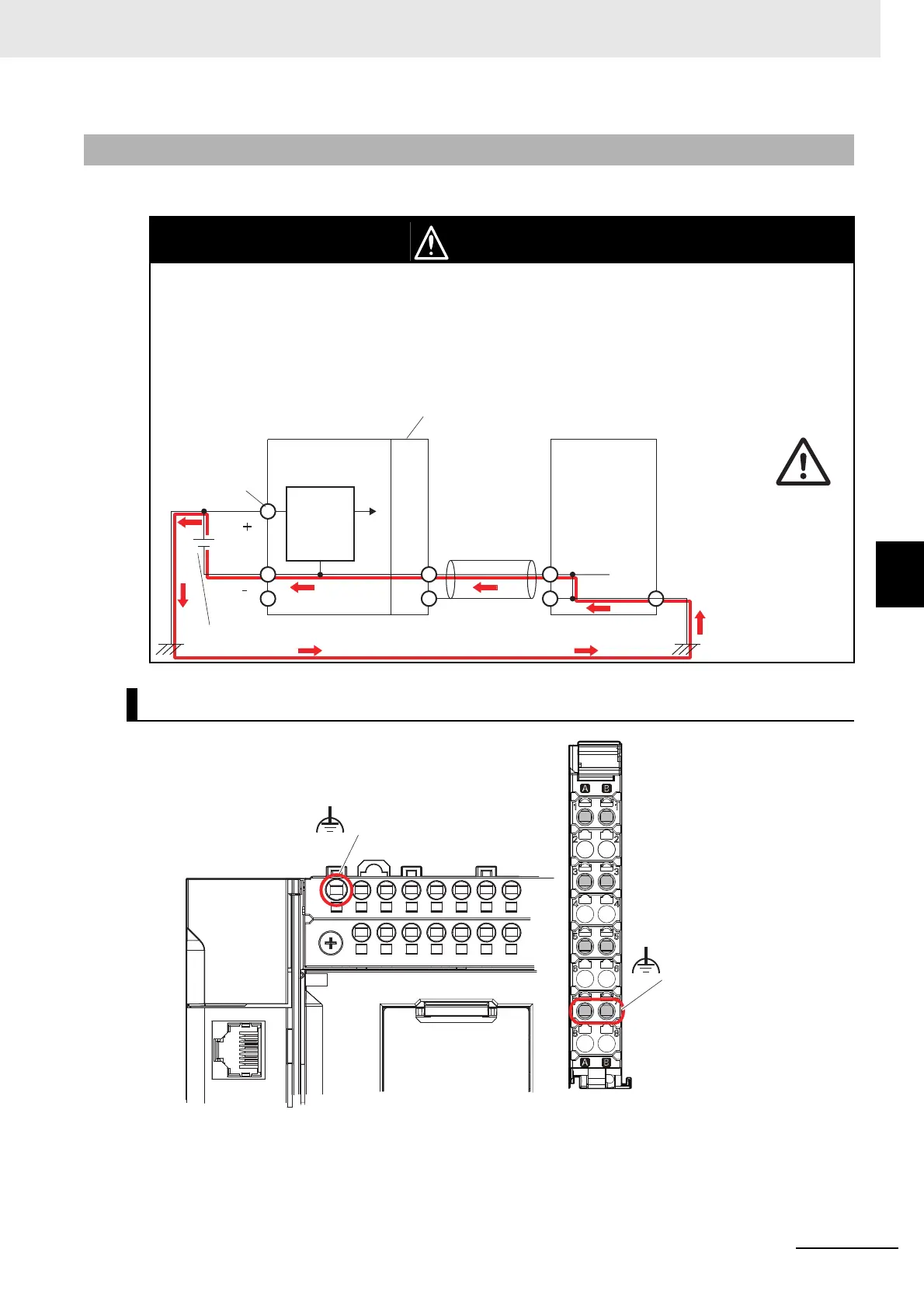

5-4-5 Grounding
This section describes how to ground the CPU Rack.
5-4-5 Grounding
When you connect a computer or other peripheral device to a Controller that has a non-isolated
DC power supply, either ground the 0-V side of the external power supply or do not ground it at
all.
If the peripheral devices are grounded incorrectly, the external power supply may be short-cir-
cuited. Never ground the 24-V side of the power supply, as shown in the following figure.
Units with Ground Terminals and Type of Ground Terminals
CAUTION
Internal
power supply
circuit
(Non-isolated)
CPU Unit
Cable
External device
(e.g. computer)
External power supply (Unit power supply)
Non-isolated Option Board,
Communication Interface Unit, etc.
Unit power
supply terminals
Non-isolated DC
power supply
Functional Grounding
Input terminal block
CPU Unit
NX Unit
Functional
Grounding

Omron NX1P2 series Specifications

General

Model	NX1P2 Series
Manufacturer	Omron
Type	Controller
CPU Units	1
Program Capacity	5 MB
Data Memory Capacity	128 KB
Ethernet Ports	1
Serial Ports	1
Built-in EtherNet/IP Port	Yes
Built-in EtherCAT Port	Yes
Built-in USB Port	Yes
SD Memory Card Slot	Yes
USB Port	1
Power Supply Voltage	24 VDC
Programming Language	Ladder, Structured Text, Function Block Diagram
Communication Protocols	EtherNet/IP, EtherCAT, Serial (RS-232C)
