Omron NX1P2 series User Manual

5 Installation and Wiring
5 - 34
NX-series NX1P2 CPU Unit Hardware User’s Manual (W578)
Precautions for Safe Use
Always turn OFF the Unit power supply and I/O power supply before you remove the NX Unit.

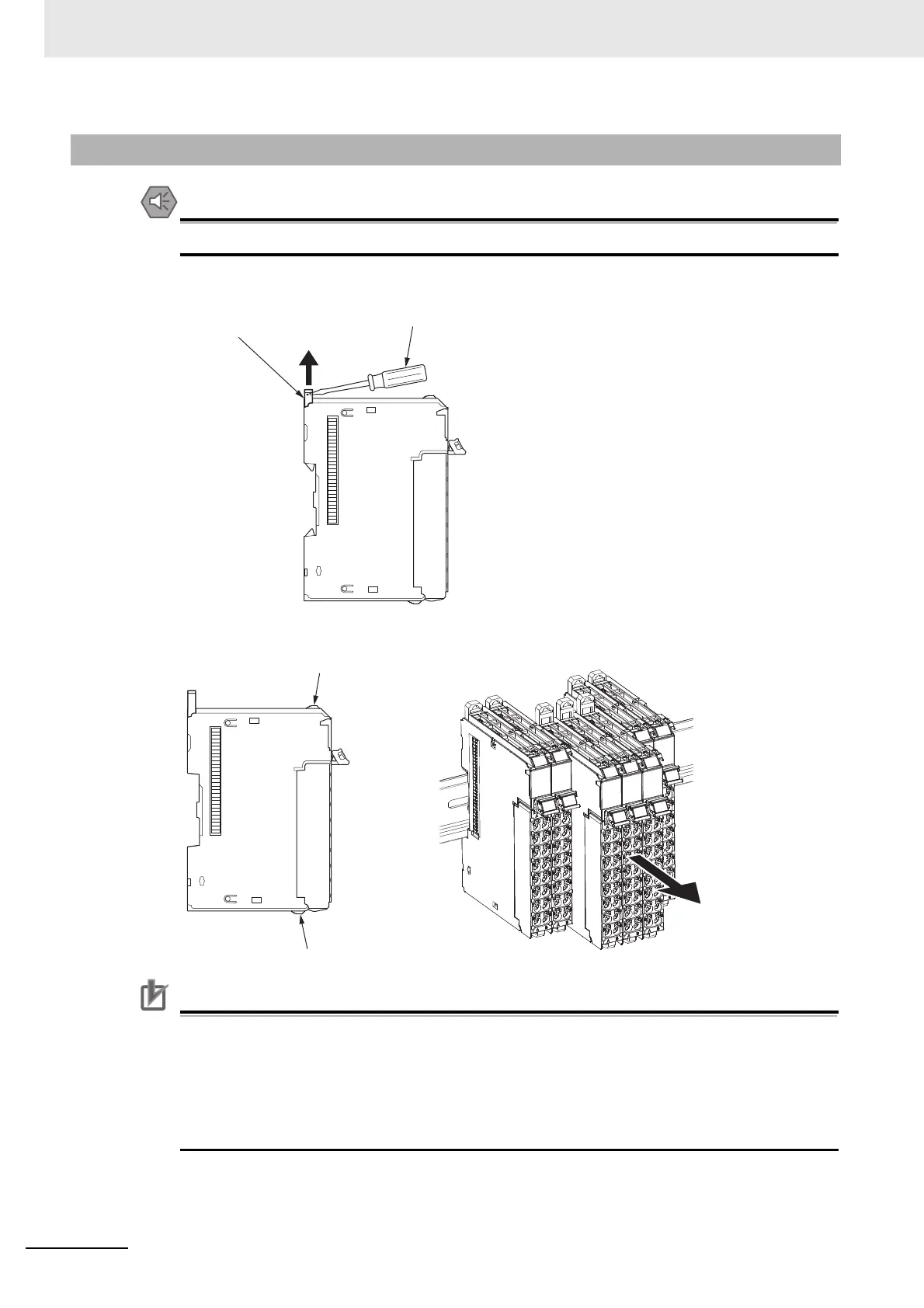

1 Use a flat-blade screwdriver to pull up the DIN Track mounting hook on the Unit to remove.
2 Put your fingers on the protrusions for removing multiple NX Units including the Unit to be
removed, then pull out straight forward to remove.
Precautions for Correct Use
• When removing an NX Unit, remove multiple Units together which include the one you want
to remove. If you attempt to remove only one Unit, it is stuck and hard to pull out.
• Do not unlock the DIN track mounting hooks on all of the NX Units at the same time. If you
unlock the DIN Track mounting hooks on all of the NX Units at the same time, all of the Units
may come off.
• When you remove a Unit, be careful not to touch or bump the pins in the NX bus connector.
5-3-12 Removing NX Units
Flat-blade screwdriver
DIN track mounting hook
Protrusion for removing the Unit
Protrusion for removing the Unit

Omron NX1P2 series Specifications

General

Model	NX1P2 Series
Manufacturer	Omron
Type	Controller
CPU Units	1
Program Capacity	5 MB
Data Memory Capacity	128 KB
Ethernet Ports	1
Serial Ports	1
Built-in EtherNet/IP Port	Yes
Built-in EtherCAT Port	Yes
Built-in USB Port	Yes
SD Memory Card Slot	Yes
USB Port	1
Power Supply Voltage	24 VDC
Programming Language	Ladder, Structured Text, Function Block Diagram
Communication Protocols	EtherNet/IP, EtherCAT, Serial (RS-232C)
