3 Configuration Units
3 - 34
NX-series NX1P2 CPU Unit Hardware User’s Manual (W578)
With an NX1P2 CPU Unit, you can connect the Sysmac Studio online in the following ways.
Connection with EtherNet/IP
3-7-2 Connection
Configuration

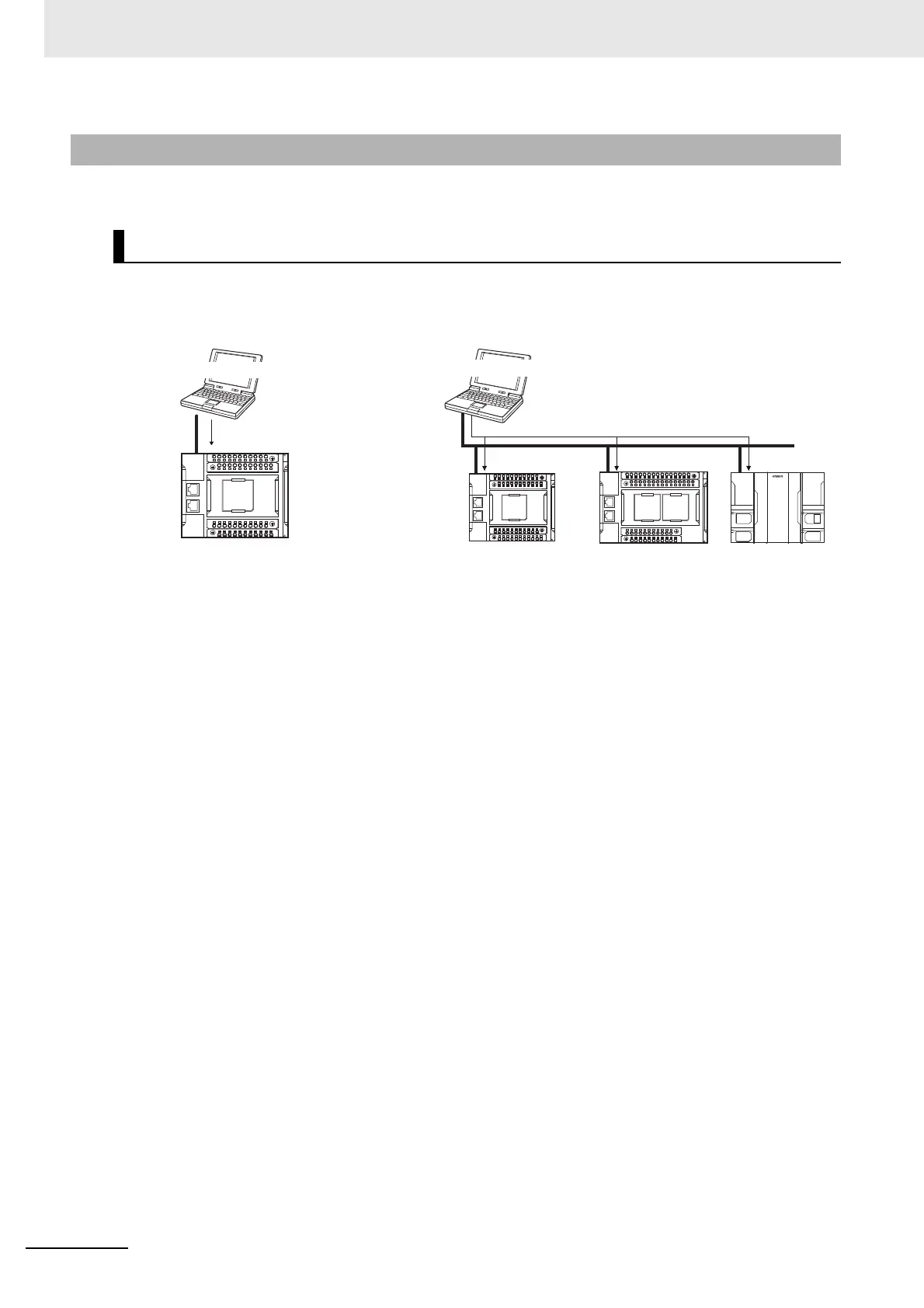

• 1:1 Connection • 1:N Connection
• A direct connection is made from the
Sysmac Studio. The IP address and
connection device do not need to be
specified.
• You can make the connection
whether or not a switching hub is
used.
• Support for Auto-MDI enables the use
of cross cables or straight cables if a
direct connection is made.
Directly specify the IP address of the remote device.
