Omron NX1P2 series User Manual

5 Installation and Wiring
5 - 40
NX-series NX1P2 CPU Unit Hardware User’s Manual (W578)
For information on wiring the Additional NX Unit Power Supply Unit, refer to the NX-series System Units
User’s Manual (Cat. No. W523-E1-05 or later).
For information on wiring the Additional I/O Power Supply Unit, refer to the NX-series System Units
User’s Manual (Cat. No. W523-E1-05 or later).
For information on wiring the protective devices to protect against short circuits and overcurrents of
external circuits, refer to 4-4-3 Selecting Protective Devices on page 4-21.
5-4-2 Wiring the Additional NX Unit Power Supply Unit
5-4-3 Wiring the Additional I/O Power Supply Unit
5-4-4 Wiring the Protective Devices
+-
-+

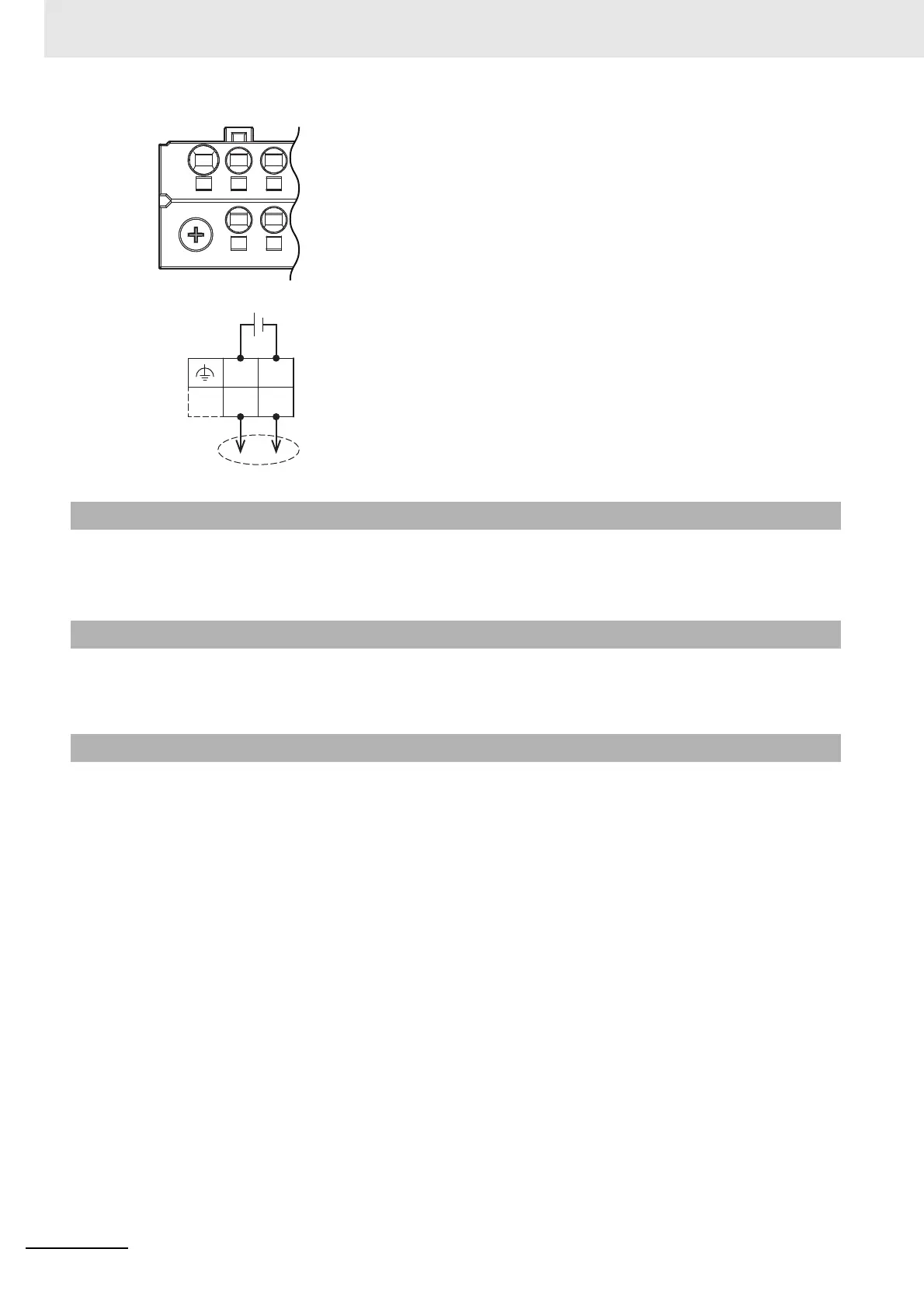

Through-wiring for
unwired terminals
24 VDC
Left side of the input terminal block
This terminal arrangement is common to all models of the
CPU Unit.
Refer to Input Terminal Block on page 3-11 under 3-1-4
Terminal Blocks on page 3-10 for details.

Omron NX1P2 series Specifications

General

Model	NX1P2 Series
Manufacturer	Omron
Type	Controller
CPU Units	1
Program Capacity	5 MB
Data Memory Capacity	128 KB
Ethernet Ports	1
Serial Ports	1
Built-in EtherNet/IP Port	Yes
Built-in EtherCAT Port	Yes
Built-in USB Port	Yes
SD Memory Card Slot	Yes
USB Port	1
Power Supply Voltage	24 VDC
Programming Language	Ladder, Structured Text, Function Block Diagram
Communication Protocols	EtherNet/IP, EtherCAT, Serial (RS-232C)
