5 Installation and Wiring
5 - 38
NX-series NX1P2 CPU Unit Hardware User’s Manual (W578)
The installation height of the CPU Rack depends on the model of DIN Track and on the models of NX
Units that are mounted.
Also, additional space is required for the cables that are connected to the Unit. Allow sufficient depth in
the control panel and allow extra space when you mount the CPU Rack.

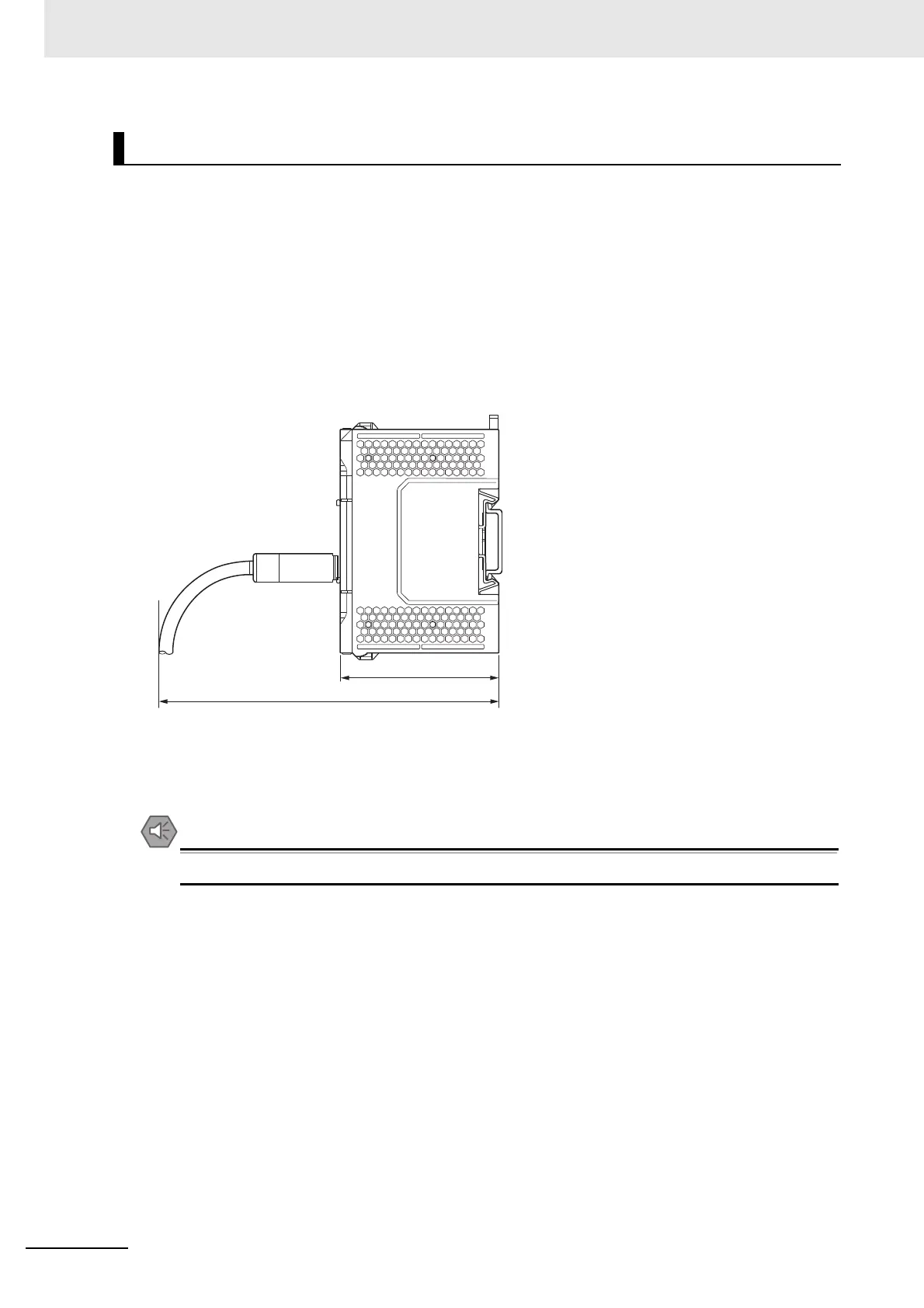

The following figure shows the dimensions from the cables connected to the CPU Rack to the back of
the Unit. The unit of dimension is millimeter.
The height from the mounting surface of the DIN Track varies depending on the DIN Track to be used.
Refer to Installation Dimensions on page 5-35 for the height of individual DIN Track type.
*1. This is the dimension from the back of the Unit to the communications cables.
140.7 mm: When an MPS588-C Connector is used.
157.3 mm: When an XS6G-T421-1 Connector is used.
Do not bend the cable forcibly. Doing so may break the cable.
Installation Height
71
140.7 to 157.3
*1
Unit: [mm]
To Next Page
