Omron NX1P2 series User Manual

5 Installation and Wiring
5 - 46
NX-series NX1P2 CPU Unit Hardware User’s Manual (W578)
The wires that you can connect to the screwless clamping terminal block are twisted wires, solid wires,
and ferrules that are attached to the twisted wires.

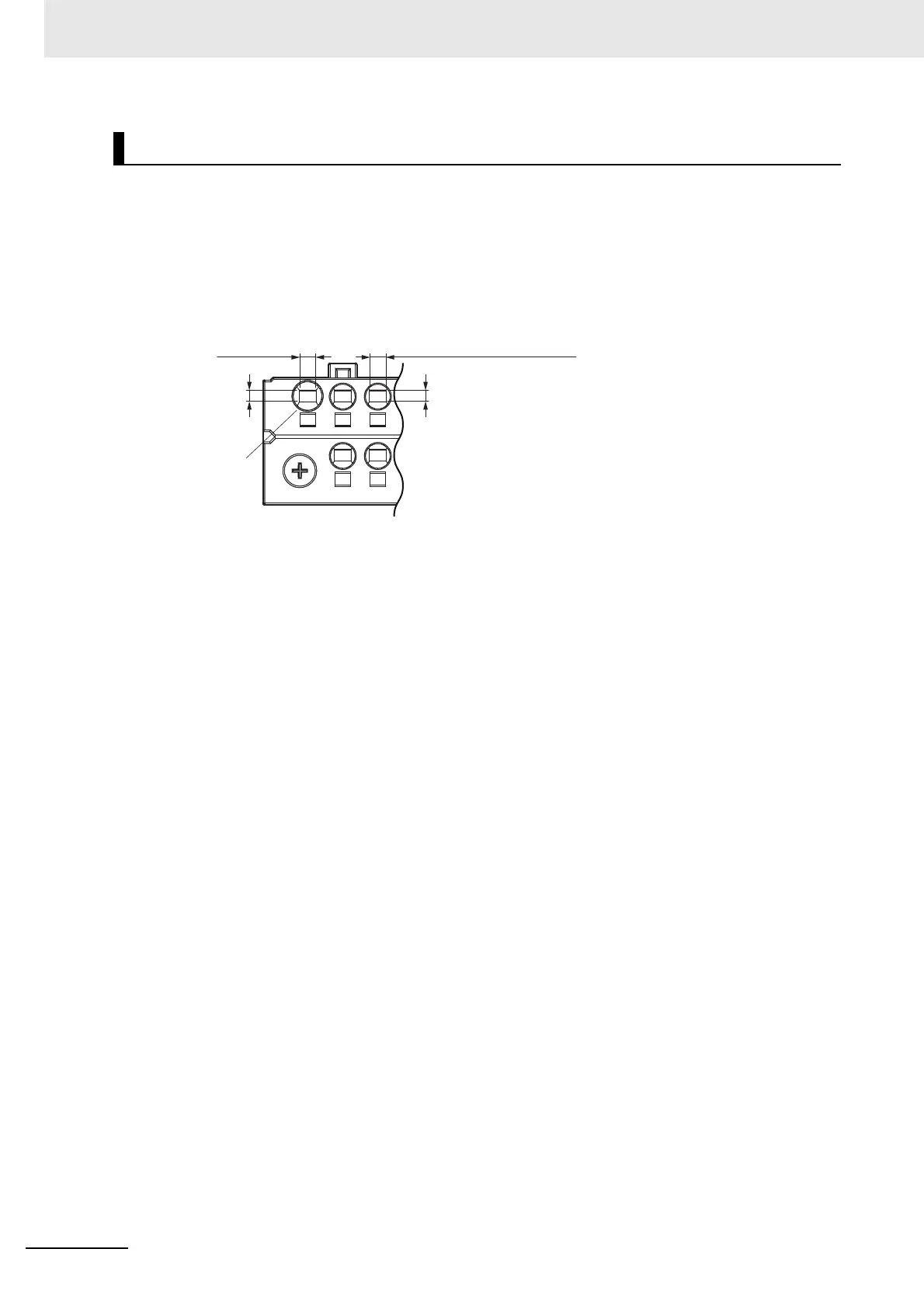

 Dimensions of Wires Connected to the Terminal Block
The dimensions of wires that you can connect into the terminal holes of the screwless clamping ter-
minal block are as in the figure below.
Process the applicable wires that are specified in the following description to apply the dimensions.
Applicable Wires
2.7 mm max.
1.6 mm max. (Terminals other than ground terminals)
2.0 mm max.
Ground
terminals
2.4 mm max. (Terminals other than ground terminals)

Omron NX1P2 series Specifications

General

Model	NX1P2 Series
Manufacturer	Omron
Type	Controller
CPU Units	1
Program Capacity	5 MB
Data Memory Capacity	128 KB
Ethernet Ports	1
Serial Ports	1
Built-in EtherNet/IP Port	Yes
Built-in EtherCAT Port	Yes
Built-in USB Port	Yes
SD Memory Card Slot	Yes
USB Port	1
Power Supply Voltage	24 VDC
Programming Language	Ladder, Structured Text, Function Block Diagram
Communication Protocols	EtherNet/IP, EtherCAT, Serial (RS-232C)
