Omron NX1P2 series User Manual

5 - 83
5 Installation and Wiring
NX-series NX1P2 CPU Unit Hardware User’s Manual (W578)
5-5 Control Panel Installation
5
5-5-6 Grounding
Each of these earthing methods is given below.
 Equipotential Bonding System
Equipotential bonding is an earthing method in which steel frames and building structures, metal
ducts and pipes, and metal structures in floors are connected together and make connections to the
earth trunk line to achieve a uniform potential everywhere across the entire building. We recom-
mend this earthing method.

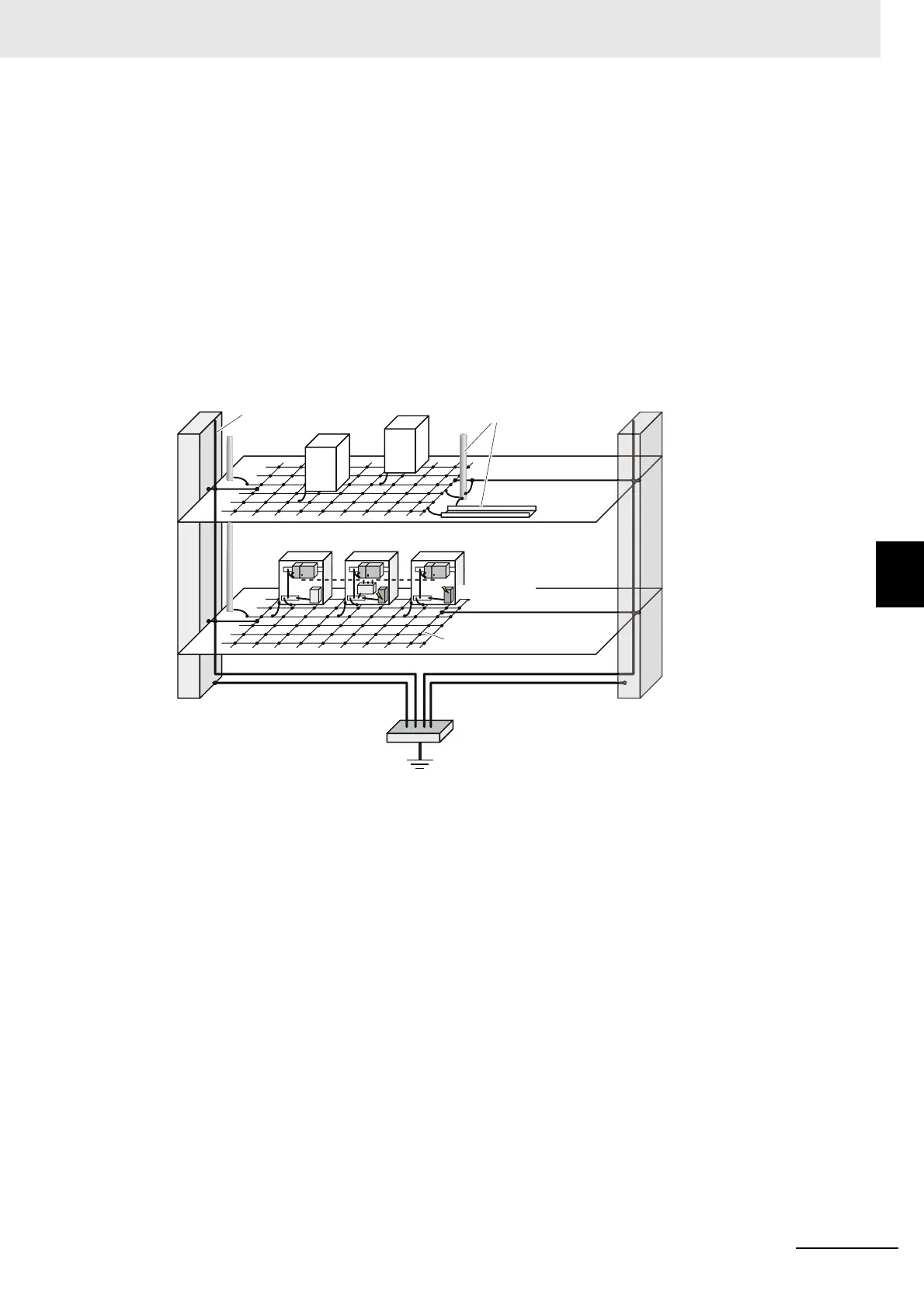

The following figure shows an example of an equipotential bonding system.
Connect the main earthing terminal and building structures together with equipotential bonding con-
ductors and embed the mesh ground line in each floor.
Connect the ground line of each control panel to the equipotential bonding system.
Information device
Power device
Metal duct and pipe
Building structure
Equipotential bonding conductor
Main earthing terminal
Earth electrode
Metal structure in floor
Earth trunk line
Control panel
Hub
Control panel
Control panel
Noise source

Omron NX1P2 series Specifications

General

Model	NX1P2 Series
Manufacturer	Omron
Type	Controller
CPU Units	1
Program Capacity	5 MB
Data Memory Capacity	128 KB
Ethernet Ports	1
Serial Ports	1
Built-in EtherNet/IP Port	Yes
Built-in EtherCAT Port	Yes
Built-in USB Port	Yes
SD Memory Card Slot	Yes
USB Port	1
Power Supply Voltage	24 VDC
Programming Language	Ladder, Structured Text, Function Block Diagram
Communication Protocols	EtherNet/IP, EtherCAT, Serial (RS-232C)
