2-4 External and Mounting Dimensions
OMNUC G5-series AC Servomotors and Servo Drives User’s Manual (with Built-in EtherCAT Communications)
2

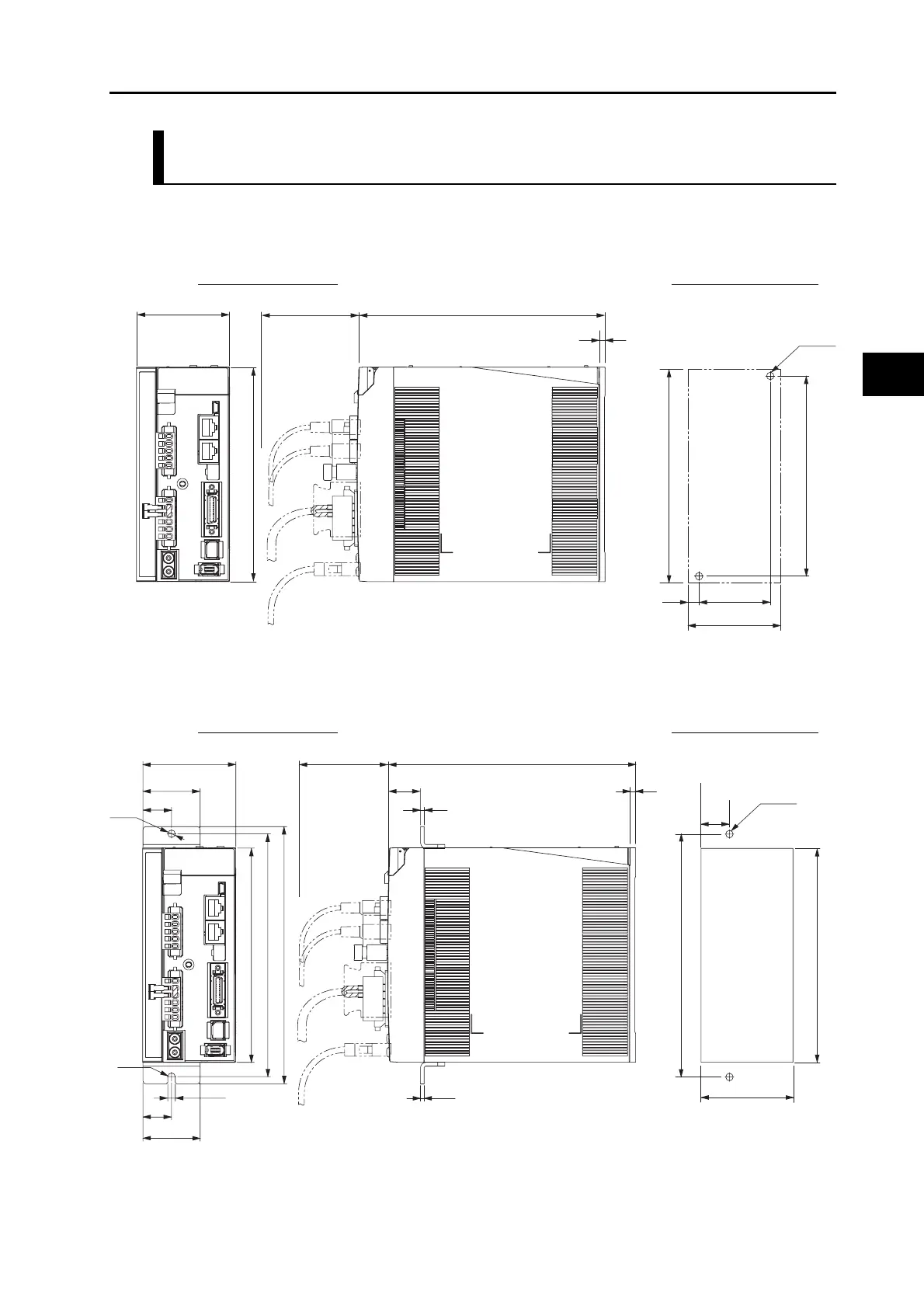

Models and External Dimensions
Single-phase/3-phase 100 VAC: R88D-KN04L-ECT-R (400 W)
Single-phase/3-phase 200 VAC: R88D-KN08H-ECT-R (750 W)
Wall Mounting
External dimensions Mounting dimensions
Front Mounting (Using Front Mounting Brackets)
External dimensions Mounting dimensions
172
4
65
150
150 140
50
7.5
65
70
φ5.2
65
40
20
φ5.2
R2.6
20
40
5.2
180 170 150
172
4
2.5
19.5
2.5
170
20
70
φ5.2
(67)*
(158)*
* Rectangular hole dimensions are reference values.
Rectangular
hole
