Omron R88D-KN series User Manual

3 Specifications
3-36
G5 Series AC Servo Drives With Built-in EtherCAT Communications, Linear Motor Type
 XW2D-20G6

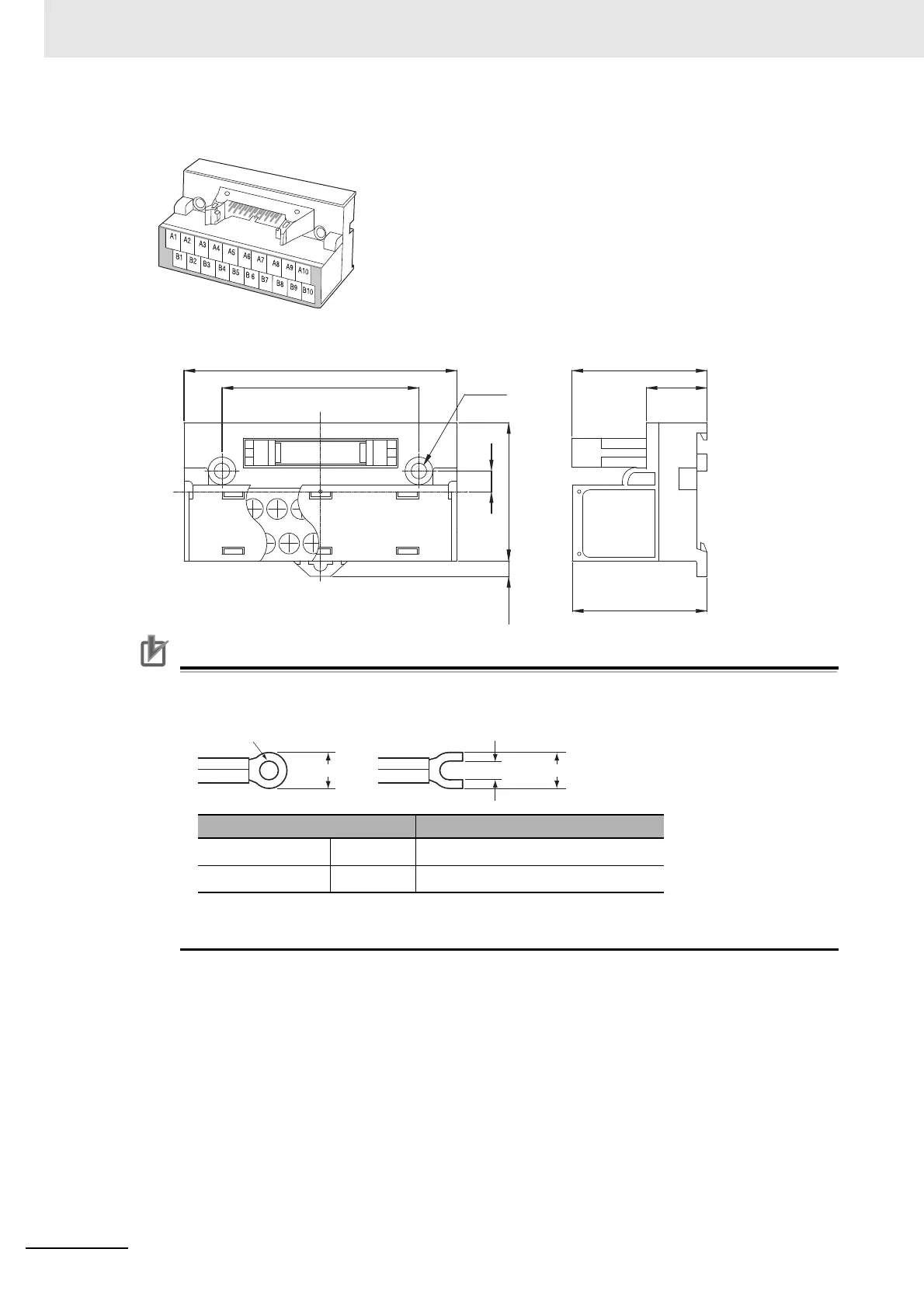

Precautions for Correct UsePrecautions for Correct Use
• When using crimp terminals, use crimp terminals with the following dimensions.
• When connecting wires and crimp terminals to a terminal block, tighten them to a tightening
torque of 0.7 N·m.
Applicable crimp terminals Applicable wires
Round terminals 1.25 to 3
AWG22 to 16 (0.30 to 1.25 mm
2
)
Fork terminals 1.25Y to 3
AWG22 to 16 (0.30 to 1.25mm
2
)
79 (39.1)
39
57 17.6
6
40(4.5)
2- Ø 4.5
Dimensions
Ø3.2mm
3.2mm
Round terminal Fork terminal
5.8 mm max. 5.8 mm max.

Omron R88D-KN series Specifications

General

Brand	Omron
Model	R88D-KN series
Category	Controller
Language	English
