Omron R88D-KN series User Manual

4-49
4 System Design
G5 Series AC Servo Drives With Built-in EtherCAT Communications, Linear Motor Type
4-3 Wiring Conforming to EMC Directives
4
4-3-2 Selecting Connection Component
Understand each component's characteristics, such as its capacity, performance, and applicable range
when selecting the connection components.
For more details, contact the manufacturers directly.
 Noise Filters for Motor Output
• Use noise filters without built-in capacitors on the motor output lines.
• Select a noise filter with a rated current at least twice the Servo Drive's continuous output current.
The following table shows the noise filters that are recommended for motor output lines.
Note 1 Motor output lines cannot use the same noise filters for power supplies.
2 General noise filters are made for power supply frequencies of 50/60 Hz. If these noise filters are
connected to output of the Servo Drive, a very large (about 100 times larger) leakage current may flow
through the noise filter's capacitor. This may damage the Servo Drive.

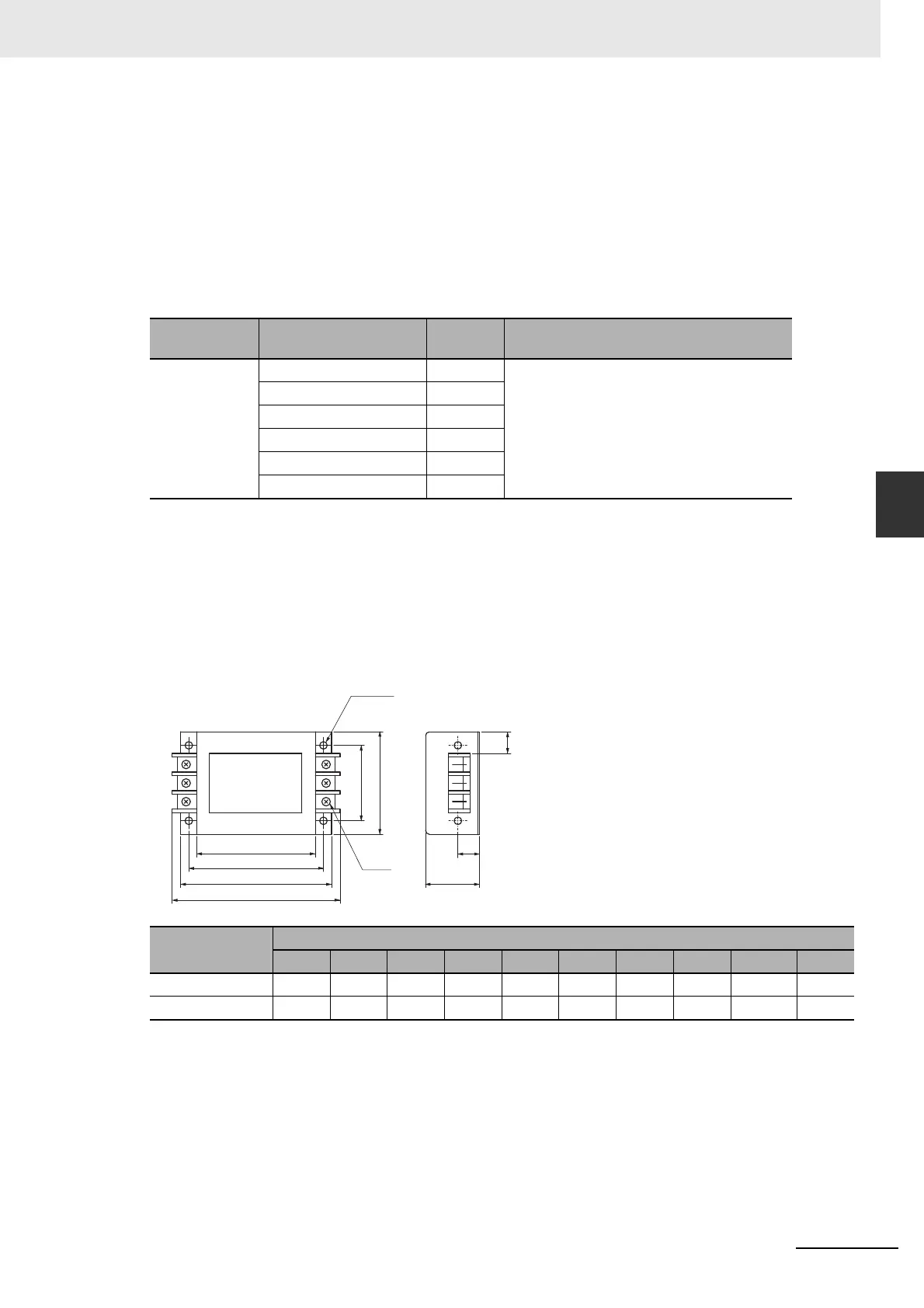

 External Dimensions
3G3AX-NF001/-NF002
Manufacturer Model
Rated
current
Comment
OMRON 3G3AX-NF001 6 A For inverter output
3G3AX-NF002 12 A
3G3AX-NF003 25 A
3G3AX-NF004 50 A
3G3AX-NF005 75 A
3G3AX-NF006 100 A
Model
Dimensions [mm]
A B C E F G H J M P
3G3AX-NF001 140 125 110 70 95 22 50 20 4.5 dia. 156
3G3AX-NF002 160 145 130 80 110 30 70 25 5.5 dia. 176
4-M
M4
C
B
A
P
E
F
J
H
G
