Omron R88D-KN series User Manual

4 System Design
4-56
G5 Series AC Servo Drives With Built-in EtherCAT Communications, Linear Motor Type
Precautions for Correct UsePrecautions for Correct Use
Connect the thermal switch output so that the main circuit power supply is shut OFF when the
contacts open.
When using multiple External Regeneration Resistors, connect each thermal switch in series.
The resistor may be damaged by burning, or cause fire if it is used without setting up a power
supply shutoff sequence using the output from the thermal switch.

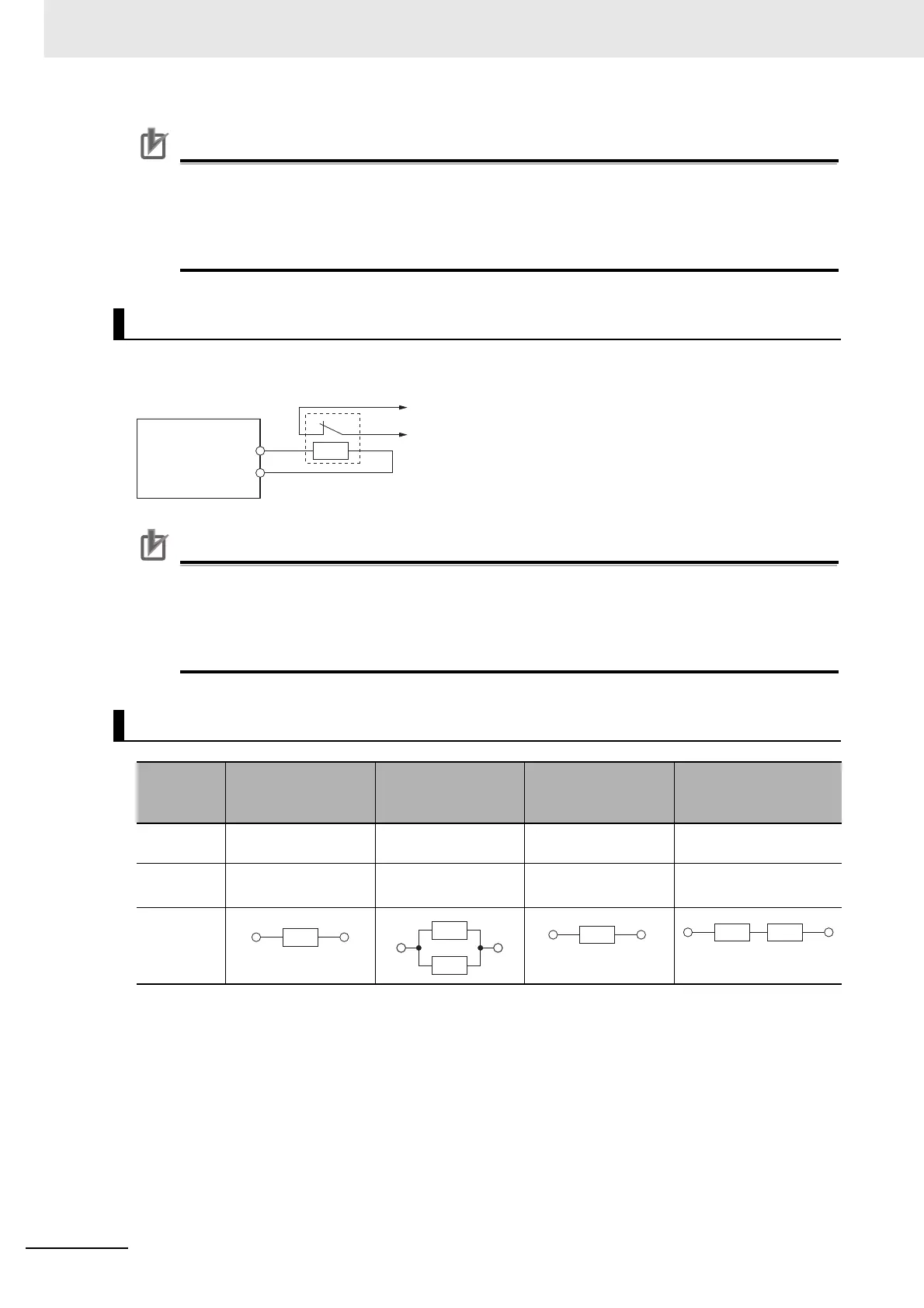

If an External Regeneration Resistor is necessary, connect the External Regeneration Resistor
between B1 and B2 as shown in the diagram below.
Precautions for Correct UsePrecautions for Correct Use
Connect the thermal switch output so that the main circuit power supply is shut OFF when the
contacts open.
When using multiple External Regeneration Resistors, connect each thermal switch in series.
The resistor may be damaged by burning, or cause fire if it is used without setting up a power
supply shutoff sequence using the output from the thermal switch.
R88D-KN75H-ECT-L/-KN150H-ECT-L/-KN75F-ECT-L/-KN150F-ECT-L
Combining External Regeneration Resistors
Regeneratio
n absorption
capacity
* 1
20 W 40 W 70 W 140 W
Model R88A-RR08050S
R88A-RR080100S
R88A-RR08050S
R88A-RR080100S
R88A-RR22047S
R88A-RR22047S1
R88A-RR22047S
R88A-RR22047S1
Resistance
value
*2
50 /100  25 /50  47  94 
Connection
method
B1
B2
Servo Drive
External Regeneration Resistor
Thermal switch output
θ >
R
R
R
R
R
R
R R
