Omron R88D-KN series User Manual

2 Models and External Dimensions
2-12
G5 Series AC Servo Drives With Built-in EtherCAT Communications, Linear Motor Type
 Wall Mounting

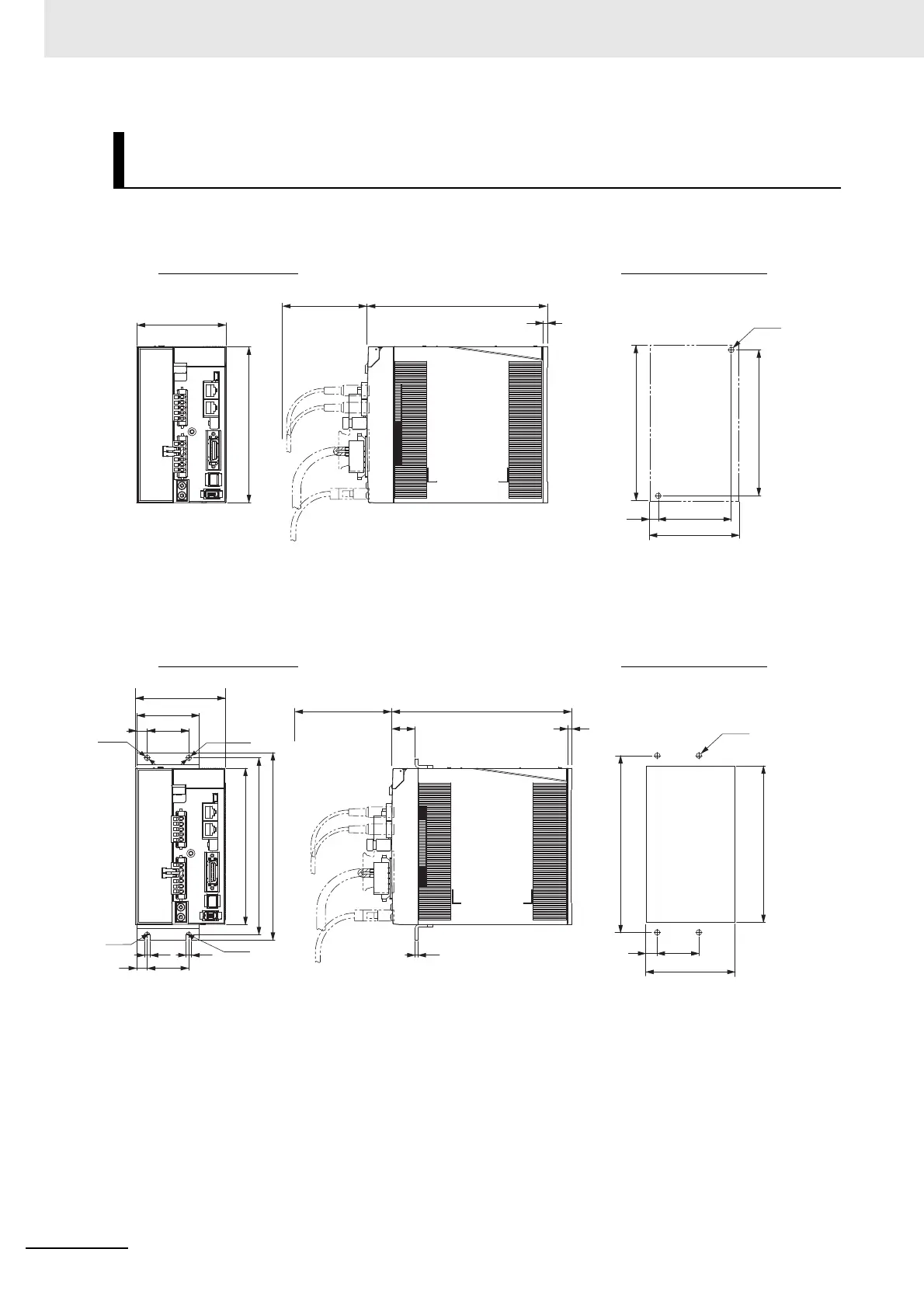

External dimensions Mounting dimensions
 Front Mounting (Using Front Mounting Brackets)
External dimensions Mounting dimensions
Single-phase/3-phase 200 VAC: R88D-KN10H-ECT-L/-KN15H-ECT-L
(900 W to 1.5 kW)
86
150
172
4
2-M4
140 150
70
8.5
86
70
170
40
11
R2.6
R2.6
φ5.2
φ5.2
170 180 150
86
60
40
10
5.2
5.2
40
10
19.5
172
4
70
4-M4
2.5
(88)*
(158)*
* Rectangular hole dimensions are reference values.
Rectangular
hole
