Omron R88D-KN series User Manual

2-19
2 Models and External Dimensions
G5 Series AC Servo Drives With Built-in EtherCAT Communications, Linear Motor Type
2-4 External and Mounting Dimensions
2

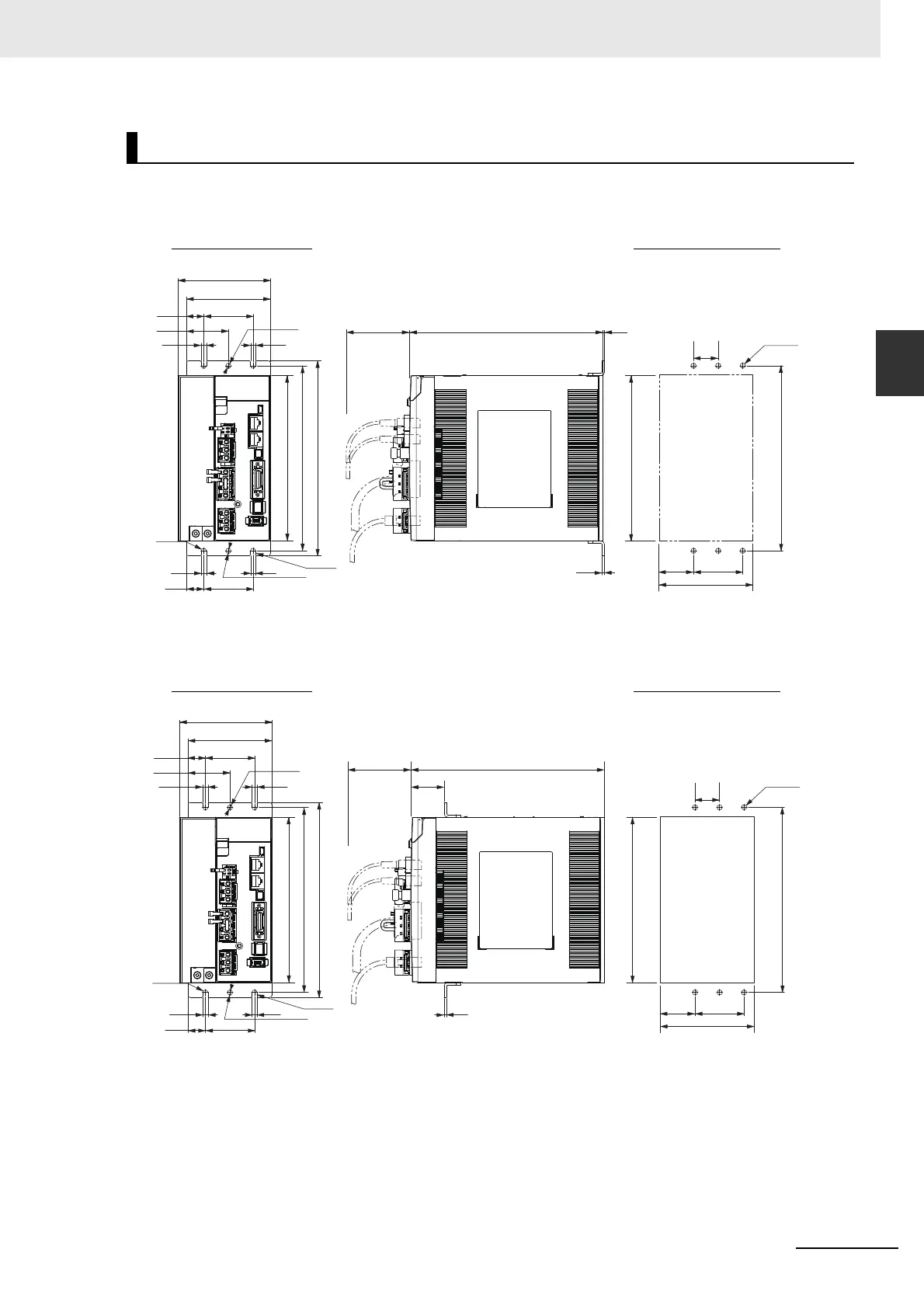

2-4-1 Servo Drive Dimensions
 Wall Mounting
External dimensions Mounting dimensions
 Front Mounting (Using Front Mounting Brackets)
External dimensions Mounting dimensions
3-phase 400 VAC: R88D-KN20F-ECT-L (2 kW)
Ø5.2
R2.6
R2.6
Ø5.2
25
180
50
94
168
195 1.8
94
85
50
17.5
42.5
5.2
5.2
5.2 5.2
50
17.5
168 188 198
70
6-M4
26.5
2.5
Ø5.2
R2.6
R2.6
Ø5.2
25
180
50
(96)*
(176)*
195
94
85
50
17.5
42.5
5.2
5.2
5.2 5.2
50
17.5
168 188 198
70
6-M4
26.5
2.5
30.7
* Rectangular hole dimensions are reference values.
Rectangular
hole
