Omron R88D-KN series User Manual

2 Models and External Dimensions
2-28
G5 Series AC Servo Drives With Built-in EtherCAT Communications, Linear Motor Type

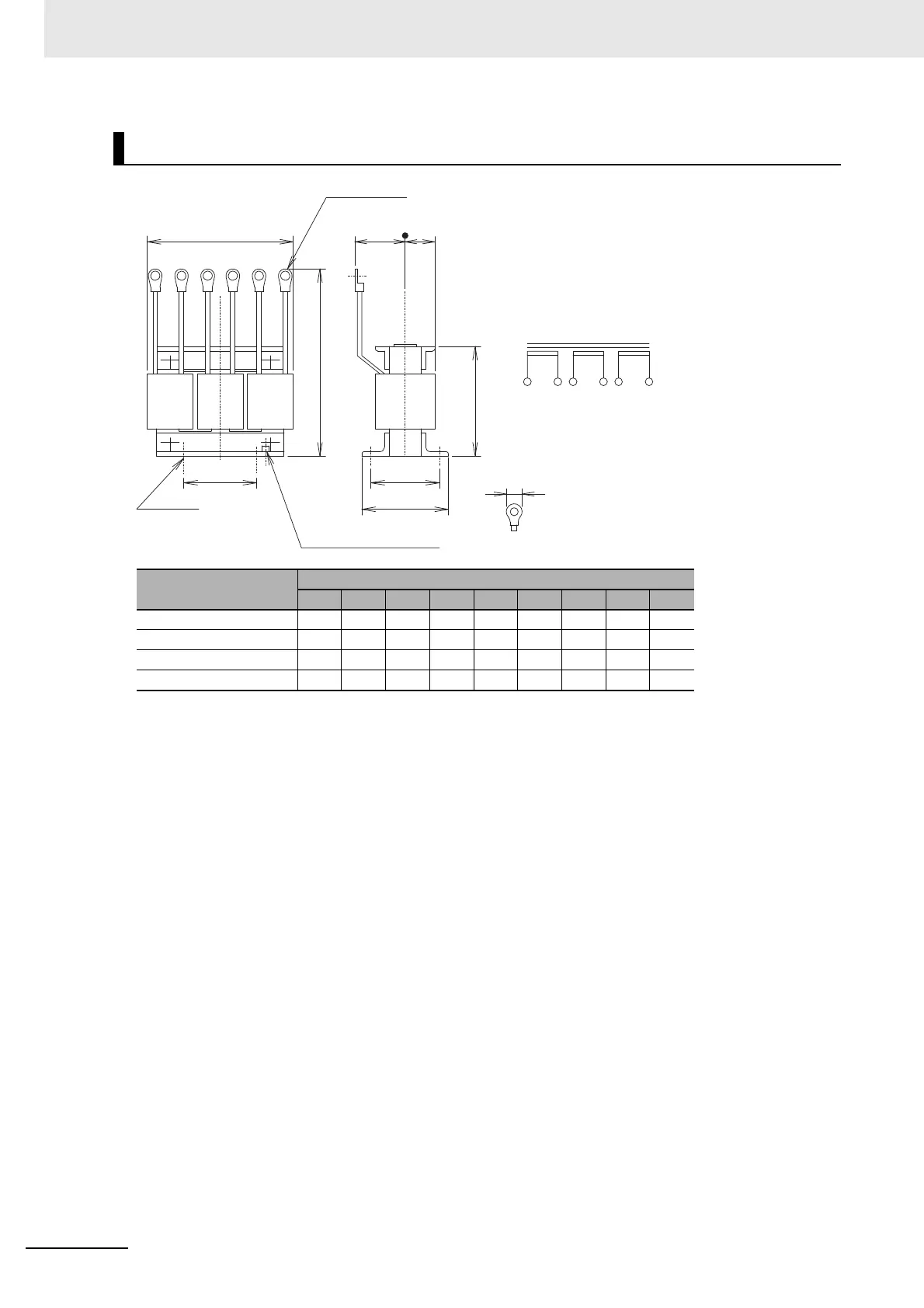

3G3AX-AL2110/-AL2220/-AL4110/-AL4220
Model
Dimensions [mm]
A C D H H1 X Y K W
3G3AX-AL2110 160 103 70 170 106 60 80 5.3 12
3G3AX-AL2220 180 113 75 190 136 90 90 8.4 16.5
3G3AX-AL4110 160 116 75 170 106 60 98 5.0 12.5
3G3AX-AL4220 180 103 75 190 138 100 80 5.3 12
Ro R So S To T
55D
C
Y±1X±1
W
H
H1
A
Ro RSo S To T
4-
Ø
6
W= Terminal width
Terminal hole 6-
Ø
K
Ground terminal (M6)
Connection Diagram
(Cutout)
