5-56
5-10 User Parameters
5
Operating Functions
Set the number of rotations for the Servomotor Rotation Speed Detection Output (TGON) during
Internally Set Speed Control.
The Servomotor Rotation Speed Detection Output (TGON) will turn ON if the Servomotor speed
exceeds the set speed regardless of the direction of rotation.
There is a hysteresis of 10 r/min, so set a value higher than 10.
Set the detection level for the deviation counter overflow alarm.
The alarm level is the setting value multiplied by 256 pulses.
The deviation counter overflow alarm can be disabled so that it does not occur.
Explanation of Settings

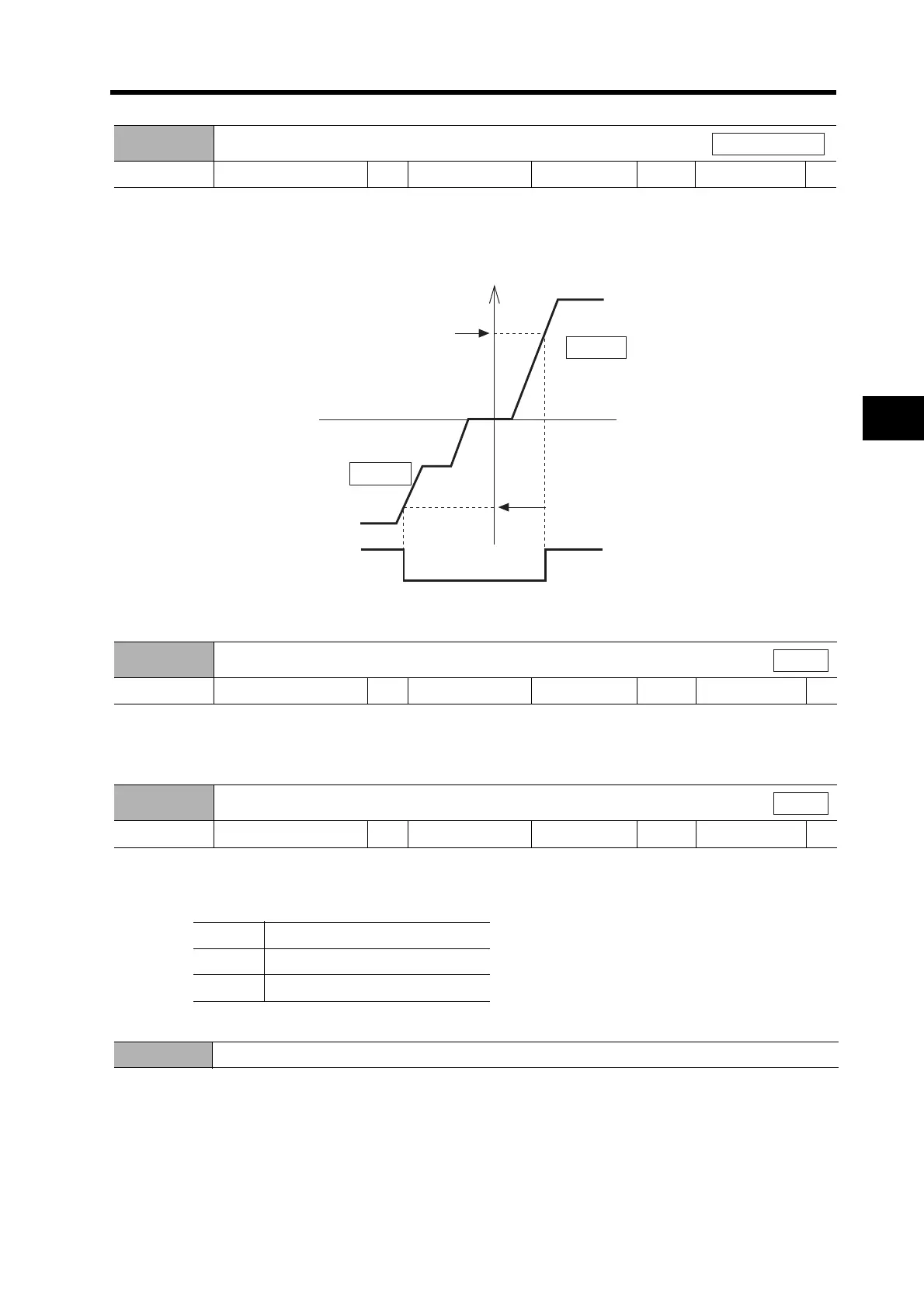

Pn62
Rotation Speed for Servomotor Rotation Detection
Setting range 0 to 20000 Unit r/min Default setting 50
Power OFF → ON
---
Speed
Reverse
TGON
Forward
Pn62
Pn62
Pn63
Deviation Counter Overflow Level
Setting range 0 to 32767 Unit × 256 pulses Default setting 100
Power OFF → ON
---
Pn64
Deviation Counter Overflow Alarm Disabled
Setting range 0 or 1 Unit --- Default setting 0
Power OFF → ON
---
Position
Setting Explanation
0 Enabled
1 Disabled
Pn65 Not used. (Do not change setting.)
