4-1 Monitor Mode
4
Functions
Multi-function Input Monitor [d005]

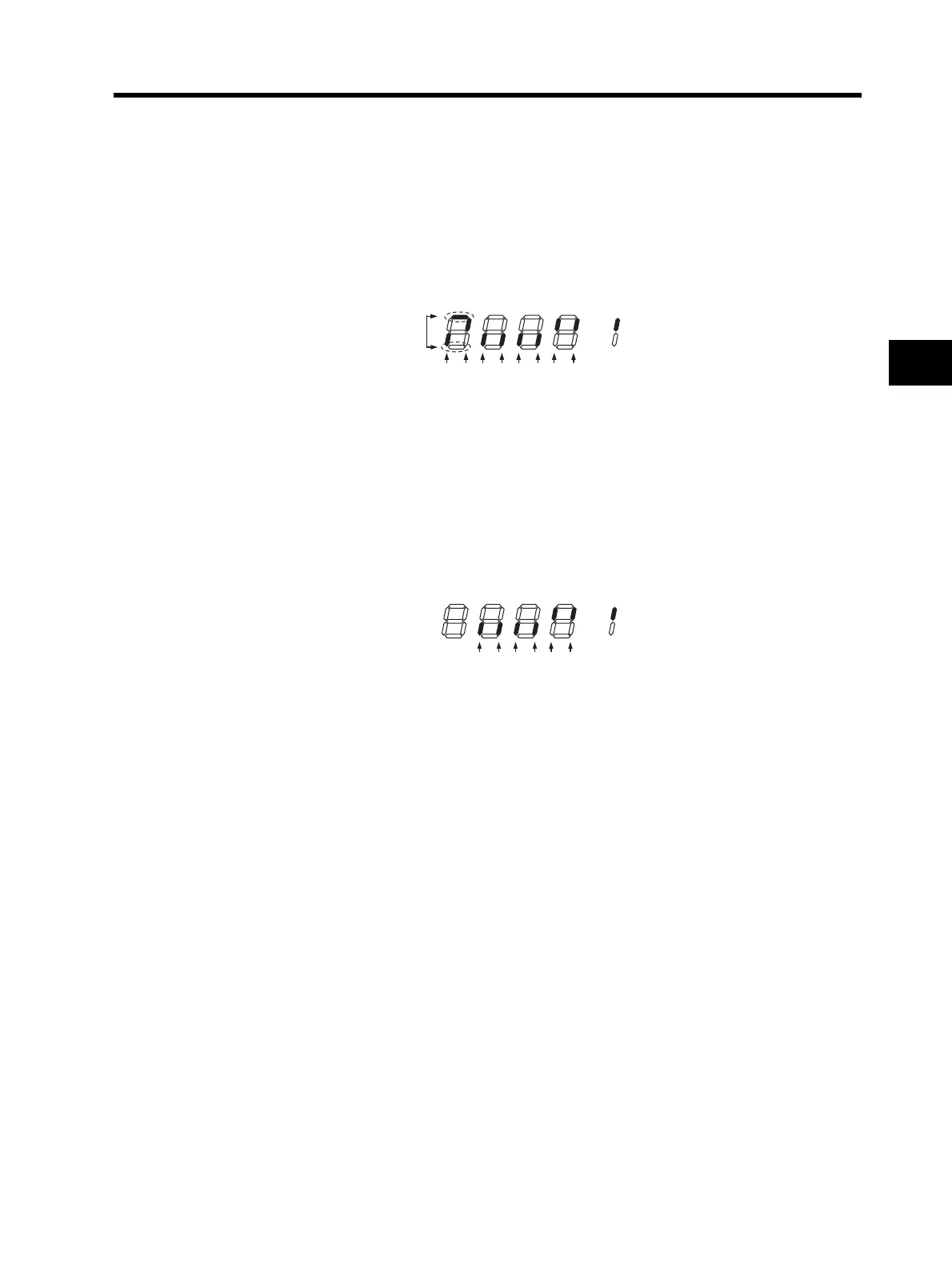

•The LED lighting position indicates the input status of the multi-function input terminals.
•The item that the built-in CPU recognizes to be "significant" is indicated as being ON.
This does not depend on the NO/NC contact setting.
(Example)
FW, Multi-function input terminals S7, S2, S1: ON
Multi-function input terminals S8, S6, S5, S4, S3: OFF
Multi-function Output Monitor [d006]
•The LED lighting position indicates the output status of the multi-function output terminals.
•This monitor displays the output status of the built-in CPU, not the control circuit terminal status.
(Example)
Multi-function output terminals P2, P1: ON
Relay output terminal MA, Multi-function output terminals P5, P4, P3: OFF
Output Frequency Monitor (After Conversion) [d007]
Displays a gain conversion value based on the coefficient set in frequency conversion coefficient
b086.
This monitor is used to change the unit of displayed data (e.g. motor rpm).
"d007 display" = "Output frequency (d001)" × "Frequency conversion coefficient (b086)"
(b086) 0.1 to 99.9 (Can be set in increments of 0.1.)
(Example)
To display 4-pole motor rpm:
Motor rpm N (min
-1
) = (120 × f (Hz)) / P (pole)
= f (Hz) × 30
As such, when b086 = 30.0, a motor rpm of 1800 (60 × 30.0) is displayed.
(Display)
0.00 to 99.99 : Displays in increments of 0.01.
100.0 to 999.9 : Displays in increments of 0.1.
100. to 9999. : Displays in increments of 1.
1000 to 3996 : Displays in increments of 10.
ON
OFF
ON
OFF
Multi-function
input terminals
S8 S7 S6 S5 S4 S3 S2 S1
(OFF) (ON)(OFF)(OFF)(OFF)(OFF)(ON) (ON)
: ON
: OFF
Display
ON
OFF
Multi-function output terminals
Relay output terminals
MA P5 P4 P3 P2 P1
(OFF)(OFF)(OFF) (OFF)(ON) (ON)
: ON
: OFF
Display
