Functions
Torque Monitor Function
•This function allows you to monitor an estimated motor output torque, when "sensorless vector
control", "0-Hz sensorless vector control", or "sensor vector control" is selected as the control
method.
•To use the monitor via the Digital Operator, select display code d012.
•To use the monitor with a signal from the control terminal block, refer to "Digital MP Terminal"
(page 4-106) or "Analog Output AM/AMI Terminals" (page 4-107).
•If "VC", "special VP", or "free V/f setting" is selected in V/f characteristics selection A044/A244, this
function is disabled, and the display or the output signal from the control terminal block is not
defined.
•For a torque monitor value of this function, the output torque at the rated frequency equivalent to
the motor's output rating during synchronous rotation is indicated as 100%.
•Since this function estimates output torque based on the motor current, the accuracy is approx.
20% when a motor with the same output capacity as the Inverter is used.
Preliminary Excitation Function (FOC)
•This function supplies excitation current from an input terminal to establish magnetic flux
preliminarily, when "03" (sensorless vector control), "04" (0-Hz sensorless vector control), or "05"
(sensor vector control) is selected in V/f characteristics selection A004/A244.
•Allocate 55 (FOC) to the desired multi-function input.
•The Inverter does not accept the RUN command unless the FOC terminal is turned on when FOC
is allocated.
•If the FOC terminal is turned off during operation, the Inverter goes into free-run status. If the FOC
terminal is turned on again, the Inverter restarts according to the setting of free-run stop selection
b088.
Parameter No. Function name Data Default setting Unit
A044/A244
V/f characteristics
selection
03: Sensorless vector
04: 0-Hz sensorless vector
05: Sensor vector (A244 is blank.)
00
C027
C028
C029
MP selection
AM selection
AMI selection
02: Output torque
11: Output torque (signed) (C028 only)
00
H003/H203 Motor capacity selection 0.20 to 160.0 Factory default kW
H004/H204
Motor pole number
selection
2/4/6/8/10 4 Pole

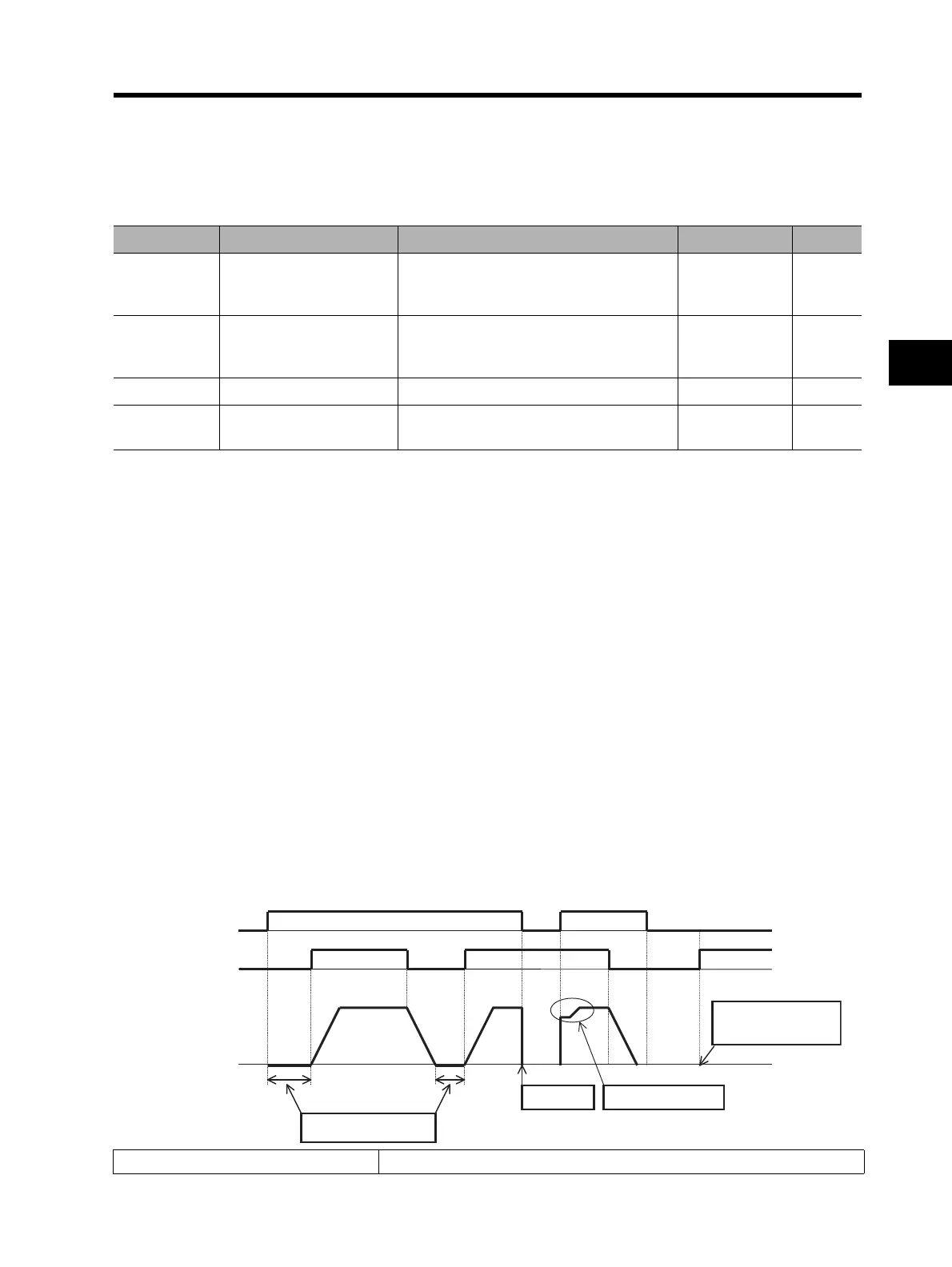

FOC
FW (RV)
Output frequency
Excitation current flows.
Free running
Restarts according to b088.
Does not operate because
the FOC terminal is OFF.
Related functions A044/A244, C001 to C008
