4-2 Function Mode
4
Functions
•To select an acceleration or deceleration pattern, use A097 or A098, respectively.
•You can set acceleration and deceleration patterns individually.
•If any item other than "Line" (A097/A098 = 00) is selected for the acceleration/deceleration pattern,
the acceleration/deceleration time is prolonged when this function is used with analog input (A001 =
01).

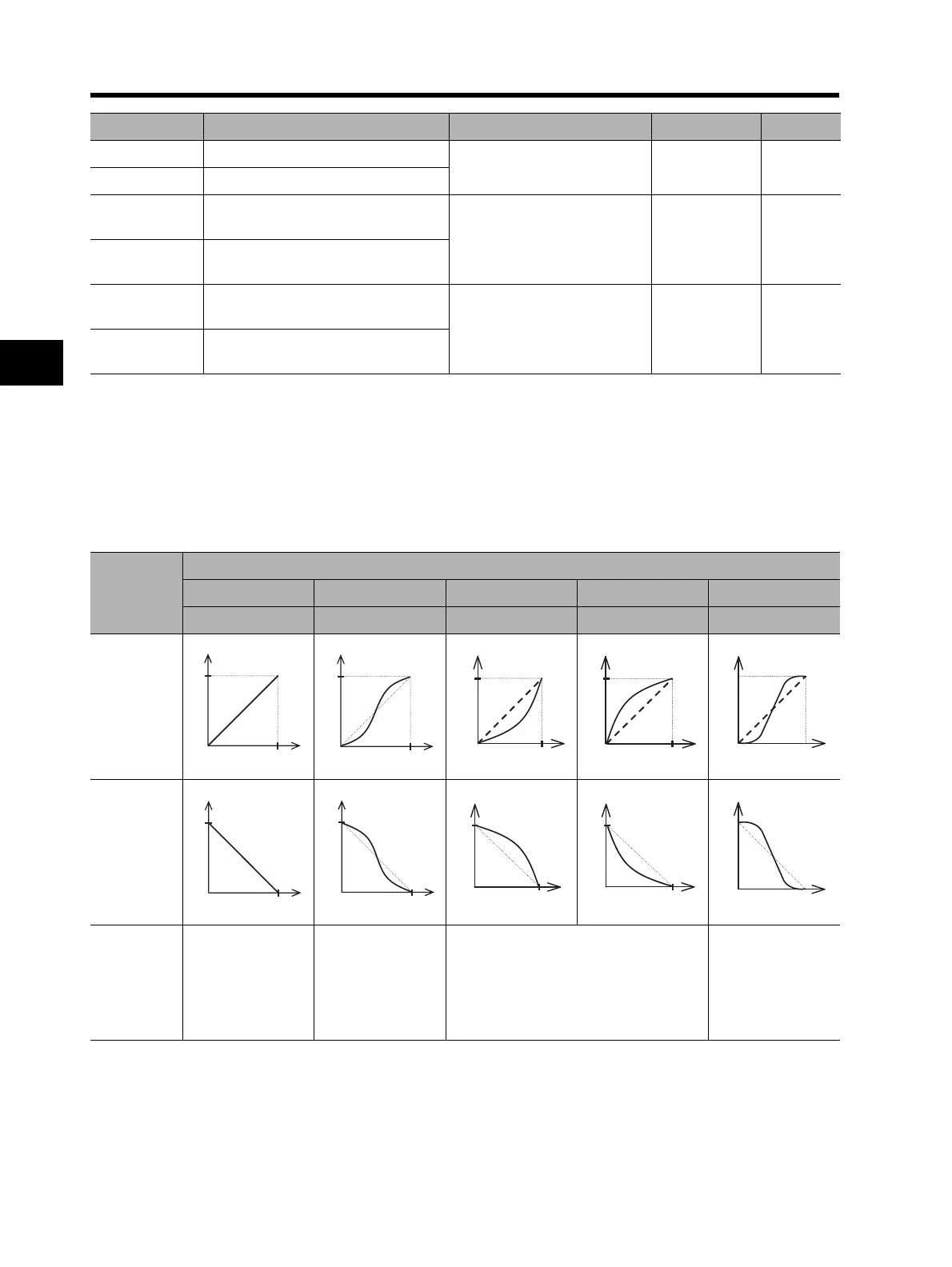

Pattern Selection
Select an acceleration/deceleration pattern with reference to the following table.
A131 Acceleration curve parameter
01 (small curve) to
10 (large curve)
02
A132 Deceleration curve parameter
A150
EL-S-curve ratio 1 during
acceleration
0 to 50 25 %
A151
EL-S-curve ratio 2 during
acceleration
A152
EL-S-curve ratio 1 during
deceleration
0 to 50 25 %
A153
EL-S-curve ratio 2 during
deceleration
Parameter No. Function name Data Default setting Unit
Parameter
No.
Set values
00 01 02 03 04
Line S shape U shape Inverted U shape EL-S shape
A097
(Acceleration)
A098
(Deceleration)
Description
Accelerates/
Decelerates
linearly before
reaching the set
output frequency
value.
Helps prevent the
collapse of cargo
on the elevating
machine or
conveyor.
Helps with tension control and roll break
prevention (for a winding machine, etc.).
Provides shockless
start/stop as with
the S pattern, but
the intermediate
section is linear.
Output frequency
Time
Output frequency
Time
Output frequency
Time
Output frequency
Time
