Omron Sysdrive RX Series - Page 368

7-19
7-3 Options
7
Specifications

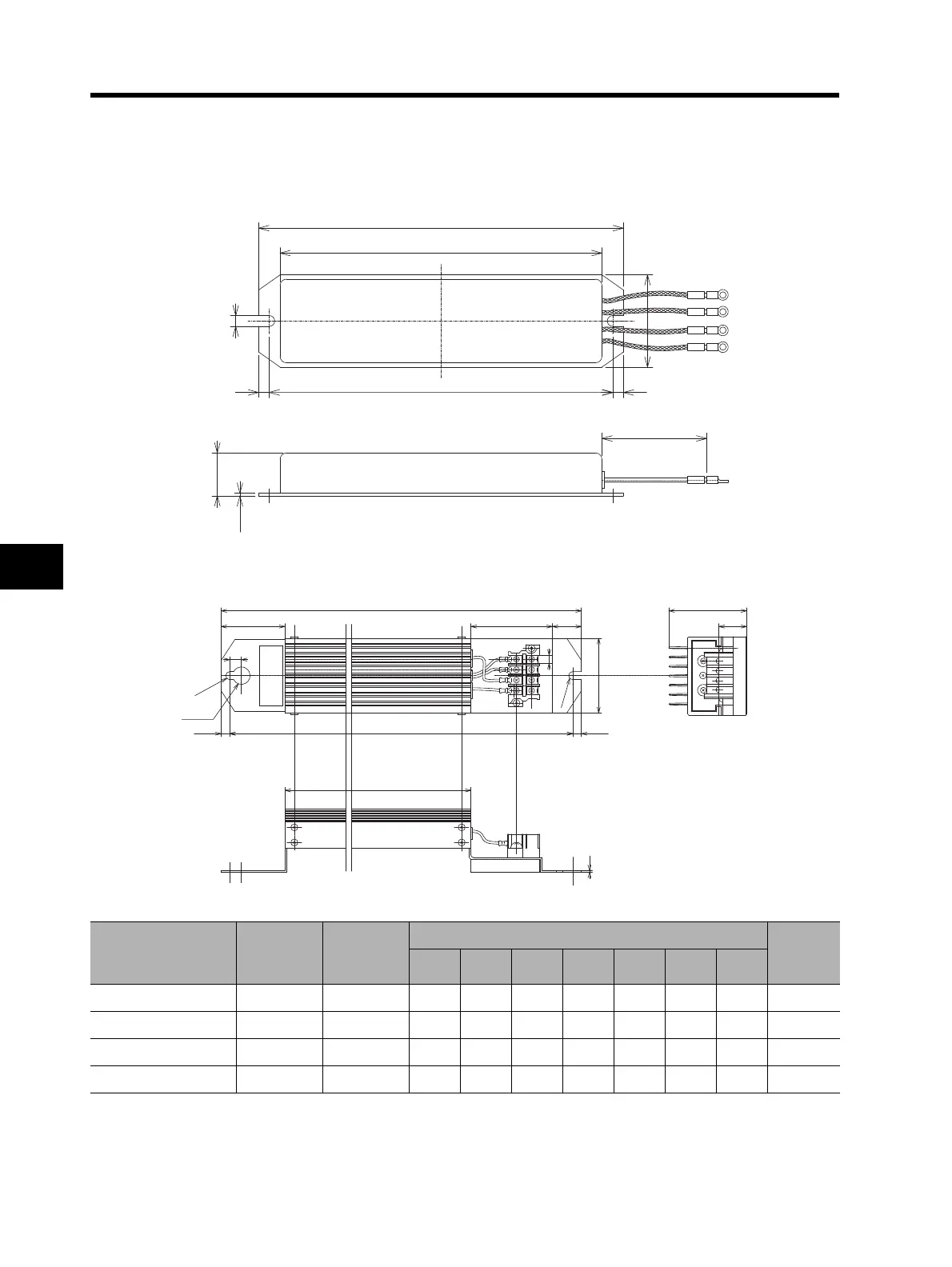

Braking Resistor (3G3AX-RBA/-RBB/-RBC)
Dimensional Drawing
3G3AX-RBA
3G3AX-RBB
170
2-4.2
20.5 MAX
1.2
43
150
160 5
500
5
L1
55 70 25
H1
H2
7.5
7
R3.5
R3.5
10
W
T
L3
L2
φ15
7.5
Model
Rated
capacity
(W)
Resistance
(Ω)
Dimensions (mm)
Weight
(kg)
L1 L2 L3 H1 H2 W T
3G3AX-RBB2001 200 180 310 295 160 67 12 64 1.6 0.97
3G3AX-RBB2002 200 100 310 295 160 67 12 64 1.6 0.97
3G3AX-RBB3001 300 50 470 455 320 67 12 64 1.6 1.68
3G3AX-RBB4001 400 35 435 422 300 94 15 76 2 2.85
