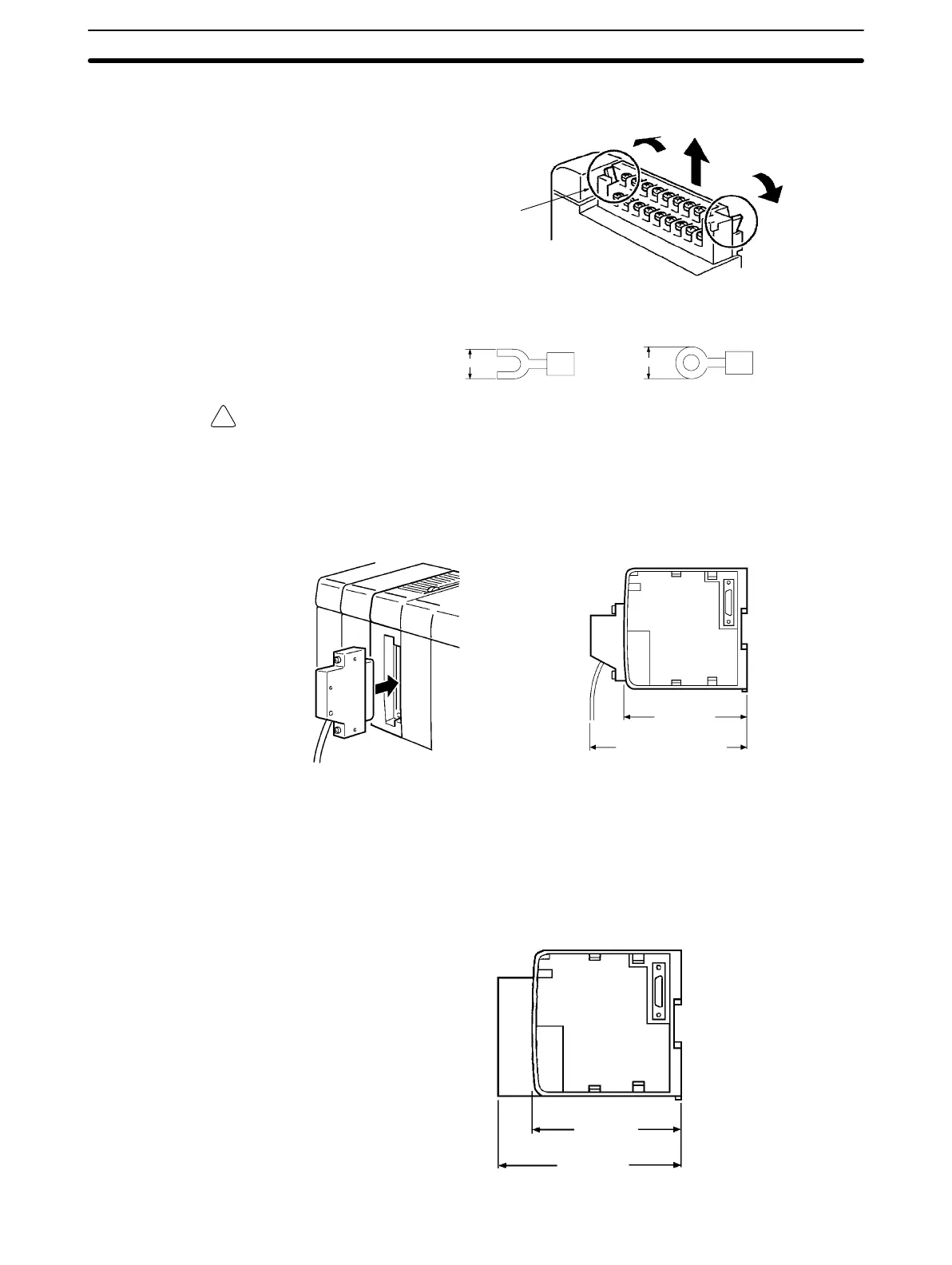

To remove the terminal block, push the connector tabs to the sides and lift the
terminal block off of the connector, as shown in the following diagram.
Open this tab as widely
as necessary.
Crimp connectors for I/O Unit wiring should be less than 6.2 mm wide (M3), and
the wire should be AWG22 to 18 (0.3 to 1.75 mm
2)
.
6.2 mm max.
6.2 mm max.
Caution Forked crimp connectors are required by UL and CSA standards.
2-3-3 Connector Type
Connect the cable to the I/O Unit connectors.
Connector Position Dimensions when Mounted
107 mm
Approx. 140 mm*
*Approximately 120 mm when
pressure-welded connectors are used.
2-3-4 CQM1-OC224 Dimensions
The following diagram shows the dimensions of a CQM1-OC224 I/O Unit. All
dimensions are in millimeters.
Dimensions when Mounted
107 mm
131.7 mm
I/O Units
Section 2-3
