36

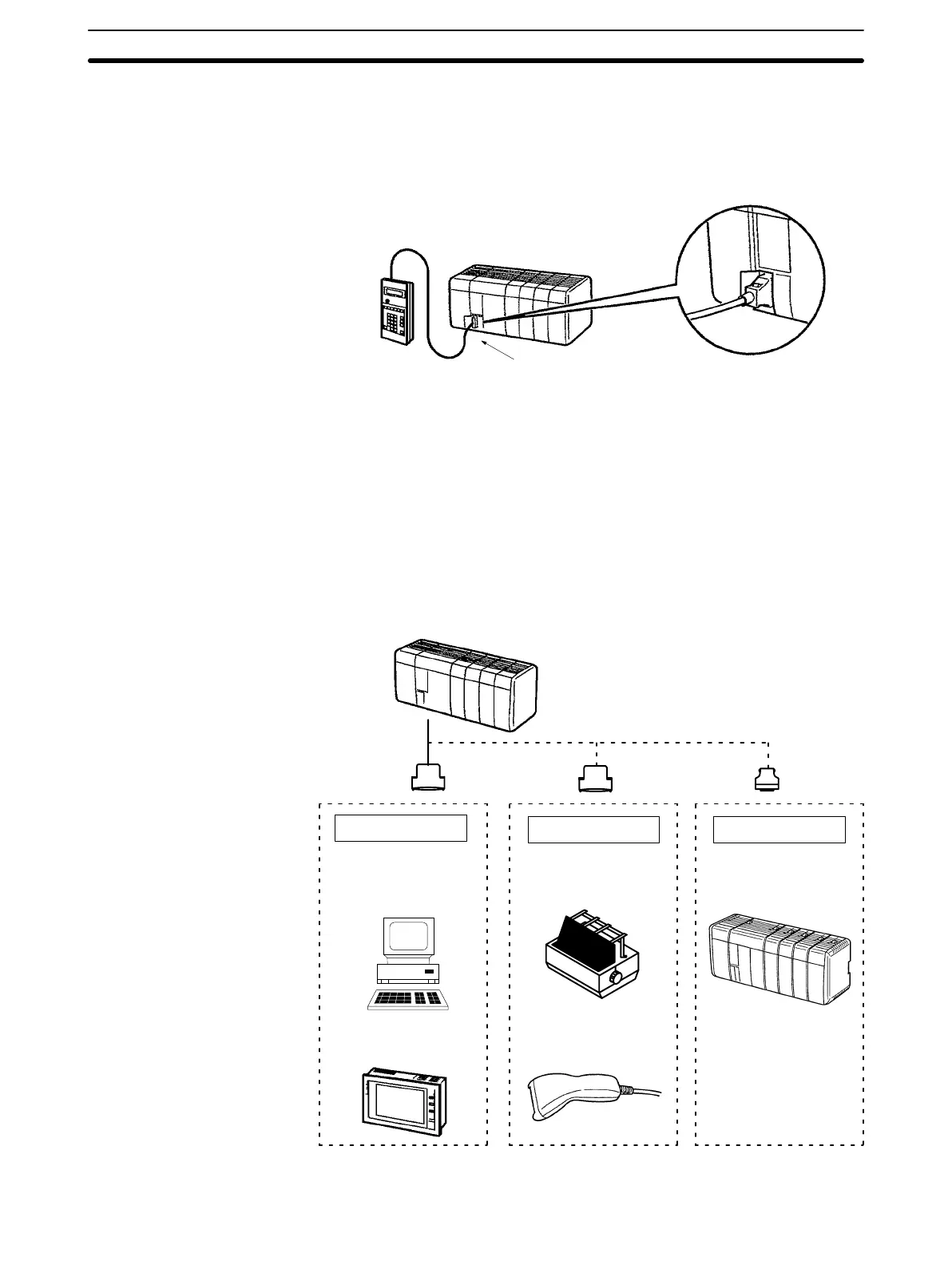

The CQM1 CPU Unit can be connected to a C200H-PRO27-E Programming
Console with a standard C200H-CN222 (2 m) or C200H-CN422 (4 m) Connect-
ing Cable. The CQM1 CPU Unit can be also connected to a CQM1-PRO01-E.
The CQM1-PRO01-E is provided with a 2-m Connecting Cable.
CQM1
Peripheral port
Programming
Console
2-5-9 RS-232C Port
RS-232C Connections The RS-232C port on the CQM1-CPU21-E/4j-EV1 can be connected to vari-
ous devices for communications with the PC via PORT INPUT and PORT OUT-
PUT instructions or for automatic data links with other CQM1 PCs (also
CQM1-CPU21-E/4j-EV1), as shown in the following diagram.
Personal computer
PT
Bar Code Reader
Printer
CQM1-CPU21-E/4j-EV1
RS-232C
Host link
1 to 1 link
Peripheral Device
Connection
Wiring and Connections
Section 2-5
