2

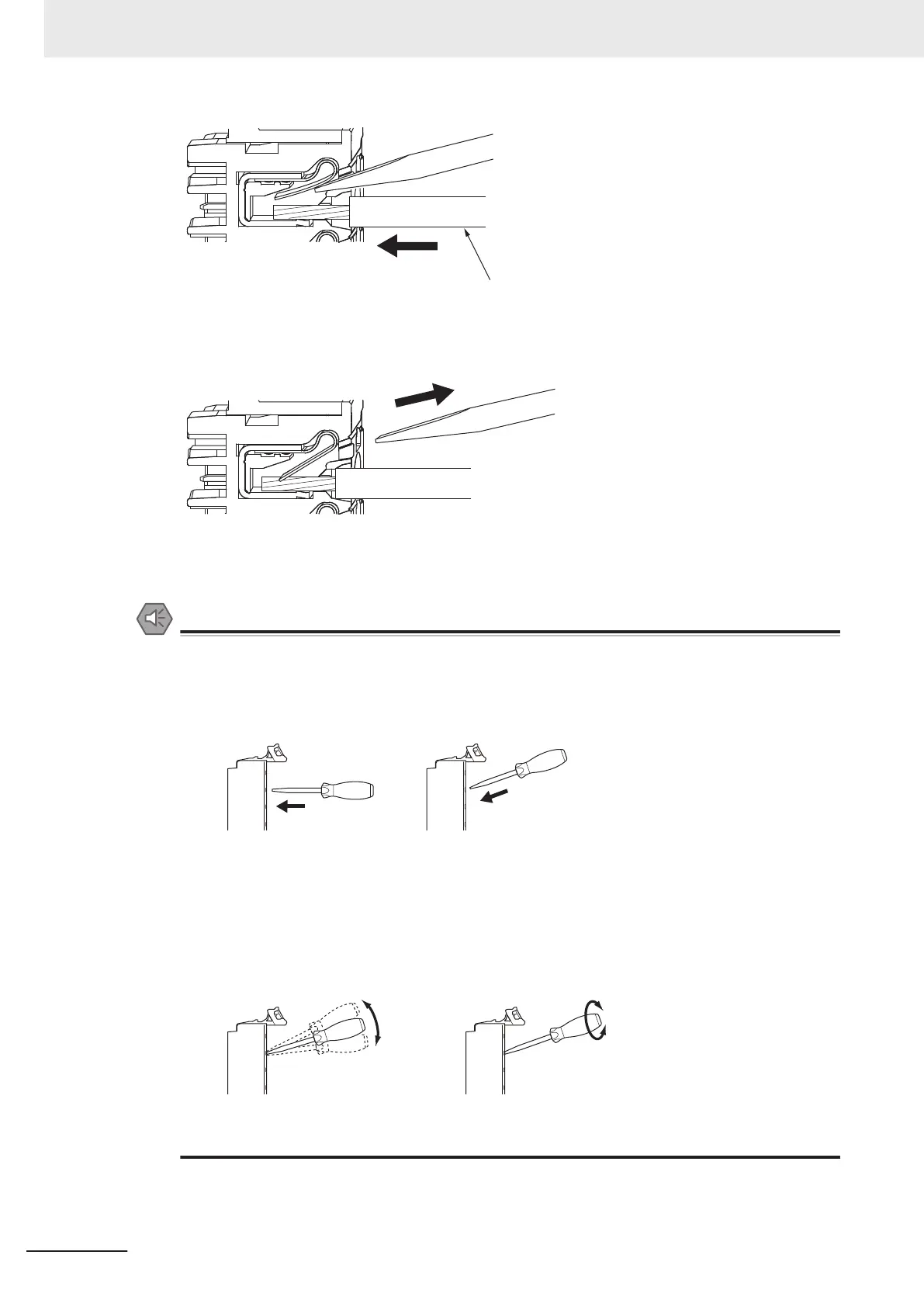

Twisted wire or Solid wire
3 Remove the flat-blade screwdriver from the release hole.
3
After you make a connection, lightly pull the twisted wire or the solid wire to make sure that the wire
is securely connected to the terminal block.
Precautions for Safe Use
• Do not press the flat-blade screwdriver straight into the release holes on a screwless clamp-
ing terminal block. Doing so may damage the terminal block.
NG OK
• When you insert a flat-blade screwdriver into a release hole on a screwless clamping terminal
block, press it down with a force of 30N or less. Applying excessive force may damage the
terminal block.
• Do not incline or twist the flat-blade screwdriver while it is in a release hole on a screwless
clamping terminal block. Doing so may damage the terminal block.
NG NG
• Make sure that all wiring is correct.
• Do not bend the cable forcibly
. Doing so may break the cables.
4 Installation and Wiring
4-50
NX-series System Units User's Manual (W523)
