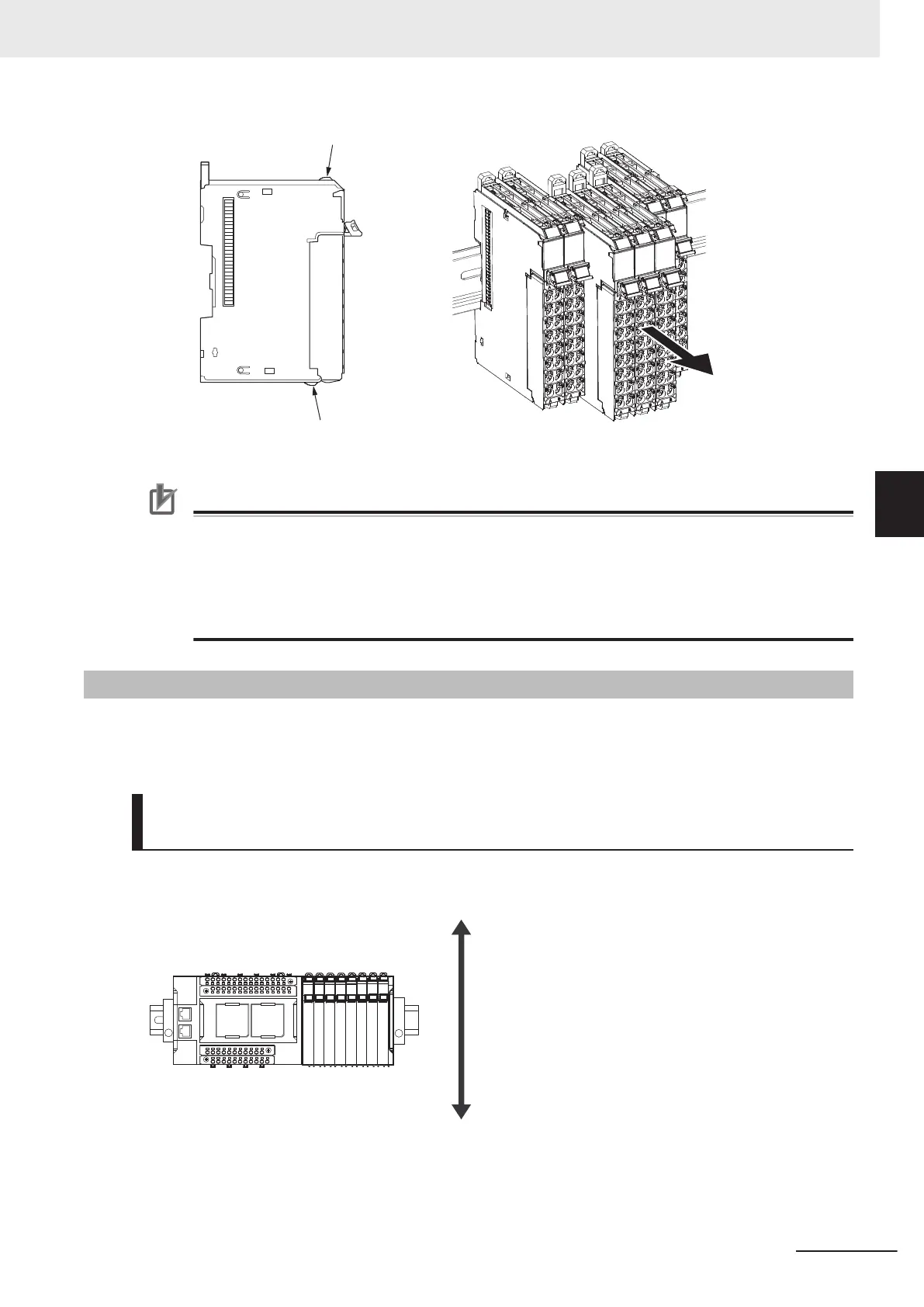

Protrusion for removing the Unit
Protrusion for removing the Unit
Precautions for Correct Use
• When you need to remove an NX Unit, always remove more than one NX Unit at a time, in-
cluding the Unit you need to remove. It is sometimes very difficult to remove only one NX Unit
by itself.
• Do not release the DIN Track mounting hooks on all of the NX Units at the same time. If you
release the DIN Track mounting hooks on all of the Units at the same time, all of the Units will
come off.
4-1-4
Installation Orientation
This section describes the installation orientation for each type of Unit that an NX Unit can be connect-
ed to.
Installation Orientation on the CPU Unit or Communication Control
Unit
The NX Unit can be installed only in the upright orientation.
However, there are restrictions on the specifications depending on the NX Units to be used.
For detailed restrictions, refer to descriptions of installation orientations and restrictions for each model
in the user’
s manuals for the NX Units and System Units that you will use.
4 Installation and Wiring
4-7
NX-series System Units User's Manual (W523)
4-1 Installing NX Units
4
4-1-4 Installation Orientation
To Next Page
