Precautions for Correct Use
Always use separate power supplies for the Unit power supply and the I/O power supply. If you
supply power from the same power supply, noise may cause malfunctions.
Additional Information
Refer to the hardware user’s manual for the Communication Control Unit for the designing of
the power supply to the CPU Rack of the Communication Control Unit.

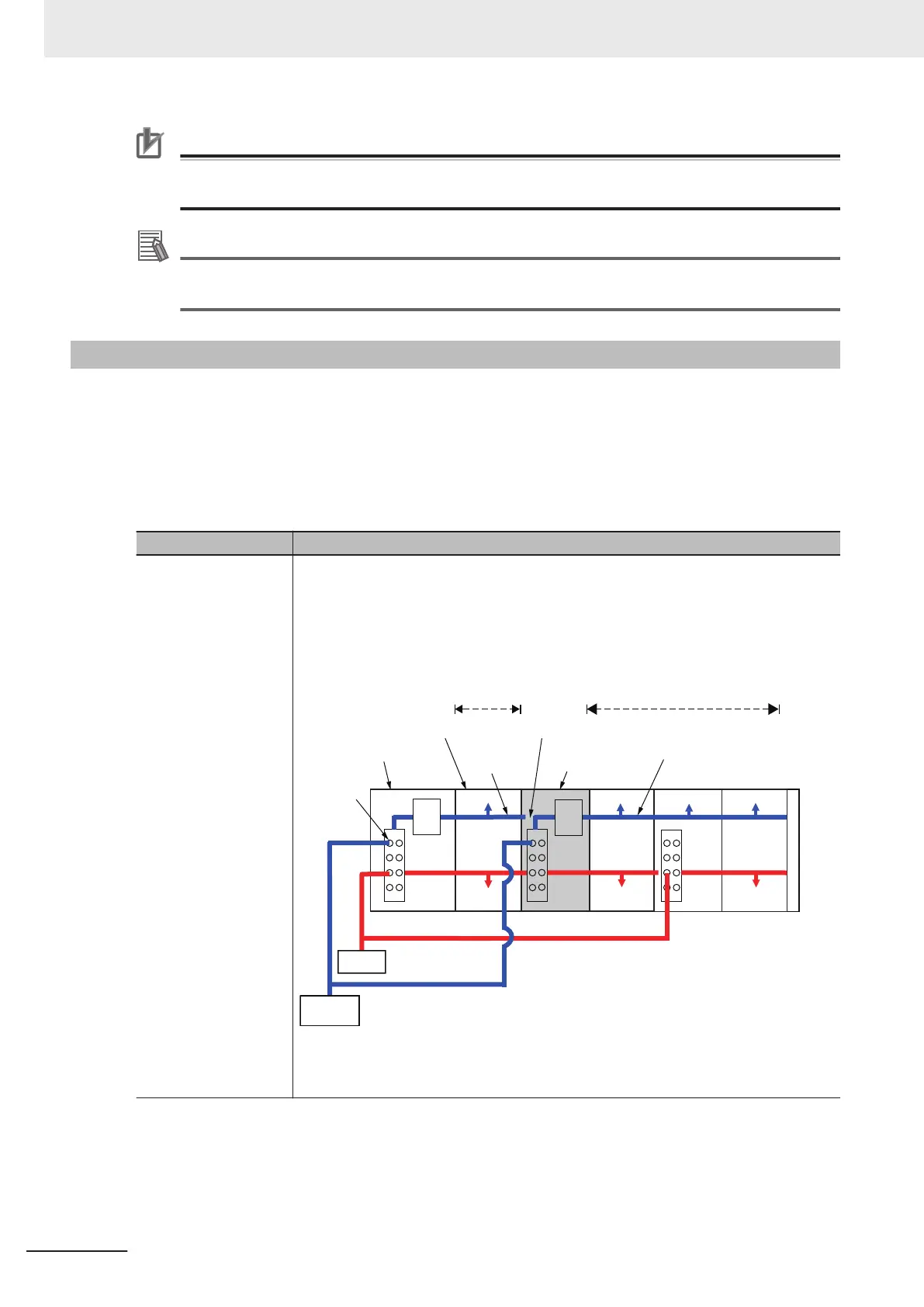

4-4-3
Power Supply-related Units and Wiring Methods
The Communication Control Unit supplies the NX Unit power and I/O power to the NX Units in the
CPU Rack.
There are the following types of NX-series power supply-related Units other than Communication Con-
trol Unit.
Refer to NX-series catalogs or OMRON websites, or ask your OMRON representative for information
on the most recent lineup of NX Units.
Unit name Function
Additional NX Unit
Power Supply Unit
This NX Unit provides NX Unit power supply.
This NX Unit is used when the total power consumption of the NX Units in the CPU
Rack exceeds the NX Unit power supply capacity of the Communication Control Unit.
Unit power
supply
Internal
power
supply
circuit
Unit power
supply
terminals
NX Unit
I/O power
supply
Internal
power
supply
circuit
The total power consumption
from the NX Unit power
supply is within the NX Unit
power supply capacity.
The total power consumption from
the NX Unit power supply is within
the NX Unit power supply capacity.
NX Unit
power supply
Additional NX Unit
Power Supply Unit
NX Unit power supply
Separated by Additional NX Unit Power Supply Unit
Communication
Control Unit
The I/O power supply for the Additional NX Unit Power Supply Unit is connected to the
NX Unit on the left through the NX bus connector.
4 Installation and Wiring
4-22
NX-series System Units User's Manual (W523)
