Omron Sysmac NX-PD1000 User Manual

Color Status Description
Green Lit The I/O power is supplied.
Not lit The I/O power is not supplied.
Appearance Change of the Indicators
The appearance of the indicators has been changed for models released in or before September 2018
with lot numbers that represent the date of or after September 20, 2018. See below for details on the
applicable models and the changes. Models that are not listed here have the appearance after the
change.
• Applicable Models
NX-PD1000, NX-PF0630, NX-PF0730, NX-PC0020, NX-PC0010, NX-PC0030, NX-TBX01
• Change Details
The shape of the light emitting part of each indicator has been changed from a square to a penta-
gon.

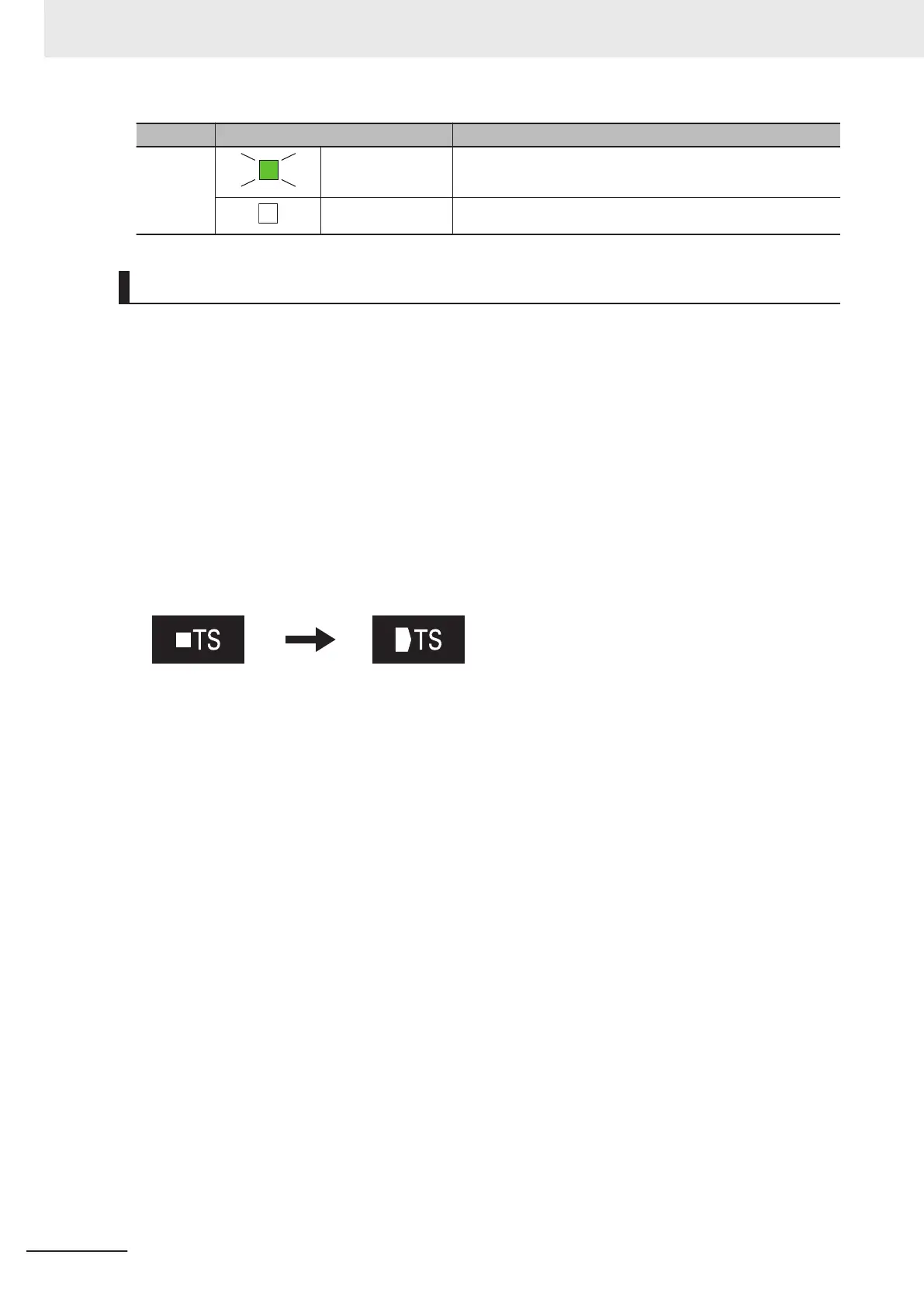

Below is an example of the TS indicator.
Before change After change
3 Part Names and Functions
3-8
NX-series System Units User's Manual (W523)

Omron Sysmac NX-PD1000 Specifications

General

Model	NX-PD1000
Category	Controller
Series	Sysmac NX
Power Supply	24 VDC
Operating Temperature	0 to 55 °C
Protection Rating	IP20
Short-circuit protection	Yes
Overload protection	Yes
Type	Power Supply Unit
Humidity	10 to 90% RH (non-condensing)
Shock Resistance	150 m/s2, 3 times each in X, Y, and Z directions
Weight	Approx. 130 g
