144
Section 6 Troubleshooting Flowcharts
RFID System
Operation Manual
Section 6
Troubleshooting

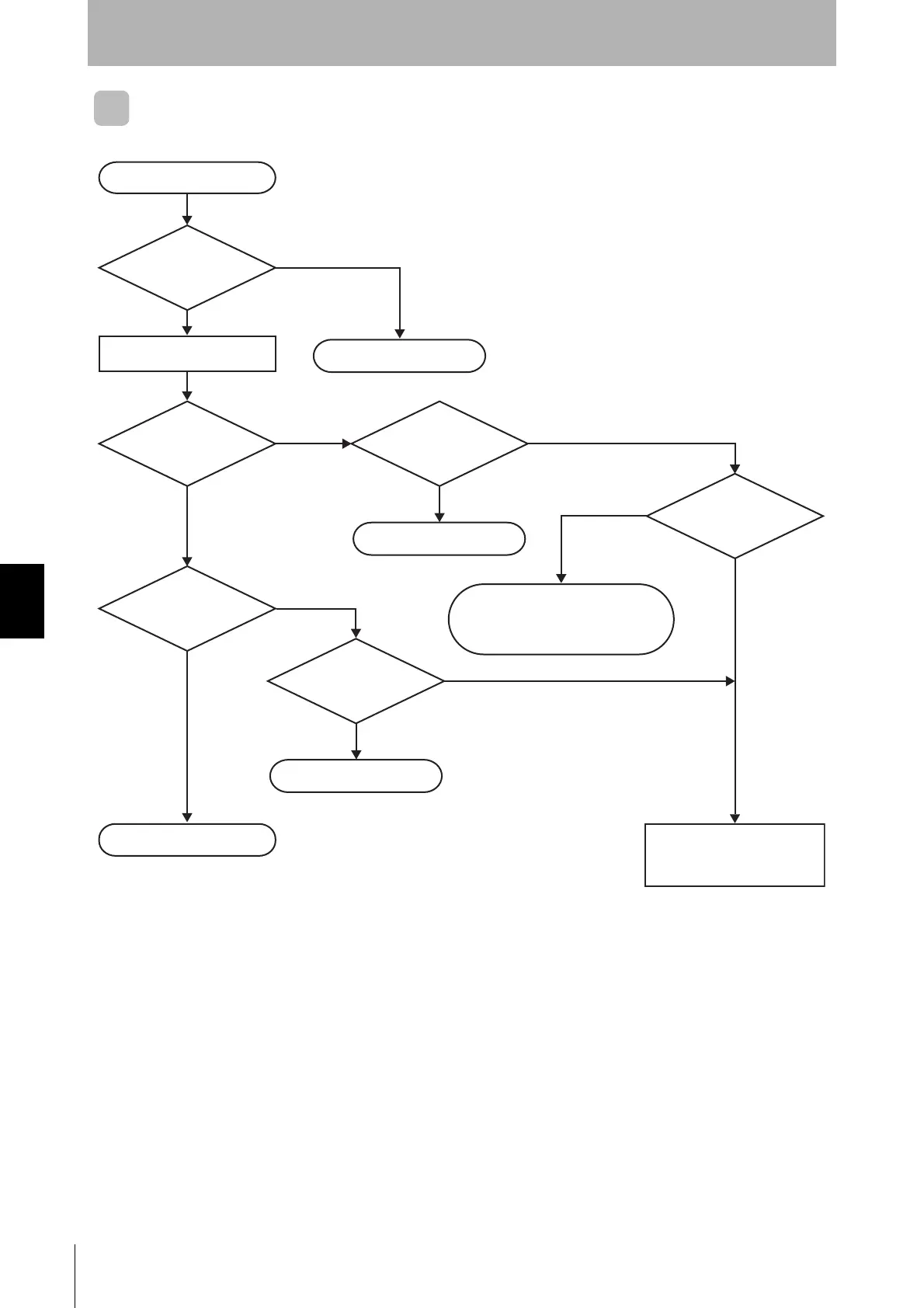

Systems Check Flowchart
RUN/RST indicator?
Rated voltage supplied
COMM indicator?
START
YES
NO
RUN/RST indicator?
Not lit
Lit
Lit green
Lit red
OK
Connect correctly
Rated voltage
supplied?
YES
NO
Not lit
Lit red
NO
Reset input ON?
YES
Reset input OFF
Replace ID Controller.
Connector and
cable connections
OK?
Power ON
Turn ON reset input.
Reset power.
Reset Data Carrier communications
conditions with SP command.
