Section 3 Switch Settings
RFID System
Operation Manual
Section 3
Preparing Communications
Switch Settings

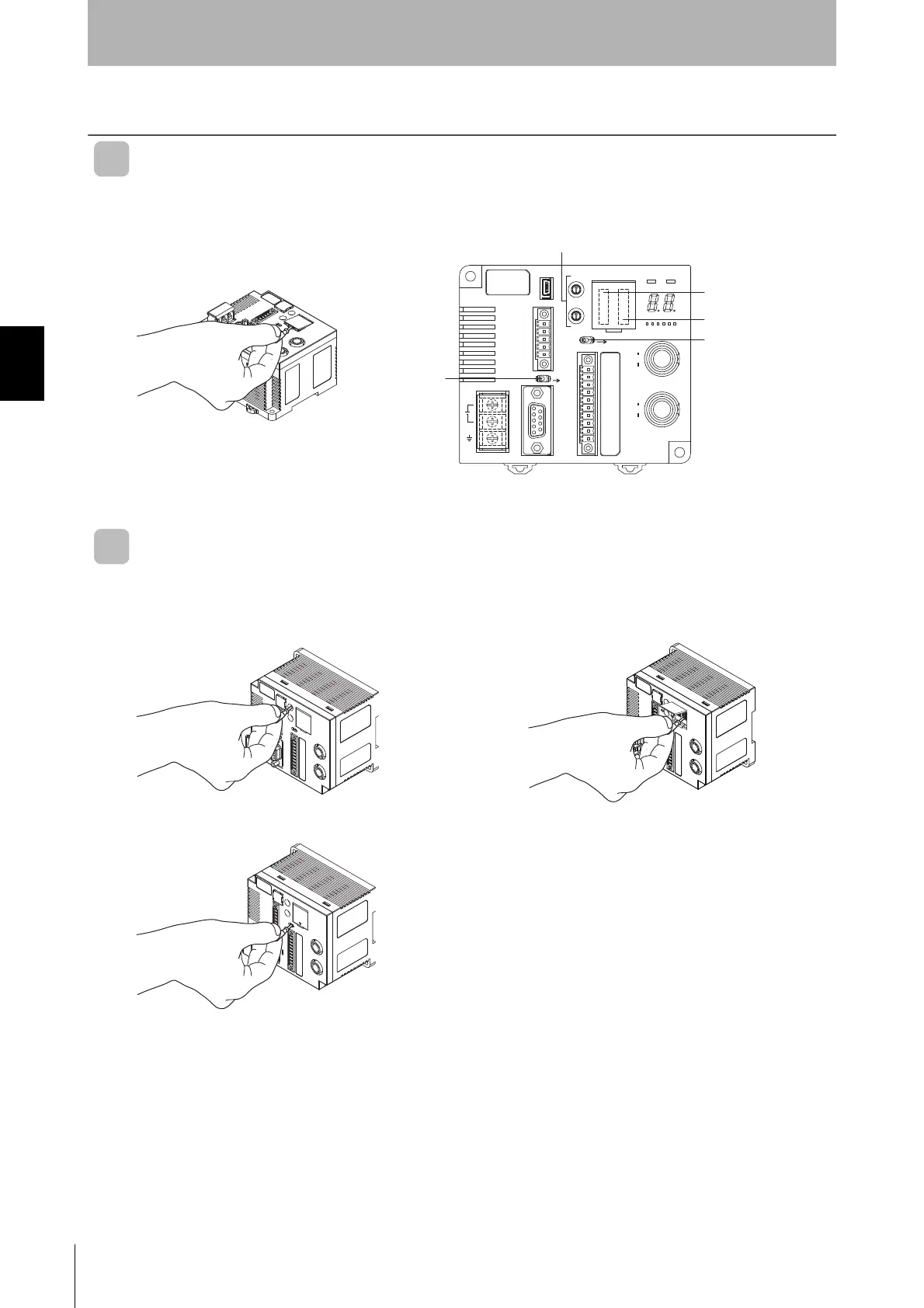

Opening the Cover
Insert the tip of a small flat-blade screwdriver into the notch in the cover and open the cover.
Setting the Switches
Set the switches as shown below.
DIP Switch SW3
DIP Switch SW4
Controller Number Switches (SW1 and SW2)
Mode Switch
(SW5)
Terminating
Resistance
Switch (SW6)
Rotary Switches (SW1 and SW2) DIP Switches (SW3 and SW4)
Toggle Switches (SW5 and SW6)

Omron V600 Series Specifications

General

Operating Frequency	13.56 MHz
Supported Standards	ISO 15693, ISO 18000-3
Read Range	Up to 70 mm (depending on tag and environment)
Power Supply	24 VDC ±10%
Operating Temperature	-10 to 55°C (with no icing or condensation)
Humidity	35% to 85% (non-condensing)
Communication Interface	RS-232C
