Omron V600 Series User Manual

RFID System
Operation Manual
Section 7 Characteristics According to Application Conditions
Section 7
Appendix
153
Characteristics According to Application Conditions

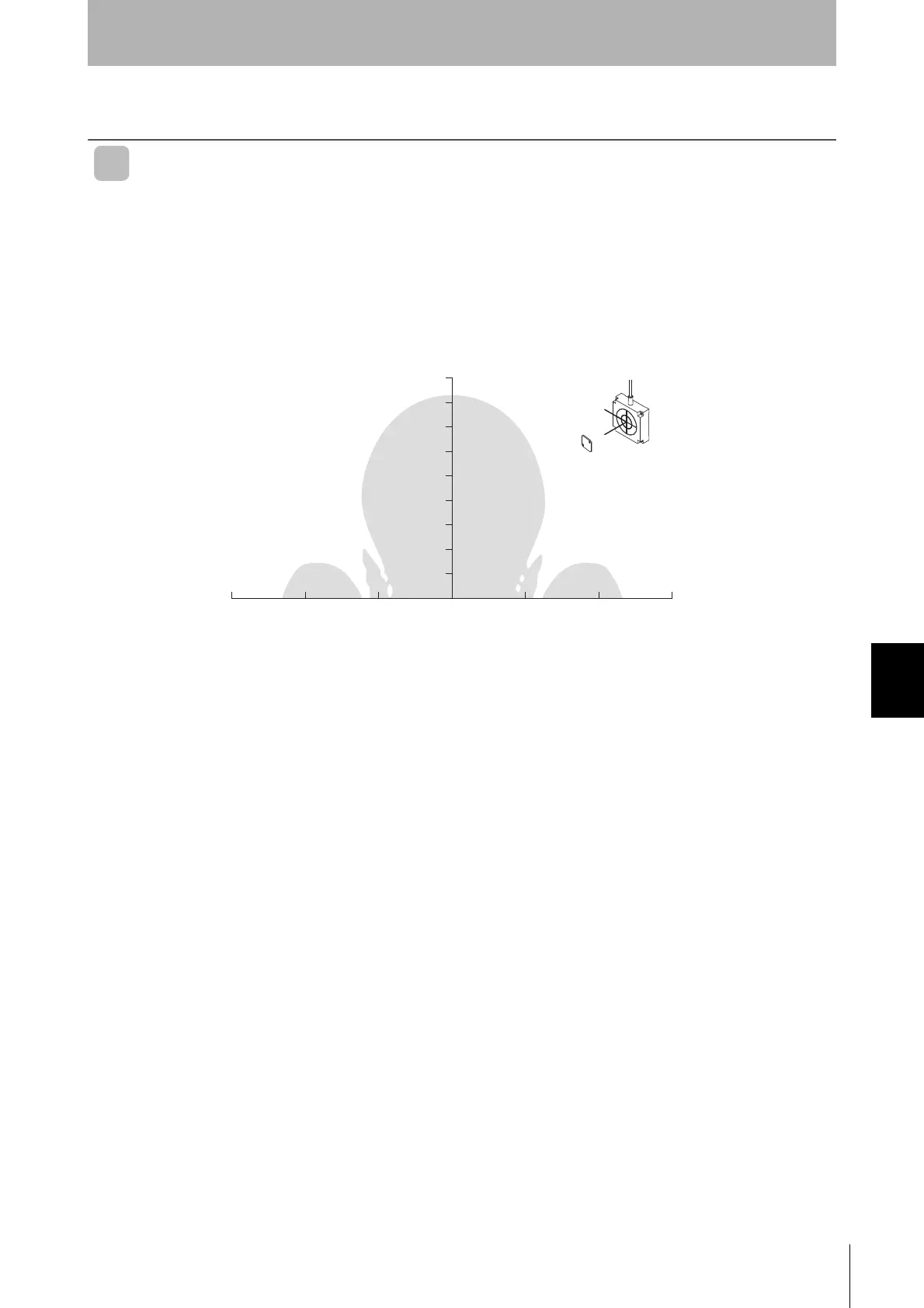

Communications Area Diagram (Reference)
The communications area of the V600-CA5D02 is shown below. The communications area depends
on installation and environment conditions.
• V600-H11 to V600-D23P66N
The communications diagram indicates the communications area consisting of a flat plane
perpendicular to the antenna and running through the center of the Read/Write Head. The surface of
the Data Carrier is parallel to the surface of the antenna.
5
10
15
20
25
30
35
40
45
−60 −40 -20 0 20 40 60
X
Y
Y
X
Unit: mm

Omron V600 Series Specifications

General

Operating Frequency	13.56 MHz
Supported Standards	ISO 15693, ISO 18000-3
Read Range	Up to 70 mm (depending on tag and environment)
Power Supply	24 VDC ±10%
Operating Temperature	-10 to 55°C (with no icing or condensation)
Humidity	35% to 85% (non-condensing)
Communication Interface	RS-232C
