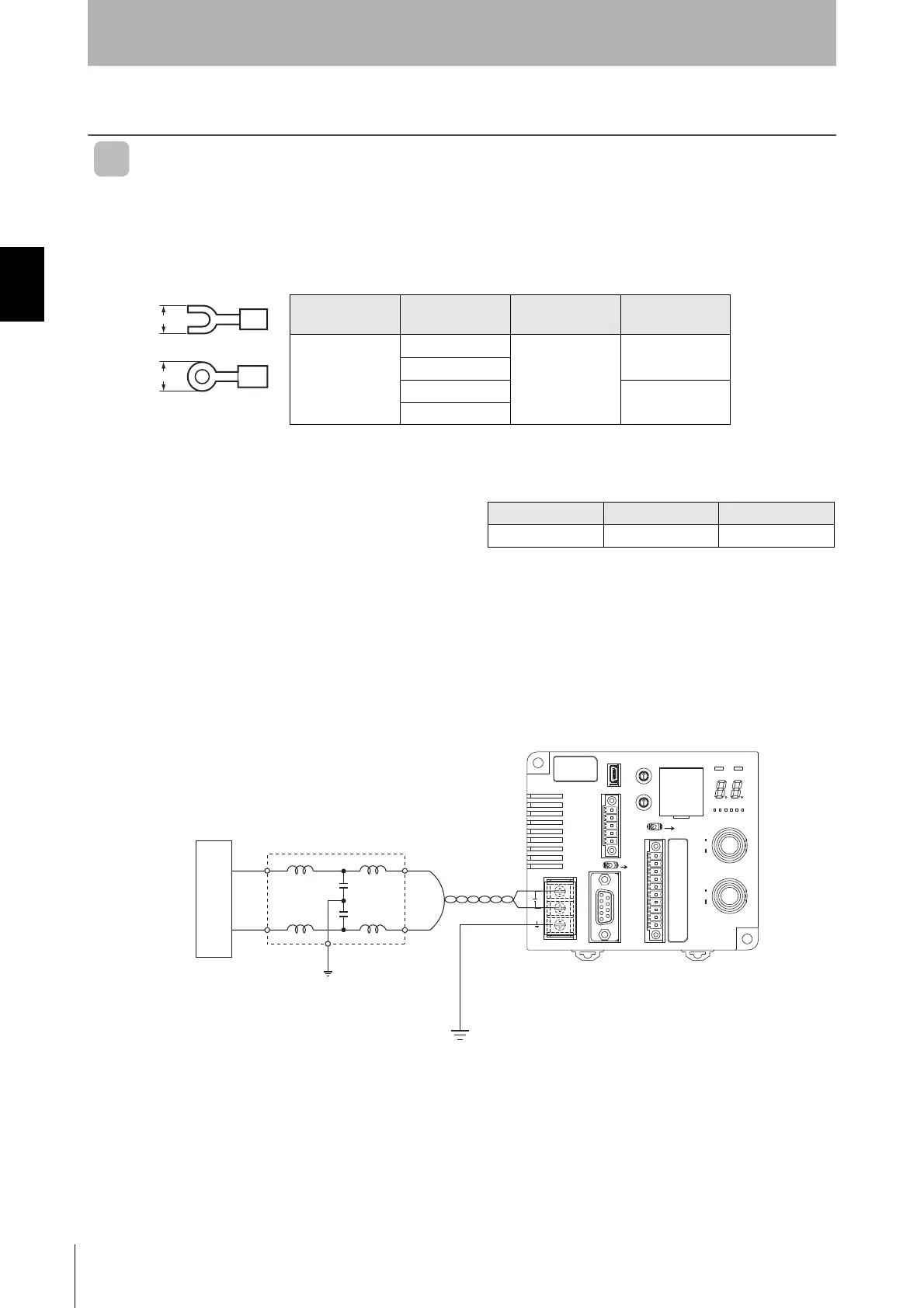

Wiring
Power Supply and Ground
• The power supply and ground terminals use M3 self-rising terminals. If using crimp terminals for
wiring, use ones with the following specifications.
Recommended tightening torque: 0.5 N·m
Examples of Applicable Crimp Terminals
Examples of Applicable Crimp Terminals
Manufacturer Model
Applicable wire
size
Shape
J.S.T. Mfg Co.
1.25-N3A
0.25 to 1.65 mm
2
(AWG22 to
AWG16)
Forked
V1.25N3A
1.25-MS3
Round
V1.25-MS3
6.4 max.
(for M3
terminals)
6.4 max.
 Supply 24 VDC to the ID Controller. Make sure that the
voltage fluctuation is within the range of 20.4 to 26.4
VDC (24 VDC+10%/15%).
 Recommended DC Power Supply: Compact, DIN-rail Mounting
(Manufactured by OMRON)
Model Output capacity Input current
S8VS-03024 1.3 A at 24 VDC 100 to 240 VAC
 Countermeasures against noise superimposed on
power lines is provided in the IC Controller. Supplying
power through a filter can be used to substantially
reduce ground noise.
Although the rated power consumption of the ID Controller is
1.3 A at 24 VDC (30 W), determine the capacity by taking the
inrush current into consideration.
 Use a twisted-pair cable for the power supply line.
 To improve noise immunity, ground to 100  or less and
use a dedicated ground.
 Use a class-2 power supply.
+24 V
0 V
Line filter
Ground to 100  or less
using a dedicated ground
DC power supply

Omron V600 Series Specifications

General

Operating Frequency	13.56 MHz
Supported Standards	ISO 15693, ISO 18000-3
Read Range	Up to 70 mm (depending on tag and environment)
Power Supply	24 VDC ±10%
Operating Temperature	-10 to 55°C (with no icing or condensation)
Humidity	35% to 85% (non-condensing)
Communication Interface	RS-232C
