Omron V600 Series User Manual

47
RFID System
Operation Manual
Section 2 Wiring
Section 2
Installation and Wiring
Read/Write Head Connection Port

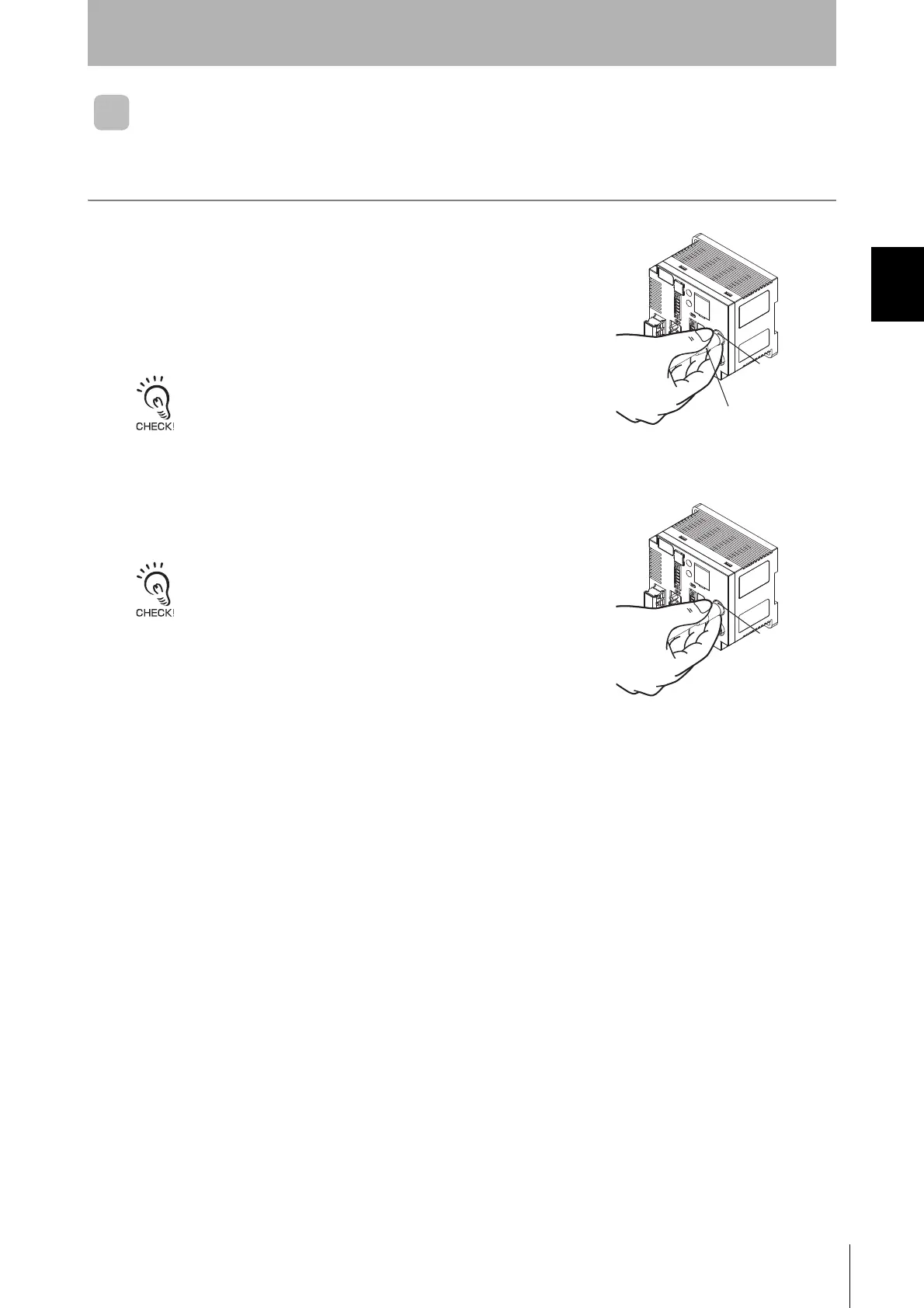

■ Inserting and Removing the Connector
1. Hold the rubber mold of the connector and insert the connector into
the mating connector on the ID Controller.
2. Push the connector straight in until it is locked.
The connector will not lock if it is pushed while holding the ring. Be sure to
hold the rubber mold.
3. To remove the connector, pull it straight out while holding the ring.
The connector must not be pulled while holding the rubber mold.
If an excessive force is applied to the cable, the cable may break or be dam-
aged.
Ring
Rubber mold
Ring

Omron V600 Series Specifications

General

Operating Frequency	13.56 MHz
Supported Standards	ISO 15693, ISO 18000-3
Read Range	Up to 70 mm (depending on tag and environment)
Power Supply	24 VDC ±10%
Operating Temperature	-10 to 55°C (with no icing or condensation)
Humidity	35% to 85% (non-condensing)
Communication Interface	RS-232C
